Commercial Slatted Stainless Steel Tube Shelving Unit

The Commercial Slatted Stainless Steel Tube Shelving Unit is an open-surface storage rack for commercial kitchens, dishwashing areas, food storage rooms, cold rooms, central kitchens and other B2B foodservice projects. Each tier uses parallel stainless steel tubes instead of a full sheet panel, allowing airflow and drainage around larger containers, cookware, trays, baskets and cleaned kitchen tools.

Slatted shelving is one of several structures available in SENFON's commercial stainless steel shelving and storage rack range. Solid shelving remains the most commonly supplied general-purpose option, while slatted construction is selected when the stored items and working environment benefit from an open tube surface.

Product Highlights

• Open slatted tube tiers: Parallel stainless steel tubes create an open storage surface rather than a continuous sheet panel.
• Airflow and drainage: Open spacing allows air and water to pass through more easily around suitable stored items.

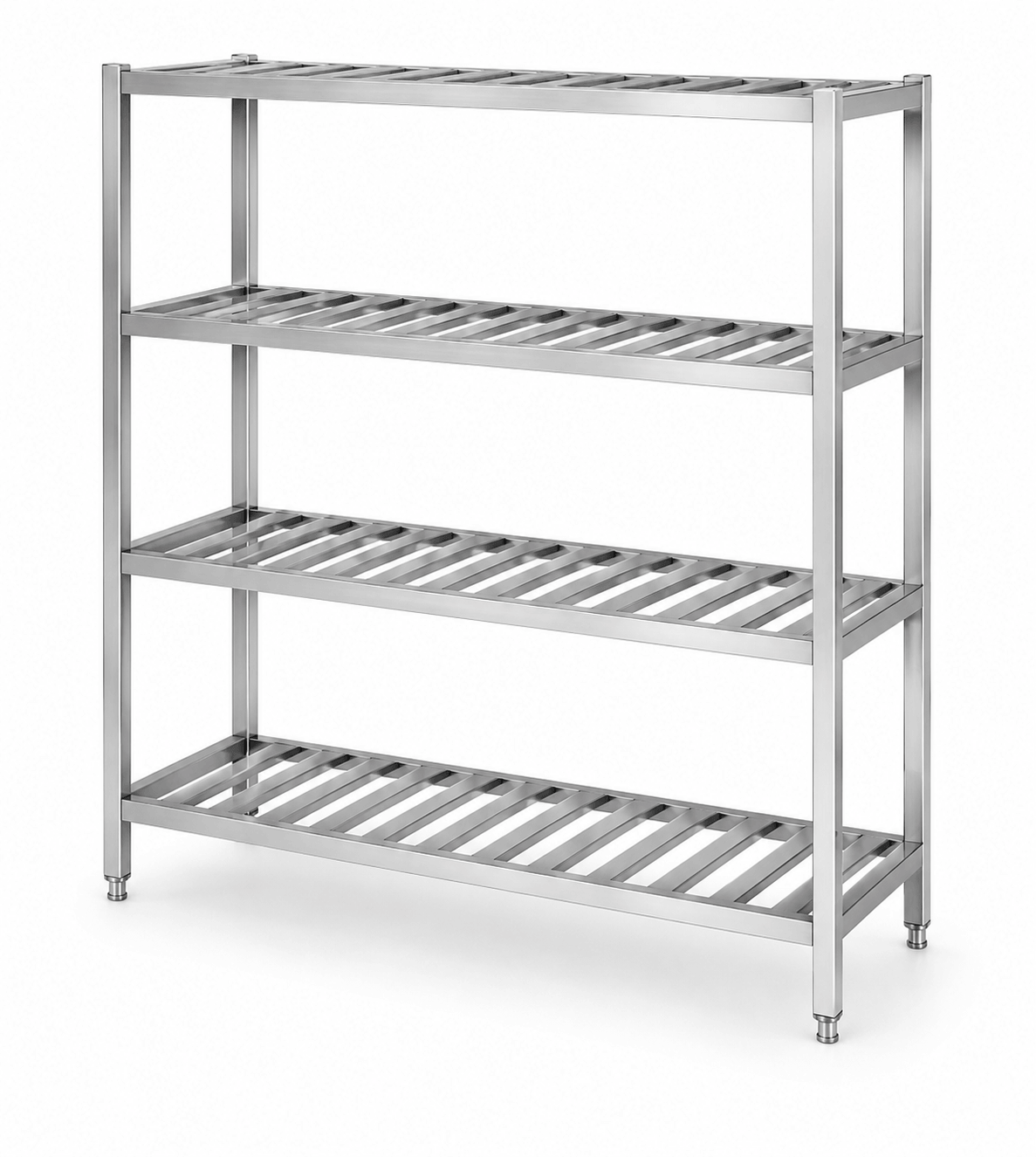

• 4-tier and 5-tier configurations: Four-tier and five-tier structures are common, while other tier quantities can be reviewed for project requirements.
• Common reference dimensions: Common shelving lengths include 1000, 1200, 1500 and 1800 mm, with 500 mm as a common depth reference.
• Reference heights: A four-tier rack may be around 1550 mm high and a five-tier rack around 1800 mm high, subject to the required clear spacing and project layout.
• Square or round posts: Upright posts can be produced with square-tube or round-tube structures.
• Fixed or adjustable tiers: Tier positions can be designed as fixed or adjustable according to the selected structure and storage requirements.
• Stainless steel reinforcement: Reinforcement can be designed according to shelf length, structural span and the buyer's required load.
• Custom tube spacing: Tube spacing can be coordinated with the dimensions of containers, trays, cookware or other stored items.
• Adjustable stainless steel feet: Stainless steel adjustable feet can be used to assist leveling on commercial floors.
• Knock-down structure: KD assembly is available for export orders to reduce packed volume and support local assembly.
• B2B load review: SENFON can review the structure against a customer's real load requirement and arrange load testing when required.

Common Dimensions and Tier Spacing

Commercial shelving should be specified by both overall rack dimensions and usable clear spacing. Common SENFON reference lengths include 1000, 1200, 1500 and 1800 mm, and 500 mm is a common depth. For overall height, a typical four-tier configuration may be around 1550 mm, while a five-tier configuration may be around 1800 mm.

These dimensions are reference combinations rather than fixed standards. Length, depth, height, tier quantity and clear spacing can be coordinated according to the stored items and the available room layout. A five-tier rack is only useful when the remaining clear spacing still fits the intended containers or equipment.

For a deeper explanation of shelf length, depth, tier spacing, structural span and load specification, review the Commercial Stainless Steel Shelving Dimensions & Load Capacity Guide.

Open Tube Shelf Structure

The key feature of this product is the open slatted shelf surface. Separate stainless steel tubes create gaps between supporting members, so the rack is particularly useful for larger items that can sit securely across the tube spacing while still benefiting from airflow and drainage.

Tube spacing should be selected according to the footprint of the stored items. Closely spaced tubes provide more support points, while wider spacing creates a more open surface. SENFON can review the tube spacing together with shelf length, expected load and the buyer's storage application before production.

Solid vs. Perforated vs. Slatted Shelving

Buyers can compare the Commercial Solid Stainless Steel Shelving Unit and the Commercial Perforated Stainless Steel Shelving Unit with this slatted model. For a structure-focused selection guide, see Solid vs. Perforated vs. Slatted Stainless Steel Shelving.

Load Capacity, Span and Reinforcement

This shelving unit should not be assigned one universal kilogram capacity. Load performance depends on material, actual tube or sheet thickness, shelf length and structural span, tube spacing, reinforcement, post dimensions, connections, bracing and how the weight is distributed across the tier.

SENFON uses stainless steel reinforcement where required, with the reinforcement arrangement reviewed according to the length of the rack and the buyer's expected load. For projects with a defined load requirement, the proposed structure can be reviewed and load testing can be carried out according to the customer's actual requirement.

Buyers should also distinguish an evenly distributed load from a concentrated load. One dense item placed in the center of a long shelf creates a different structural condition from several lighter items distributed across the full tier.

Material and Thickness Options

SUS201 and SUS304 are commonly used for commercial stainless steel shelving, while other stainless steel grades can be reviewed by component, environment and approved project specification when required. The current product range supports custom material thickness, including 0.7-2.0 mm options where appropriate for the selected tube structure and application.

Thickness should not be compared in isolation. Shelf span, tube section, reinforcement and post structure should be reviewed together with the required load and storage application.

Square-Tube or Round-Tube Posts

Upright posts can be produced with square tubes or round tubes. Both options can be coordinated with the selected shelf structure and can be developed for KD assembly where the design allows.

The post profile should be chosen together with shelf connections, bracing, dimensions and load requirements rather than treated as a purely visual choice.

Fixed and Adjustable Tier Options

Fixed-tier and adjustable-tier shelving can both be produced. Fixed tiers suit projects with a repeatable storage layout, while adjustable tier positions provide additional flexibility when buyers need to change clear spacing for different stored items.

For B2B orders, provide either the required clear spacing between tiers or the height of the tallest stored items so the tier arrangement can be reviewed before production.

KD Assembly and Export Packing

SENFON can supply this slatted shelving in a knock-down structure for export. KD construction reduces packed volume compared with a fully welded rack and supports container loading, distributor warehousing and local assembly.

Standard export packing is normally KD carton packing. Disassembled components and adjustable feet are protected inside the carton with cushioning materials such as air-cushion or bubble film to reduce rubbing and impact during transportation. Packing can be reviewed again for large sizes, mixed loading or project-specific shipping requirements.

Recommended Applications

Slatted stainless steel shelving is suitable for commercial kitchens, dishwashing areas, food storage rooms, cold rooms, preparation areas and back-of-house storage where the stored items are compatible with an open tube surface.

Typical stored items can include trays, baskets, cookware, containers, cleaned utensils, larger kitchen tools and foodservice supplies. Smaller items that need continuous bottom support may be better suited to a solid shelf.

Customization Options

B2B Procurement Notes

• Confirm overall length, depth and height together with the required clear tier spacing.
• State the type and dimensions of the items that will be stored.
• Confirm tube spacing if smaller containers or special storage items are involved.
• Provide the required load per tier and identify concentrated heavy items.
• Confirm square or round posts, fixed or adjustable tiers and adjustable feet.
• Material, thickness, reinforcement and load requirement should be reviewed together.
• KD carton packing is the normal export starting point for this shelving category.

Buyers with non-standard dimensions, storage-room layouts or project-specific load requirements can review SENFON's OEM/ODM Customization Services.

Related Shelving and Factory Resources

• Commercial Stainless Steel Shelving & Storage Racks
• Stainless Steel Shelving Dimensions & Load Capacity Guide
• Solid vs. Perforated vs. Slatted Shelving Guide
• Commercial Solid Stainless Steel Shelving Unit
• Commercial Perforated Stainless Steel Shelving Unit
• Commercial Wall-Mounted Solid Stainless Steel Shelf
• Commercial Stainless Steel Worktables & Cabinets
• OEM/ODM Customization Services
• Factory & Certifications
• Request a B2B Quotation

FAQ for B2B Buyers

• What is slatted stainless steel shelving?
  It uses separate stainless steel tubes to form an open shelf surface rather than a solid or perforated sheet panel.
• What sizes are commonly used?
  Common reference lengths include 1000, 1200, 1500 and 1800 mm, with 500 mm as a common depth. Four-tier racks may be around 1550 mm high and five-tier racks around 1800 mm high, with custom combinations available.
• Can tier spacing be adjusted?
  Yes. Both fixed and adjustable tier arrangements can be produced according to the selected structure and storage requirement.
• Can SENFON make square-post and round-post versions?
  Yes. Square-tube and round-tube posts can both be produced.
• How much weight can each shelf hold?
  There is no single universal capacity. Load performance depends on dimensions, span, thickness, tube spacing, reinforcement, posts, connections and load distribution. Customer-specified load testing can be reviewed when required.
• Can tube spacing be customized?
  Yes. Tube spacing can be coordinated with the stored-item footprint, shelf size and structural requirement.
• Can the shelving be supplied knock-down?
  Yes. KD assembly is available and is commonly used for export packing to reduce shipping volume.
• How is the shelving normally packed?
  Standard export orders normally use KD carton packing with cushioning materials such as air-cushion or bubble film around components and feet.

Request a Custom Quote

If you need commercial slatted stainless steel shelving, send SENFON the required length, depth, overall height, number of tiers, clear tier spacing, tube spacing, material, thickness, post type, required load, quantity, packing requirement and destination. Send your shelving specification to SENFON for a B2B quotation and structure review.
