Custom Hotel Kitchen Project: From 3D Drawings to Stainless Steel Fabrication

A large custom hotel kitchen project is not solved by selecting standard equipment from a catalog alone. The stainless steel workstations, washing areas, storage units and special fabricated pieces must match the designer's layout, service clearances and installation conditions. This Anhui hotel project is a practical example of how SENFON supports custom stainless steel kitchen equipment manufacturing from third-party drawings through finished fabrication.

The project was developed for a landmark hotel in Anhui, China. SENFON's scope focused on the commercial stainless steel equipment assigned to our manufacturing team. The client and design side supplied complex 3D models and multi-view technical drawings, giving our engineers a defined basis for dimensional review, manufacturing coordination and production.

Custom Hotel Kitchen Project Overview

Hotel kitchens contain many interconnected work zones: receiving, preparation, washing, storage, cooking support and service. Even when SENFON is responsible only for the stainless steel portion of a larger kitchen package, each fabricated unit must fit into the wider equipment plan. That makes drawing control and interface dimensions especially important for project orders.

• Project type: commercial hotel kitchen project
• Location: Anhui, China
• Manufacturing scope: project-specific commercial stainless steel kitchen equipment
• Design input: third-party 3D models and multi-view technical drawings
• Production model: drawing-based custom stainless steel fabrication
• Buyer profile: suitable reference for hotel contractors, kitchen designers, distributors and B2B project buyers

From 3D Drawings to Manufacturable Stainless Steel Equipment

The central challenge in this project was not simply producing stainless steel products. It was translating a designer's digital model into components that could be fabricated, assembled and positioned in the real kitchen. A drawing may show the intended geometry, but production also requires clear information about dimensions, material, thickness, reinforcement, joints, openings, supports and the relationship between neighboring equipment.

For this reason, SENFON reviewed the supplied drawings with the project team before production. Questions were resolved around the actual equipment interfaces rather than relying on product names alone. This workflow is especially important for OEM commercial kitchen equipment and project orders where standard catalog dimensions do not match the site.

For international B2B buyers planning a similar project, our OEM/ODM commercial kitchen equipment customization process explains how drawings, specifications and reference samples can be used as the basis for quotation and production review.

What Must Be Confirmed Before Custom Stainless Steel Fabrication?

Project accuracy depends on controlled specifications. For custom hotel kitchen equipment, the most useful RFQ and drawing package normally identifies the dimensions and construction of every item rather than using broad descriptions such as "heavy duty" or "commercial grade" alone.

• Overall length, depth and finished working height
• Backsplash or upstand dimensions where required
• Stainless steel grade by product or component
• Actual sheet and tube thickness by component
• Worktop, shelf and frame reinforcement requirements
• Sink bowl dimensions, drain locations and faucet openings for washing equipment
• Door, drawer, shelf and cabinet clearances
• Wall, floor and adjacent-equipment interfaces
• Welded, modular or knock-down construction requirements
• Quantity, packing method, destination and project schedule

For worktable planning, buyers can also use our commercial stainless steel worktable dimensions and project specification guide. For washing zones, the custom commercial pot sink design guide covers bowl size, depth, drains and other RFQ details.

Why Drawing-Based Manufacturing Matters in Hotel Kitchen Projects

Hotel kitchen layouts often contain long equipment lines and tight transitions between worktables, sinks, cabinets, walls and service equipment. A small dimensional error can affect alignment, access or installation. The practical objective is therefore not an unrealistic claim of "zero tolerance"; it is controlled manufacturing against the approved drawing and clearly defined project tolerances.

SENFON uses the approved project information as the manufacturing reference. Where a dimension, opening or construction detail is unclear, it should be resolved before production release. This is the same principle used for repeat B2B orders: once the buyer approves a configuration, the controlled drawing and specification become the basis for production consistency.

Commercial Stainless Steel Equipment for Hotel Back-of-House Areas

Custom hotel projects may combine different stainless steel equipment families in one coordinated layout. Depending on the approved equipment schedule, these can include preparation tables, enclosed work cabinets, sink tables, wall cabinets, shelving and other fabricated items. SENFON's relevant B2B product ranges include:

• Commercial stainless steel worktables and cabinets for preparation, storage and integrated workstations
• Commercial stainless steel sinks and sink tables for washing and food-preparation zones
• Stainless steel shelving and storage racks for wall-mounted and freestanding storage

These links lead to product families rather than implying that every model shown on the website was used in this specific Anhui project. Final project supply is always based on the buyer's approved equipment list and drawing.

Material, Thickness and Structure Should Be Specified Together

For commercial stainless steel kitchen equipment, material selection is only one part of the specification. SUS304 is commonly selected for wet and food-preparation environments, while other grades may be appropriate depending on the application and buyer requirement. The actual sheet or tube thickness, reinforcement, span, loading and connection method also affect the finished structure.

For project buyers, comparing quotations by a single headline material or thickness can therefore be misleading. A stronger procurement approach is to compare the same approved drawing, the same component-level specification and the same construction method across suppliers.

Installation Feedback and Real Project Verification

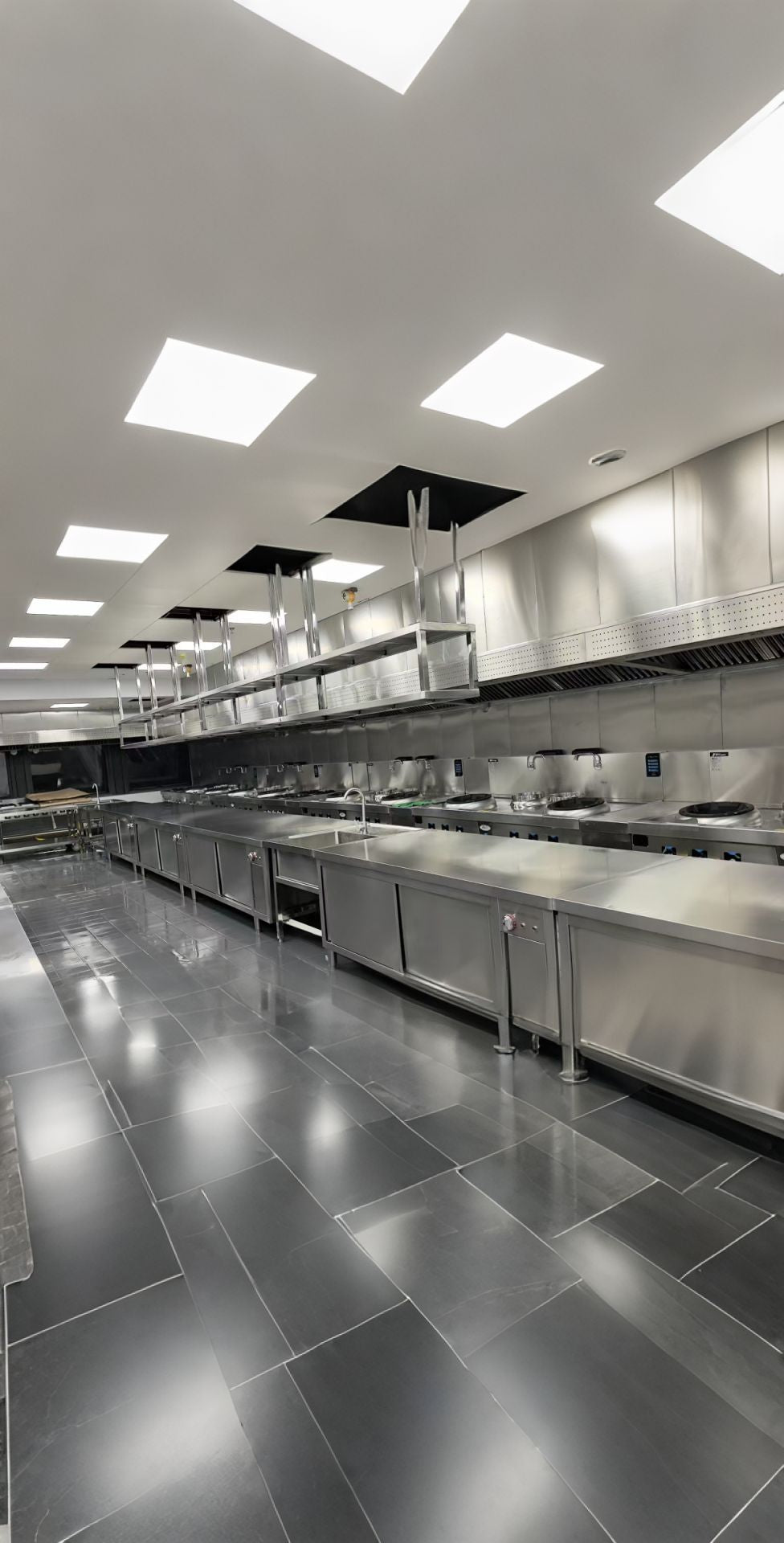

The photographs in this case study were provided from the project site and show the stainless steel equipment during the installation and handover stage. For B2B buyers, real installation feedback is valuable because it demonstrates more than a studio product image: it shows how fabricated equipment occupies the planned kitchen space and interfaces with the surrounding project environment.

The images are presented as project evidence for the equipment manufactured within SENFON's scope. Other appliances, systems or brands visible in the kitchen are not claimed as SENFON products unless specifically stated.

What B2B Buyers Can Learn from This Custom Hotel Kitchen Project

This case highlights a practical sourcing lesson: successful commercial kitchen stainless steel fabrication begins before metal is cut. The buyer, designer and manufacturer need a controlled information flow so that dimensions, materials, interfaces and construction details are agreed before production.

For importers, distributors and commercial kitchen contractors, a complete project inquiry should include the equipment list, dimensioned drawings, required material and thickness, quantity, destination and installation constraints. That information allows the manufacturer to review manufacturability and prepare a more meaningful quotation.

FAQ: Custom Hotel Kitchen Stainless Steel Fabrication

Can SENFON manufacture stainless steel kitchen equipment from third-party drawings?

Yes. SENFON supports drawing-based OEM/ODM and project manufacturing. The supplied drawings and specifications are reviewed before quotation and production, and unclear details should be confirmed before the approved drawing is released for manufacturing.

What files are useful for a custom commercial kitchen project?

Dimensioned 2D drawings, multi-view drawings, 3D models, equipment schedules and reference photos can all help. The most important requirement is that the final production dimensions, material, thickness, construction and interfaces are clearly confirmed.

Does SENFON manufacture complete cooking systems for every hotel project?

SENFON's core focus is commercial stainless steel kitchen equipment and related custom fabrication. A hotel kitchen may also contain specialized appliances and systems from other suppliers. The exact SENFON scope should be defined by the approved equipment list and quotation.

Can international distributors order custom hotel kitchen equipment?

Yes. SENFON works with B2B importers, distributors, wholesalers and project buyers. Export packing, knock-down structures and repeat-order specifications can be reviewed according to the product type, quantity and destination.

Planning a Similar Commercial Kitchen Project?

If you are sourcing custom stainless steel equipment for a hotel, restaurant, central kitchen or foodservice project, send SENFON your equipment list, drawings, dimensions, material requirements, quantities and destination. Our team can review the project and identify the next practical step for quotation and manufacturing.

View SENFON OEM/ODM customization capabilities or send your project requirements to SENFON.
