Commercial Stainless Steel Worktable Dimensions & Project Specification Guide

For B2B buyers, choosing the correct commercial stainless steel work table dimensions is not only about ordering one preparation table. In a complete commercial kitchen project, work tables are often installed in the same line as stainless steel sinks, sliding-door cabinets, dishwasher inlet tables, dishwasher outlet tables and other project equipment.

If the height, backsplash, tabletop structure or leg style is inconsistent, the complete equipment line may look uneven and leave visible gaps. SENFON manufactures commercial stainless steel work tables and cabinets according to buyer drawings, local market preferences and project layouts.

Depending on the market, buyers may use both work table and worktable when searching for stainless steel preparation equipment. This guide uses both expressions while focusing specifically on dimensions, working height, depth, backsplash, leg structure and project alignment rather than on one individual product configuration.

What Are Common Commercial Stainless Steel Work Table Dimensions?

There is no single commercial work table size that is correct for every country, distributor or commercial kitchen. Even buyers in the same market may require different dimensions according to local habits, available kitchen space, customer positioning, operator workflow and the equipment installed beside the work table.

The inch values above are approximate conversion references for international purchasing communication. Buyers serving inch-based markets should specify whether they require a true inch dimension or a metric SENFON reference rather than assuming rounded metric and inch sizes are identical.

How to Read Length × Depth × Height Correctly

Dimension-order misunderstandings are common in international purchasing. In some documents, the front-to-back measurement may be described as width, while other buyers or suppliers call the same measurement depth.

For work table drawings and RFQs, SENFON recommends identifying the order clearly as:

Length × Depth × Finished Working Height

For example, a specification of 1500 × 700 × 850mm means:

• 1500mm = left-to-right overall length
• 700mm = front-to-back worktop depth
• 850mm = finished floor-to-worktop height

If a backsplash is included, its height should normally be listed separately instead of being confused with the finished working height.

How to Choose Commercial Work Table Length and Depth

The correct length depends on the available installation space, number of operators and preparation workflow. A 1000mm or 1200mm work table can be suitable for compact preparation areas, while 1500mm and 1800mm models provide a longer operating surface for larger kitchens and production areas.

Longer tables also require the buyer to consider leg spacing, tabletop reinforcement and the lower storage structure. A longer work table should not automatically be assumed to use exactly the same structural design as a shorter model.

Depth must be considered together with kitchen aisle space, operator reach and adjacent equipment. A 600mm-deep work table can help preserve circulation space, while 700mm, 750mm or 800mm depths provide a larger working surface.

Buyers should also check the depth of nearby sinks, cabinets and other stainless steel equipment so visible front edges remain intentionally aligned.

What Is a Common Commercial Work Table Height?

Based on SENFON's export experience, 850mm and 900mm are among the frequently requested finished working heights for commercial stainless steel work tables.

However, the correct work table height should not be selected from one universal number. It can depend on:

• Local market habits
• Operator preference
• Preparation task
• Height of adjacent sinks and cabinets
• Countertop equipment
• Floor condition
• Caster height on mobile models

For a project supplier or distributor, one important advantage of coordinating worktables, sinks, cabinets and dishwasher tables from one confirmed drawing set is dimensional consistency.

SENFON can coordinate:

• Finished working height
• Tabletop structure and visible front edge
• Backsplash height and return depth
• Front alignment between different products
• Leg or cabinet-base style
• Stainless steel finish

Fixed Work Table Height vs Mobile Work Table Height

A mobile work table requires a different height calculation because the caster assembly adds vertical height below the frame.

The better specification sequence is:

1. Confirm the required finished working height
2. Select the caster and mounting arrangement
3. Confirm the caster's installed height
4. Calculate the required frame and leg dimensions
5. Verify the finished worktop height after assembly

Buyers should not simply add wheels underneath a fixed-table leg length unless the resulting worktop height has been checked.

For detailed caster, brake, floor and movement-route considerations, review the mobile stainless steel work table with casters.

Commercial Work Table Backsplash Dimensions and Custom Options

A common SENFON backsplash reference is approximately 100mm high with a 20mm return. The 20mm measurement refers to the folded return or depth of the backsplash profile, not a 20mm stainless steel sheet thickness.

The backsplash can be customized according to the project. Buyers may require:

• No backsplash
• Approximately 100mm rear backsplash
• Higher custom backsplash
• Lower rear upstand
• Custom folded return
• Alignment with an adjacent sink or cabinet

UK purchasing documents may use the term upstand, while some markets use splashback. Regardless of terminology, the actual height and return should be shown on the approved drawing.

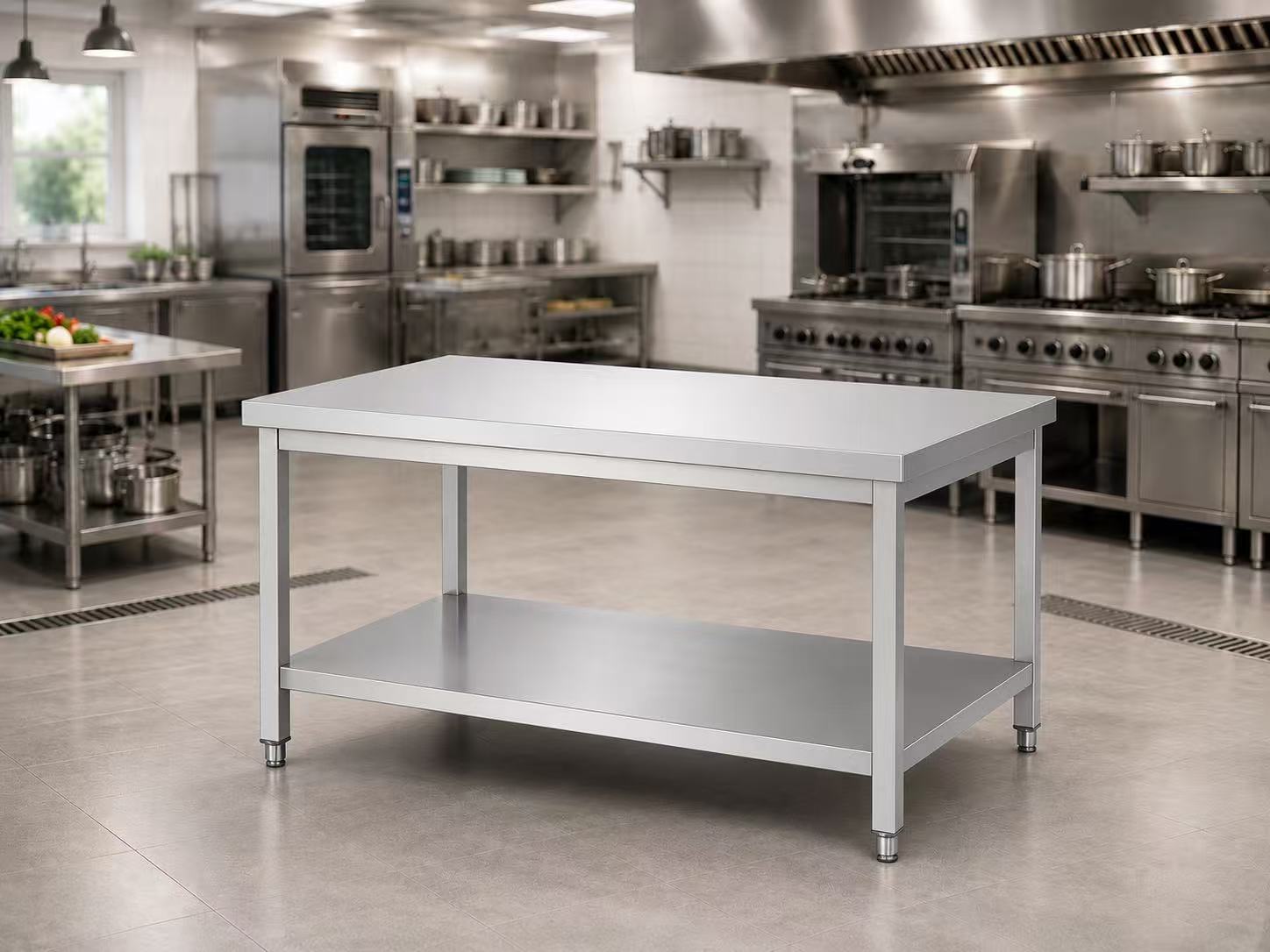

2-Tier vs 3-Tier Work Table Dimensions

Overall length, depth and height do not describe the full usable storage space below a commercial work table.

A 2-tier stainless steel work table with undershelf uses one lower shelf and normally provides one larger vertical storage opening.

A 3-tier stainless steel work table with two undershelves creates two separate storage openings. Where stored-item dimensions matter, buyers should confirm the usable clear height of both openings.

This means two work tables can have identical overall dimensions but provide very different usable lower storage space.

Overshelf Work Tables Need Additional Vertical Dimensions

A work table with upper shelves requires additional dimensions beyond length, depth and working height.

The drawing should identify:

• Finished worktop height
• Worktop-to-first-shelf clear height
• Clear height between upper shelves
• Overshelf depth
• Upright positions
• Overall finished height

These dimensions affect operator reach, sight lines, countertop-equipment clearance and the total vertical installation envelope.

For this configuration, review the stainless steel work table with double overshelf.

Round Tube Legs vs Square Tube Legs

Round and square tube legs are both widely used for commercial stainless steel worktables. Neither option is automatically correct for every market. The decision should consider appearance, complete table structure, packing, local customer preference and the approved specification.

For an approximately 1800 × 700mm worktable, Ø43mm round tube or 38 × 38mm square tube can provide balanced proportions within suitable SENFON configurations. Other tube sizes can be reviewed according to the required structure and project.

The packed-size difference between round-leg and square-leg structures may appear small on one unit, but small dimensional changes can become relevant across a full container load. Final container utilization should therefore be calculated from the approved packed dimensions of the actual order rather than from a general estimate.

Square tubes can also be supplied with different surface finishes. Some buyers may prefer a mirror-finished square tube, while others prefer a brushed finish. The required finish should be identified clearly because appearance and cost can differ.

Important: work table capacity does not depend only on outside tube dimensions. Tube wall thickness, leg spacing, undershelf structure, bracing, tabletop reinforcement, connection design and applied-load position must also be considered.

Three Commercial Work Table Tabletop Reinforcement Options

The visible stainless steel sheet is only one part of a commercial work table top. The reinforcement structure underneath affects flatness, operating comfort, sound, rigidity and cost. SENFON can review different structures according to the buyer's product positioning and project requirements.

1. High-Density Composite Board with Stainless Steel Support

For SENFON's standard worktable structure, high-density composite backing can be installed beneath the stainless steel tabletop together with stainless steel reinforcement.

This structure can provide:

• Improved tabletop flatness
• Additional worktop support
• Reduced vibration and hollow metallic sound
• More comfortable daily preparation
• A practical balance between structure and commercial cost

2. Mechanically Fixed Concealed Stud Reinforcement

A second option uses concealed mechanical fixing points installed beneath the stainless steel worktop. Corresponding stainless steel reinforcing sections can then be fixed to these points without placing conventional visible screws through the working surface.

This structure is more complex than the standard composite-backed option and can be reviewed where buyers require a more metal-focused concealed reinforcement system.

3. Aluminum Honeycomb Panel Reinforcement

For higher-specification projects, SENFON can review an aluminum honeycomb reinforcement structure beneath the stainless steel worktop.

This option can provide increased rigidity and flatness and is normally considered where the project or distributor requires a higher-specification finished worktop.

Do Not Compare Work Tables Using One Universal Load Figure

Two stainless steel work tables with the same external dimensions can have different structural performance because their material thickness, tube wall thickness, leg spacing, reinforcement, undershelf structure and connections may differ.

Buyers with a defined load requirement should provide:

• Required load
• Whether the load is distributed or concentrated
• Load footprint
• Position on the worktop
• Whether equipment remains permanently on the table

The complete structure can then be reviewed against the requirement. One generic kilogram figure should not be automatically applied across different lengths, depths and worktop structures.

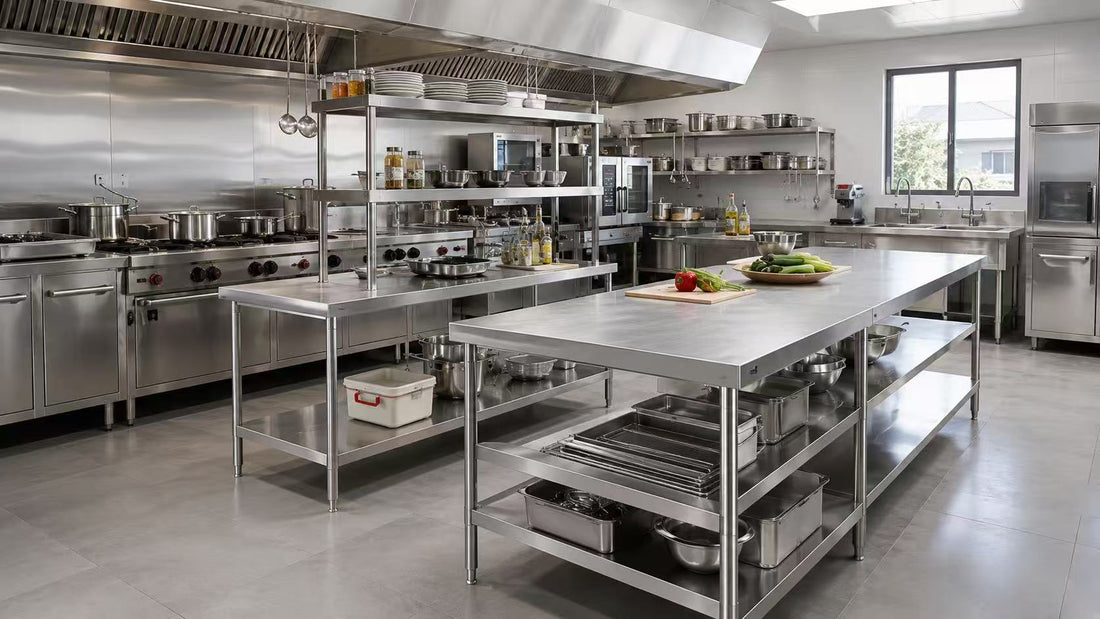

How to Keep Work Tables, Sinks and Cabinets Consistent

Commercial kitchen equipment is often purchased as one coordinated system rather than as isolated products. A project may include:

• Open-base work tables
• Work tables with undershelves
• Sliding-door worktable cabinets
• Drawer cabinets
• Commercial sinks
• Dishwasher inlet and outlet tables
• Pass tables
• Other custom stainless steel equipment

When these products are developed independently, the visible edge structure, finished height, backsplash dimensions, stainless steel finish and front alignment may not match.

By reviewing the equipment from one confirmed project drawing set, SENFON can coordinate these details before production.

Buyers planning enclosed lower storage can compare the stainless steel work table cabinet with sliding doors.

Drawing Confirmation Before Production

Different countries, distributors and individual commercial kitchen projects can require different dimensions and styles. SENFON does not assume that one catalog size is suitable for every buyer.

After the product requirements are confirmed, the production drawing can define:

• Overall length, depth and finished height
• Backsplash dimensions
• Round or square leg structure
• Tube size and finish
• Undershelf positions and clearances
• Adjustable feet or caster configuration
• Tabletop construction
• Cabinet, drawer or sliding-door layout
• Overshelf dimensions where applicable
• Relevant connections and assembly details

The buyer reviews and approves the drawing before production. This process helps prevent dimensional misunderstandings and allows the final product to reflect the local market or project requirement.

Common Commercial Work Table Specification Mistakes

Dimension Order Is Not Defined

A purchasing list may show three numbers without identifying whether they mean length × depth × height or another sequence. The dimension order should be stated clearly or shown on a drawing.

Leg Type Is Not Specified

A purchasing list may state the work table size without identifying whether the model should use round or square legs.

Square Tube Finish Is Not Confirmed

Even when square legs are specified, the required brushed or mirror-finished surface may be missing from the purchasing document.

Backsplash Dimensions Are Missing

Writing only “with backsplash” is not enough for controlled project production. The backsplash height and folded return should be identified.

Adjacent Equipment Is Not Compared

Work tables, sinks and cabinets confirmed independently may not align at the finished working height or front edge.

Shelf Clearance Is Missing

Overall dimensions do not show whether the buyer's containers or cookware will fit into the usable storage opening below the worktop.

Caster Height Is Ignored

Adding casters to a fixed-table structure can change the finished preparation height if caster height is not included in the dimensional calculation.

Overshelf Overall Height Is Not Checked

Upper shelves can interfere with operator reach, countertop equipment, wall services or available vertical space if the complete overshelf envelope is not reviewed.

Tabletop Reinforcement Is Not Defined

Two work tables with the same stainless steel grade and visible sheet thickness can still have different reinforcement, sound and operating performance.

Dimensions and KD Structure Should Be Confirmed Separately

The finished product dimensions define how the work table fits and operates in the commercial kitchen. KD design defines how the components are separated, connected, packed and assembled for export.

Buyers should first confirm the required finished dimensions and operating structure. The knock-down connection and packing system can then be designed around those confirmed dimensions rather than changing the kitchen requirement to fit a generic KD format.

For detailed knock-down structure, hardware, assembly and export-packing considerations, read the KD Stainless Steel Worktable B2B Buying Guide.

Commercial Work Table RFQ Checklist

For a more accurate quotation, buyers should provide:

Commercial Stainless Steel Work Table Dimensions FAQ

What are common commercial stainless steel work table dimensions?

Common SENFON reference lengths include 1000mm, 1200mm, 1500mm and 1800mm. Common depths include 600mm, 700mm, 750mm and 800mm. These are reference dimensions rather than universal standards.

What is a common commercial work table height?

Based on SENFON's export experience, 850mm and 900mm are among the frequently requested finished working heights. Final height should match local requirements, operator workflow and adjacent equipment.

Is a 600mm work table approximately 24 inches deep?

Yes. 600mm is approximately 23.6 inches, so it is close to the 24-inch class. Buyers should specify whether the actual production requirement is 600mm or a true 24-inch dimension.

Is a 750mm work table approximately 30 inches deep?

750mm is approximately 29.5 inches. Buyers serving inch-based markets should confirm whether they require a 750mm metric model or a true 30-inch model.

What backsplash size is commonly used?

A common SENFON reference is approximately 100mm high with a 20mm folded return. Both dimensions can be customized according to the project.

Should I choose round or square work table legs?

Both structures are available. Suitable SENFON configurations commonly use approximately Ø43mm round tube or 38 × 38mm square tube, but actual wall thickness, table size, reinforcement and connection design should be considered together.

Do mobile work tables use the same leg dimensions as fixed tables?

Not necessarily. Casters add installed height, so the frame and leg dimensions should be calculated around the required finished worktop height.

Do 2-tier and 3-tier work tables need different dimension information?

Yes. A 2-tier table should define its single lower storage clearance, while a 3-tier table should define both usable lower shelf openings where storage height matters.

What additional dimensions are required for a work table with overshelf?

In addition to the base table dimensions, buyers should confirm worktop-to-first-shelf clearance, shelf-to-shelf clearance, overshelf depth, upright positions and overall finished height.

Should KD packing determine the finished work table size?

No. Finished dimensions should be selected according to the kitchen and operating requirement. The KD structure and packing system should then be designed around those confirmed dimensions.

Can SENFON customize commercial work table dimensions?

Yes. Length, depth, working height, backsplash, leg structure, lower shelves, cabinets, overshelves, caster configurations and other dimensions can be reviewed according to buyer drawings and project requirements.

Contact SENFON for Custom Work Table Projects

If you are sourcing stainless steel work tables, preparation tables, worktable cabinets or a complete commercial kitchen equipment line, SENFON can review the project according to your drawings, purchasing list and market requirements.

For non-standard specifications, visit SENFON OEM/ODM customization services.

Buyers evaluating production capability can also review SENFON factory and quality information.

Send the required dimensions, material, thickness, backsplash, leg style, tabletop reinforcement, quantity and destination through the SENFON B2B project inquiry page.
