Commercial Stainless Steel 3-Tier Worktable with Two Undershelves

3-Tier Stainless Steel Work Table with Two Undershelves

This commercial 3-tier stainless steel work table combines one preparation worktop with two lower undershelves, creating three functional levels within one compact kitchen footprint. Compared with a work table using only one lower shelf, the additional storage level helps separate trays, containers, cookware and frequently used preparation supplies into different zones.

SENFON supplies this three-tier worktable for overseas distributors, wholesalers, commercial kitchen equipment suppliers and project buyers. Buyers can specify the overall dimensions, clear height between both lower shelves, square or round legs, flat top or rear backsplash, stainless steel grade, actual thickness by component, tabletop reinforcement and knock-down export structure.

International buyers may describe this structure as a 3-tier stainless steel work table, work table with two undershelves, commercial prep table with two shelves or multi-level preparation table. Whatever terminology is used, the two usable shelf openings should be defined clearly on the approved drawing.

For other preparation and storage configurations, review the commercial stainless steel work tables and cabinets range .

Why Choose a Work Table with Two Undershelves?

The main advantage of a three-tier work table is not simply having “one more shelf.” Its value comes from dividing the lower area into two usable storage zones while keeping the main preparation surface above.

This structure can be useful when a commercial kitchen needs to organize smaller containers, trays, cookware or ingredients without increasing the floor footprint of the table.

• One stainless steel preparation worktop
• One middle stainless steel undershelf
• One bottom stainless steel undershelf
• Two independently planned storage openings
• Custom shelf positions according to stored-item height
• Square-tube or round-tube leg options
• Flat-top or rear-backsplash configurations
• Adjustable stainless steel bullet feet
• SUS201 or SUS304 according to approved specification
• Actual sheet and tube thickness confirmed by component
• Reinforced tabletop construction
• Knock-down assembly available for export orders

Plan Shelf Clearances Before Confirming the Work Table

Shelf spacing is one of the most important purchasing decisions for a 3-tier work table. Dividing the lower area into two equal openings may look simple on a drawing, but equal spacing is not always the most practical arrangement.

Buyers should first identify the approximate height of the items expected on each shelf. For example, the bottom shelf may require greater clearance for taller containers or cookware, while the middle shelf may be used for trays, pans or frequently accessed preparation supplies.

The opposite arrangement can also be produced where required. What matters is that both clear openings are confirmed before production rather than allowing shelf positions to be determined only from a generic three-tier model.

Check the Usable Opening, Not Only the Shelf Position

The useful storage height is the actual clear opening available after accounting for the worktop, shelf thickness, reinforcement and connection structure. Buyers should therefore specify the required usable clearance rather than only giving a shelf-center measurement.

Allow Space for Handling and Cleaning

Stored items still need enough hand clearance to be inserted and removed comfortably. Two lower shelves also create more horizontal surfaces and smaller openings than a 2-tier table, so cleaning access should be considered when finalizing the spacing.

3-Tier Work Table Specification Reference

Common Dimensions for 3-Tier Commercial Work Tables

Overall dimensions should be selected according to available kitchen space, aisle width, operator workflow, storage requirements and adjoining equipment.

Common SENFON reference lengths within this worktable family include:

• 1000 mm
• 1200 mm
• 1500 mm
• 1800 mm

Reference depths include:

• 500 mm for selected compact configurations
• 600 mm
• 700 mm
• 800 mm

Common finished working-height references include:

• 800 mm
• 850 mm
• 900 mm

These dimensions are reference options rather than universal standards or fixed stock promises. For a 3-tier table, buyers should confirm both the overall height and the usable clear height of each lower storage level.

For more detailed dimension planning, refer to the commercial stainless steel worktable dimensions and project specification guide .

Flat Top or 3-Tier Work Table with Backsplash

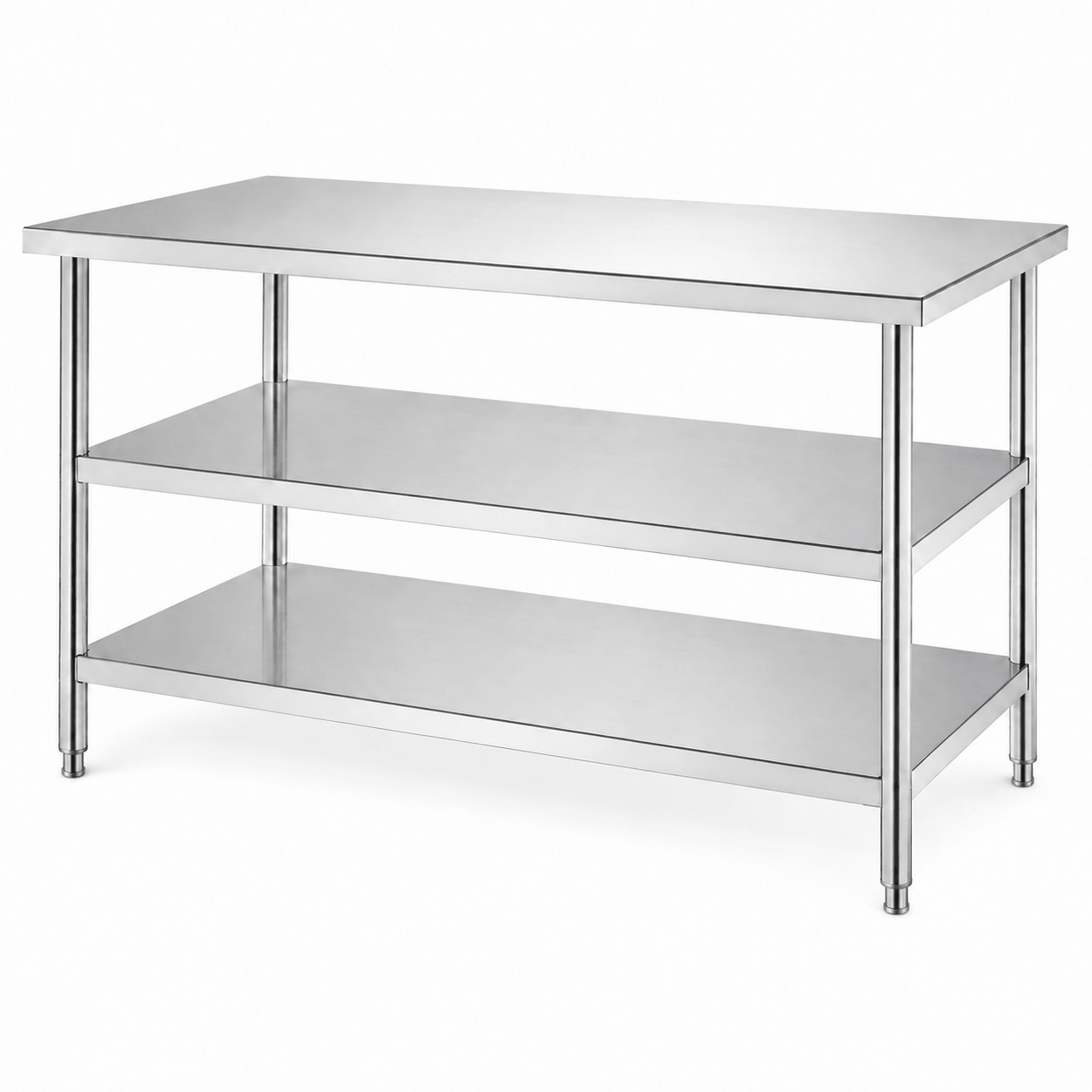

A flat-top three-tier preparation table is suitable for island positions and layouts where operators may need working access from more than one side.

Wall-side installations can use a rear backsplash to create a raised rear edge and coordinate the table with nearby sinks, cabinets or other kitchen equipment.

Approximately 100 mm is a common backsplash reference within suitable SENFON worktable configurations, but the actual height, return and folded detail should be confirmed according to the project drawing.

Terminology varies by market. UK buyers may use upstand, while Australian buyers commonly use splashback. These regional terms can be accommodated naturally in project communication, but the drawing should always define the final physical structure.

Square or Round Legs for a Three-Tier Work Table

Both square-tube and round-tube leg structures can be produced. The final choice may depend on distributor preference, target-market styling, tube specification, connection method and coordination with other stainless steel equipment in the same project.

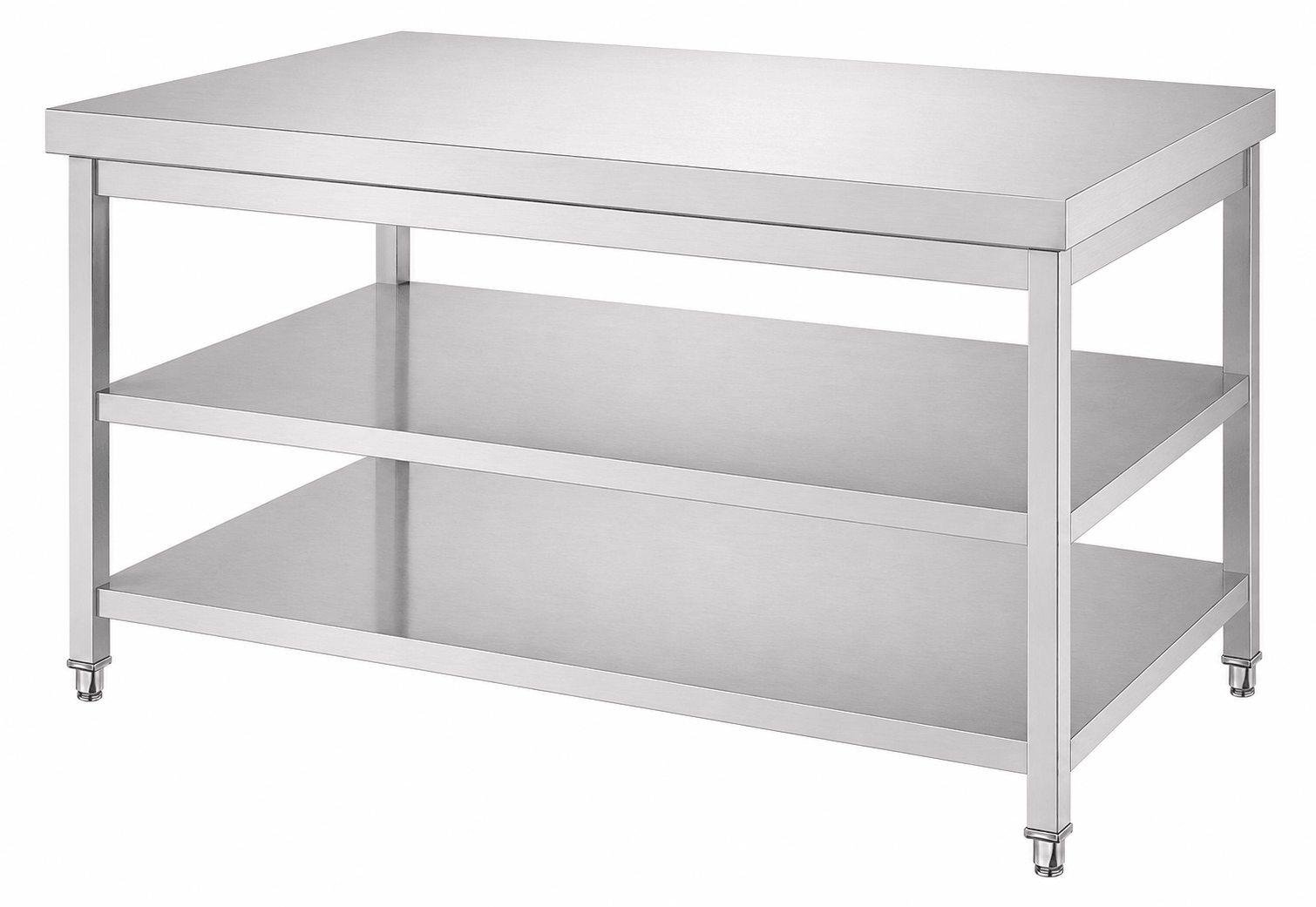

Square Tube Structure

Suitable SENFON references commonly use approximately 38 × 38 mm square stainless steel tube. This format coordinates well with many fabricated work cabinets, sinks and preparation stations.

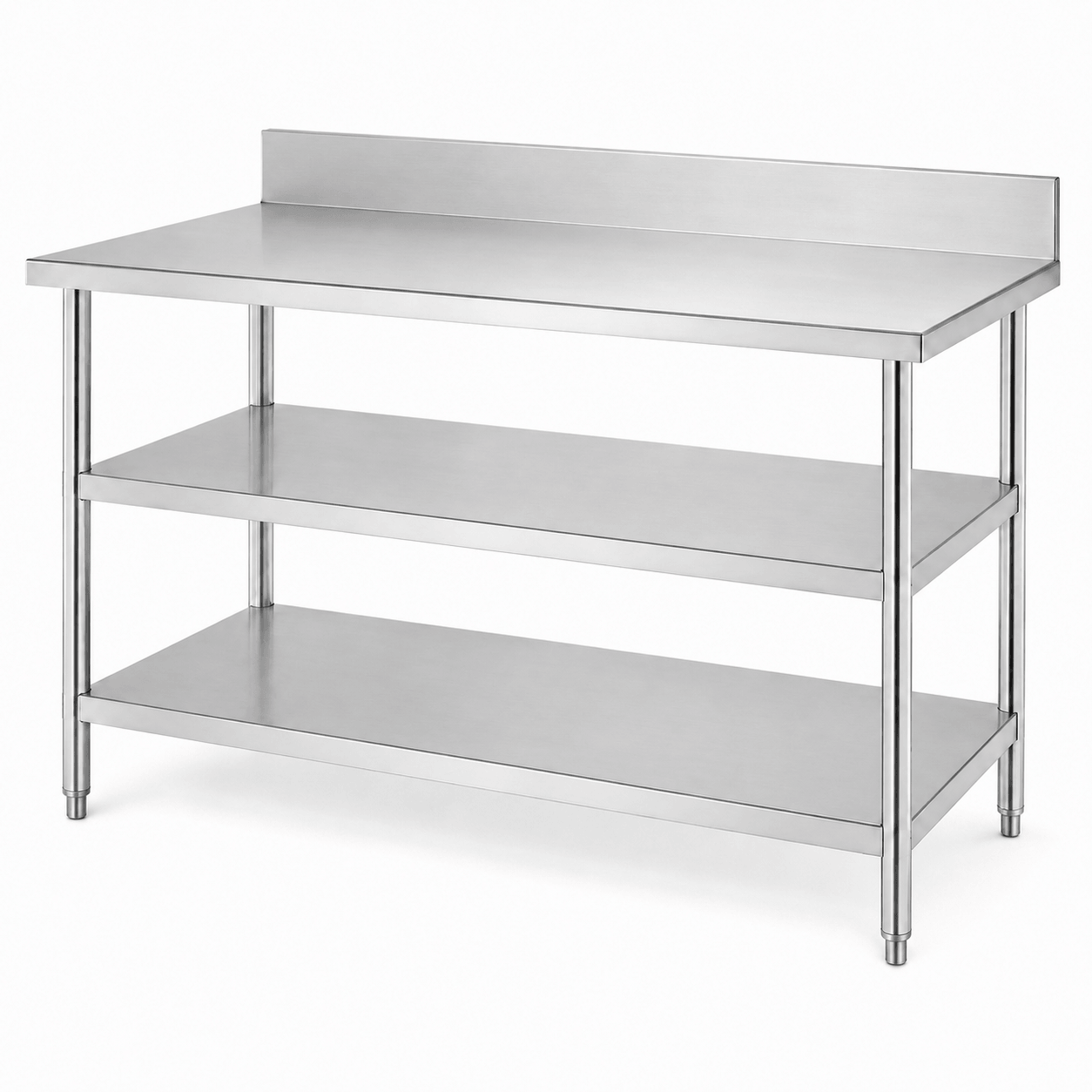

Round Tube Structure

Suitable round-leg references commonly use approximately Ø43 mm stainless steel tube. Round legs are also widely used for commercial preparation tables and can be incorporated into KD assembly structures.

Outside tube dimensions should never be evaluated in isolation. Tube wall thickness, leg spacing, both shelf connections, tabletop reinforcement and expected operating conditions should be reviewed together.

SUS201, SUS304 & Actual Thickness

SUS201 and SUS304 are available within this three-tier worktable family according to the approved specification. The correct material depends on the operating environment, target market, project requirements and commercial positioning.

Buyers should confirm stainless steel grade by component where necessary. The worktop, middle shelf, bottom shelf and supporting tubes should not automatically be assumed to use an unspecified common grade simply because the product is described as stainless steel.

Thickness options within approximately 0.7–2.0 mm are available within the product family. The actual sheet or tube thickness should be stated by component because the worktop, lower shelves and supporting tubes can require different specifications.

Reinforcement & Load Requirements for Three-Level Storage

Adding a second undershelf does not automatically mean that the work table has a higher load capacity. Load performance still depends on the complete structure.

Important factors include:

• Overall length and depth
• Actual worktop thickness
• Middle- and bottom-shelf thickness
• Shelf span
• Leg spacing
• Tube specification
• Tabletop reinforcement
• Shelf connections
• KD or welded construction
• Position and footprint of the applied load

SENFON worktop construction can use reinforcement and high-density composite backing with stainless steel support to improve worktop flatness and working stability.

When a project has a defined distributed or point-load requirement, provide the required load, footprint and operating position so the complete structure can be reviewed. A single generic kilogram figure should not be treated as applicable to every length, thickness or shelf configuration.

2-Tier or 3-Tier Work Table: Which Storage Layout Fits the Project?

Buyers who require one larger open lower compartment should compare the 2-tier stainless steel work table with one undershelf .

The 3-tier structure is more suitable when storage separation and higher storage density are more important than keeping one tall lower opening.

Open Shelves or Enclosed Work Table Cabinet?

Two open undershelves give kitchen staff immediate visibility and access to stored items. This can be useful for frequently used trays, cookware and preparation supplies.

When lower storage should be protected behind doors instead, buyers can compare the stainless steel work table cabinet with sliding doors .

This comparison helps project buyers choose between higher open-shelf storage density and enclosed cabinet storage without forcing both structures onto the same product specification.

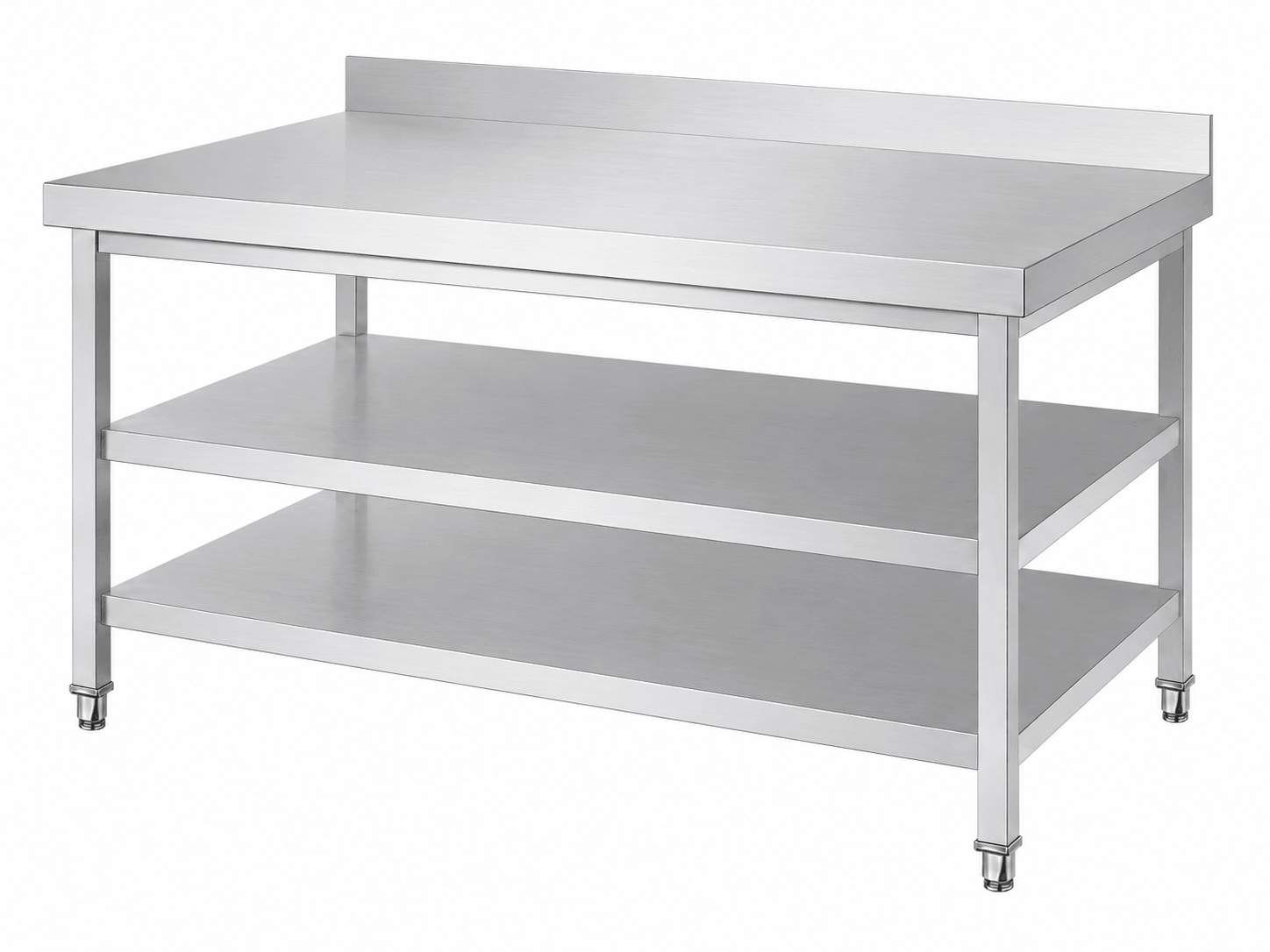

KD 3-Tier Stainless Steel Work Table for Export

Suitable three-tier worktables can use a knock-down structure for export packing and local assembly after delivery.

Because a 3-tier table has two lower shelves, KD assembly requires more shelf connections and clearer component identification than a one-undershelf model.

Importers should confirm:

• Identification of middle and bottom shelves
• Connection positions
• Fasteners and hardware
• Assembly sequence
• Shelf alignment after assembly
• Finished table squareness
• Packed dimensions
• Local assembly capability

For a broader comparison of export structures, read the KD stainless steel worktable B2B buying guide .

What Importers Should Compare When Sourcing a 3-Tier Work Table

For this product, the most important supplier comparison is not simply whether both quotations say “three tier.” The two shelf positions and component specifications can create materially different finished products.

• Actual stainless steel grade by component
• Worktop thickness
• Middle-shelf thickness
• Bottom-shelf thickness
• Tube size and wall thickness
• Both clear storage openings
• Shelf span and connection method
• Worktop reinforcement
• Backsplash dimensions if required
• Adjustable-foot construction
• KD hardware and assembly method
• Surface finish and visible workmanship
• Export packing
• Approved drawing and repeat-order specification control

For repeat distributor programs, both shelf positions should be documented on the approved drawing so the same usable storage layout can be reproduced across future batches.

Custom Three-Tier Work Tables for B2B Projects

SENFON can review custom dimensions and shelf configurations for importers, distributors and commercial kitchen project buyers. Multiple approved sizes can also be developed within one product program when a distributor requires different lengths or depths for the local market.

Custom decisions can include overall size, two shelf clearances, leg profile, stainless steel grade, actual thickness, backsplash, tabletop reinforcement, KD structure and export packing.

For non-standard or private-label requirements, review SENFON OEM/ODM customization services .

Buyers evaluating production and quality-control capability can also review SENFON factory and quality information .

RFQ Checklist for a Work Table with Two Undershelves

1. Required length × depth × finished working height
2. Approximate height of items stored on the middle shelf
3. Approximate height of items stored on the bottom shelf
4. Required usable clearance for both storage openings
5. Flat top or rear backsplash
6. Required backsplash height and return
7. Square-leg or round-leg structure
8. Tube size and wall thickness where specified
9. Required stainless steel grade
10. Actual sheet and tube thickness by component
11. Any defined worktop or shelf load requirement
12. KD or welded construction preference
13. Order quantity
14. Destination country or port
15. Packing requirements
16. Reference photos, drawings or project equipment list

Send the specification through the SENFON B2B project inquiry page for technical review and quotation.

3-Tier Stainless Steel Work Table FAQ

How many undershelves does a 3-tier work table have?

It has two lower storage shelves: one middle shelf and one bottom shelf beneath the preparation worktop.

Can the two lower shelves use different spacing?

Yes. The two usable storage openings can be planned according to the approximate height of the items expected on each shelf.

When is a 3-tier table more suitable than a 2-tier table?

Choose three tiers when separating smaller stored items and increasing storage density are more important. Choose two tiers when a larger single lower opening is required for taller items.

Can this table include a backsplash?

Yes. Both flat-top and rear-backsplash structures can be produced according to the approved drawing.

Can the table use SUS304 stainless steel?

Yes. SUS201 and SUS304 are available according to the confirmed product specification and component requirements.

Can square and round legs both be produced?

Yes. Square-tube and round-tube structures are both available. Tube dimensions and wall thickness should be confirmed with the complete table specification.

Can a 3-tier work table be supplied in KD construction?

Yes. Suitable models can use knock-down assembly for export packing. The two lower shelves and their connection positions should be clearly identified for local assembly.

Does the second lower shelf automatically increase load capacity?

No. Load performance depends on dimensions, actual thickness, reinforcement, shelf spans, leg structure, connections and load distribution. A second shelf primarily changes the storage layout.
