Commercial Multi-Tier Stainless Steel Dish Sterilizing Trolley

SENFON manufactures commercial multi-tier stainless steel dish sterilizing trolleys for hotel dishrooms, restaurant dishwashing areas, school canteens, hospital canteens, central kitchens, catering facilities and B2B foodservice equipment buyers. This trolley is designed to load stainless steel plates, melamine plates, dish trays and dinnerware in batches, then move them into a dish sterilization room or commercial sterilizing chamber for disinfection.

Unlike a regular service trolley or pan rack trolley, this product is designed specifically for dish sterilization workflows. It uses a high-capacity multi-tier rack structure, inclined perforated shelves, center support tubes, strong side frames and high-temperature-resistant castors to support batch dish loading, draining and sterilizing-room movement.

This product belongs to SENFON’s Commercial Stainless Steel Carts & Utility Trolleys series. It is suitable for overseas distributors, importers, canteen project buyers, hotel kitchen buyers, dishwashing equipment suppliers and commercial kitchen project contractors.

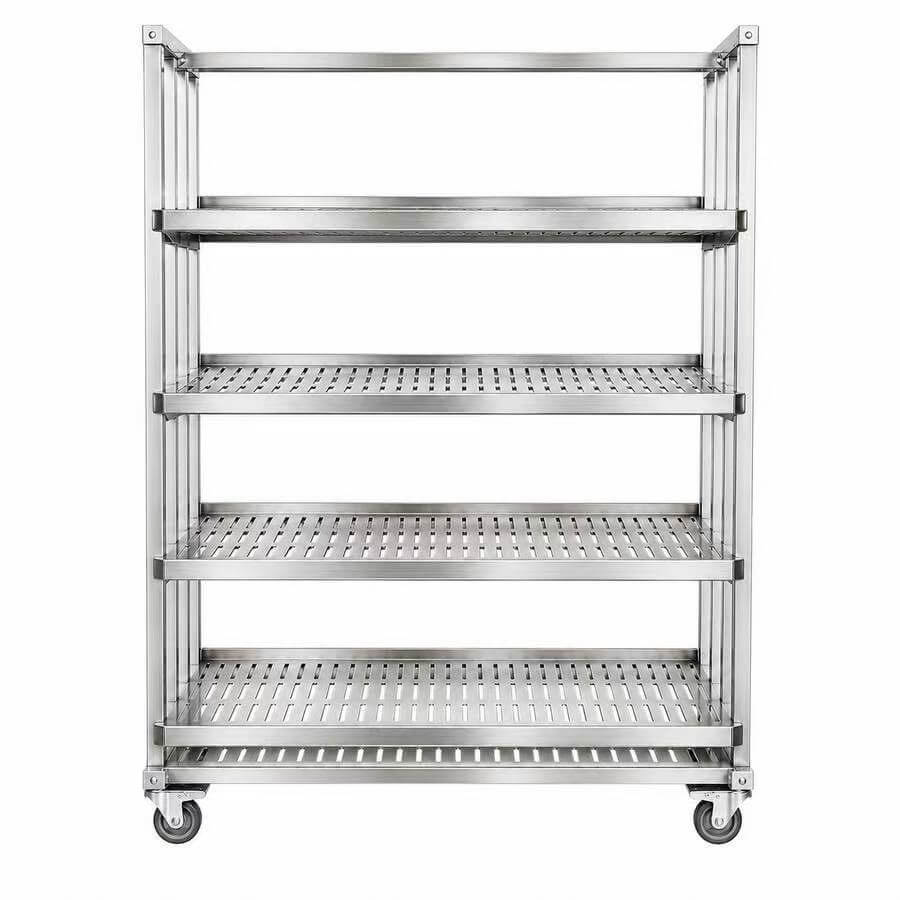

Commercial Multi-Tier Stainless Steel Dish Sterilizing Trolley

The Commercial Multi-Tier Stainless Steel Dish Sterilizing Trolley is used to organize and transport large quantities of plates or trays before and after disinfection. Operators can load stainless steel plates, melamine plates or dish trays onto the trolley, push the trolley into the sterilization room or sterilizing chamber, and then pull the trolley out after the disinfection process is completed.

This makes the product especially useful for large-scale dishwashing and sterilization workflows. Instead of moving dishes in small batches, foodservice operators can load many plates at one time, improving efficiency in hotels, restaurants, canteens and central kitchens.

Key Features

• Specialized for dish sterilization: designed for batch loading and movement of stainless steel plates, melamine plates, dinner plates and dish trays.
• Multi-tier rack structure: regular design uses a practical four-layer structure for capacity and easy access.
• Inclined perforated shelves: side-high and center-low shelf design helps plates stay positioned and supports drainage after washing.
• Center square tube support: plates can be inserted from both sides and rest against the center support tube for better organization.
• Side vertical frame protection: side supports help prevent plates from slipping out and increase overall structural strength.
• High-temperature-resistant castors: required for sterilization room use and supplied as the standard castor configuration.
• Heavy-duty swivel castors: four swivel castors are commonly used, with two brake castors and two non-brake castors.
• SUS304 preferred: SUS304 stainless steel is recommended for humid dishroom and sterilization environments; SUS201 can also be discussed for selected market needs.
• KD assembly structure: assembled structure is preferred for export to reduce shipping volume; welded versions can be made if required.
• Custom dimensions available: size, layer spacing, shelf structure and loading configuration can be customized according to customer requirements.

How This Dish Sterilizing Trolley Works

This trolley is designed around a practical commercial dish sterilization workflow:

1. Clean stainless steel plates, melamine plates or dish trays are loaded onto the trolley.
2. The plates are inserted from both sides and positioned on the inclined shelf structure.
3. The trolley is pushed into a dish sterilization room, sterilizing chamber or commercial sterilizing area.
4. After the disinfection process is completed, the trolley is pulled out for storage, transfer or next-step foodservice use.

Because this trolley may work inside or near a high-temperature sterilization environment, high-temperature-resistant castors are very important. SENFON supplies this product with high-temperature-resistant, heavy-duty castors as the standard recommended configuration.

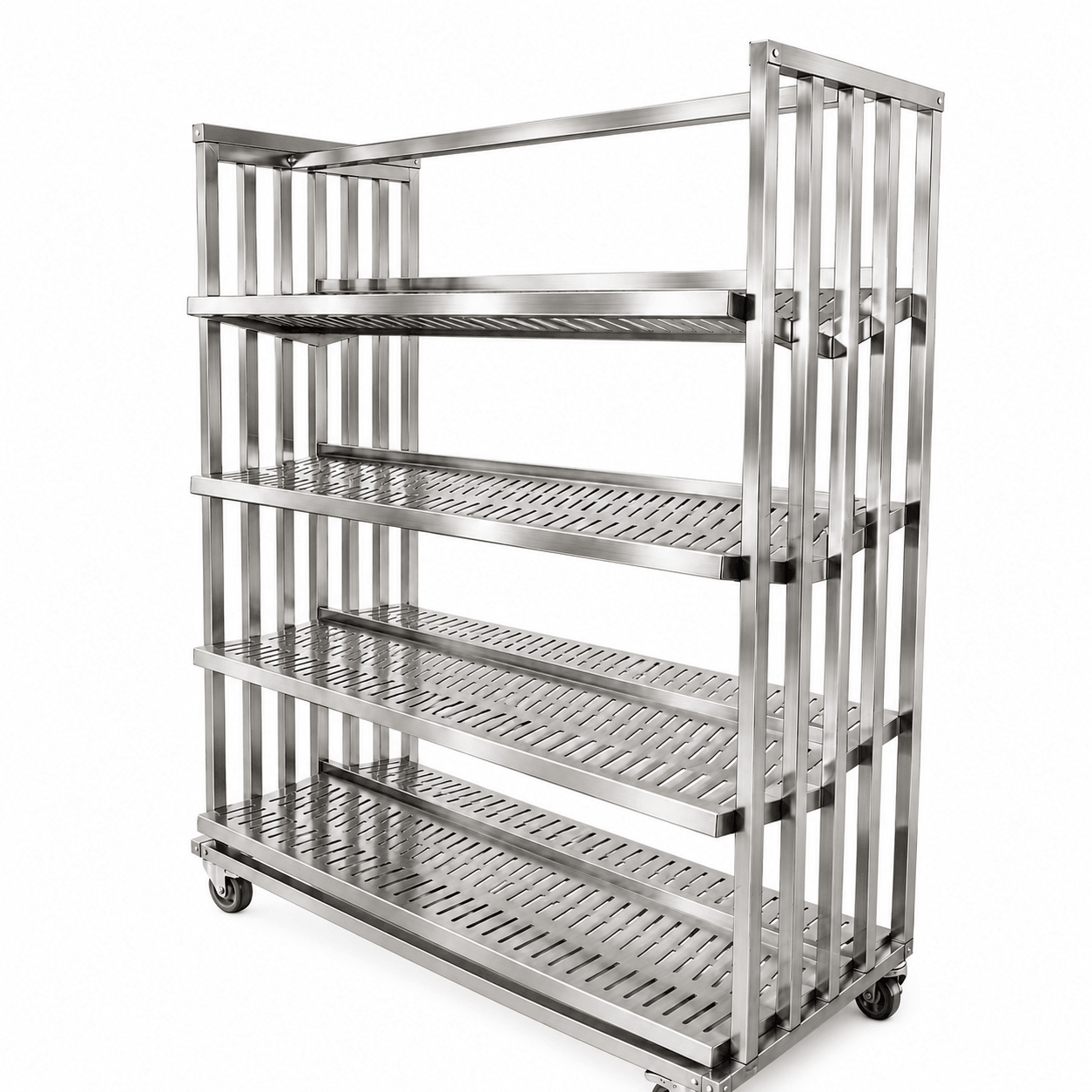

Inclined Perforated Shelf Design for Drainage and Plate Positioning

The shelf design is one of the most important differences between this dish sterilizing trolley and a normal multi-tier service cart. The shelves are perforated or slotted, which helps with ventilation, drainage and sterilizing airflow. This is useful when dishes have been washed before entering the sterilizing room.

Each shelf is designed with both sides slightly higher and the middle lower. A square tube runs through the center area, so plates can be inserted from both sides and supported toward the middle. This structure helps organize plates more efficiently, supports drainage and reduces movement during transport.

The side vertical supports also help keep plates from sliding out from the side during movement. This is important because the trolley may carry a large quantity of dishes in one batch, so the frame needs enough strength and plate-control structure for commercial use.

Why High-Temperature Castors Are Required

For this product, high-temperature-resistant castors are not just an optional upgrade. They are required because the trolley is used in a dish sterilization process and may enter or work near sterilizing rooms, sterilizing chambers or high-temperature disinfection environments.

Standard low-grade wheels may not be suitable for these conditions. SENFON therefore recommends high-temperature-resistant and heavy-duty swivel castors for this product. A common configuration is four swivel castors, with two castors equipped with brakes and two without brakes.

Brake castors help keep the trolley stable when loading, unloading or positioning inside the working area. The final castor configuration can also be adjusted according to the customer’s sterilization room floor, temperature condition and loading requirement.

Four-Layer Structure for Practical Use

The regular design of this dish sterilizing trolley is a four-layer structure. This is a practical balance between loading capacity and operation height. A five-layer design may become too high for easy access, while a three-layer design may waste vertical space and reduce batch loading efficiency.

For most commercial dishroom and canteen sterilization workflows, the four-layer structure provides better usability. However, SENFON can still customize layer quantity, layer spacing, total height, width and shelf structure according to customer requirements and sterilization room dimensions.

Layer Option	Practical Evaluation	Recommendation
3 Layers	Lower height but less loading capacity and less efficient use of vertical space	Not the main recommended structure
4 Layers	Good balance between capacity, operation height and usability	Main regular design
5 Layers	Higher capacity but may be too high for convenient operation	Custom only if buyer requires

Capacity Depends on Plate Type and Size

This trolley is designed for high-capacity dish sterilization workflows. The actual loading quantity depends on plate size, plate thickness, shelf spacing and rack structure.

For example, stainless steel plates are usually thinner and can often be loaded in larger quantities. Melamine plates are usually thicker and take more space, so the loading quantity will be lower under the same trolley structure. Buyers should provide plate type, plate diameter or tray dimensions before final confirmation.

SENFON can customize the layer spacing and shelf structure according to customer dish dimensions. This helps ensure the trolley matches the buyer’s actual stainless steel plates, melamine plates, dish trays or dinnerware.

Material and Thickness

This product can be made with SUS201 or SUS304 stainless steel, but SUS304 stainless steel is usually recommended for dish sterilizing trolley applications because the trolley is used in humid dishwashing areas and sterilization environments.

The common thickness range is approximately 1.0 mm to 2.0 mm, depending on frame structure, shelf design, trolley size, loading requirement and buyer budget. Because this product may carry a large quantity of plates or trays, the structure should be designed with enough strength for commercial operation.

KD Assembly or Welded Structure

The mainstream production option for this dish sterilizing trolley is KD assembled structure. Because the product is relatively large, KD structure helps reduce packing volume and saves sea freight for export orders.

A welded version can also be made if the buyer requires a fully welded structure. However, welded large-size trolleys take more shipping space and may increase transportation cost. For most international B2B orders, SENFON recommends the assembled structure unless the project specifically requires welding.

Regular Sizes and Custom Dimensions

Regular sizes are available, and irregular or custom dimensions can be made according to customer requirements.

Product	Regular Size	Notes
Multi-Tier Dish Sterilizing Trolley	1200 × 650 × 1700 mm	Larger capacity option for canteens, hotels, central kitchens and dish sterilization rooms
Multi-Tier Dish Sterilizing Trolley	900 × 650 × 1700 mm	More compact option for smaller dishrooms and foodservice operations

Custom size, shelf spacing, height, width, layer quantity and perforated shelf structure can be produced according to the customer’s sterilization room size, plate quantity and dish dimensions.

Are Plates Included?

The standard quotation usually covers the stainless steel dish sterilizing trolley itself and does not include stainless steel plates, melamine plates or dish trays by default.

If the buyer needs matching stainless steel plates, melamine plates or dish trays, SENFON can discuss and include them in the quotation as additional matched items. To avoid mismatch, buyers should provide plate size, plate type, quantity and use environment before confirmation.

Application Scenarios

This multi-tier stainless steel dish sterilizing trolley is suitable for commercial dishwashing and sterilization workflows, including:

• Hotel dishwashing rooms
• Restaurant dishrooms
• School canteens
• Hospital canteens
• Central kitchens
• Catering facilities
• Commercial dish sterilization rooms
• Food service cleaning areas
• Large dining facilities using stainless steel or melamine plates

For local sales, buyers can position this product as a dish sterilizing trolley, dish sterilization cart, stainless steel dish rack trolley, melamine plate sterilizing trolley or commercial dishroom trolley.

Related Stainless Steel Carts & Trolleys

SENFON supplies different stainless steel trolley solutions for different commercial kitchen workflows. This dish sterilizing trolley is specialized for dishroom and sterilization use, while other trolley models serve food service, tray storage, banquet service or material handling needs.

• Commercial Stainless Steel Carts & Utility Trolleys — view the full trolley and cart collection.
• 2-Tier Stainless Steel Utility Cart on Wheels — suitable for open-space transport, taller items and quick back-of-house movement.
• Commercial 3-Tier Stainless Steel Service Trolley — suitable for regular dish transport, tray movement and restaurant or hotel service workflows.
• Commercial Stainless Steel Sheet Pan Rack Trolley — suitable for bakeries, tray storage, food pans and central kitchen production workflows.
• Foldable & Assembled Stainless Steel Platform Truck — suitable for cartons, heavier goods, warehouse transfer and general platform transport.

If buyers need a complete foodservice trolley solution, SENFON can help combine dish sterilizing trolleys, service trolleys, pan rack trolleys, banquet trolleys and platform trucks in one mixed-container shipment.

B2B Buyer Support

SENFON supplies stainless steel dish sterilizing trolleys for international B2B buyers, including hotel kitchen buyers, canteen project buyers, dishwashing equipment distributors, commercial kitchen equipment importers, foodservice equipment wholesalers, central kitchen project contractors and school or hospital kitchen procurement teams.

Buyers can customize size, material, thickness, layer spacing, shelf structure, castor configuration, packing method and matched plate options. SENFON supports factory-direct supply, OEM/ODM customization and mixed-container purchasing with other stainless steel commercial kitchen equipment.

To learn more about SENFON as a stainless steel commercial kitchen equipment manufacturer, visit our About Us page. For factory capability and documentation support, visit Factory & Certifications.

Packaging and Export Shipment

For regular export orders, this dish sterilizing trolley can be packed in cartons or protected according to size and structure. KD assembly helps reduce packing volume and supports more efficient container loading.

For large-size models, LCL shipment, high-value orders, welded versions or higher-risk transportation, wooden frame or wooden case protection can be discussed. SENFON can recommend a suitable packing method according to order quantity, shipment method and product structure.

OEM/ODM Customization

SENFON supports OEM/ODM customization for multi-tier dish sterilizing trolleys and other stainless steel commercial kitchen trolley products. Custom options may include size, layer number, shelf spacing, perforated shelf style, side support structure, material, thickness, castor type and packaging method.

If you need a trolley for dish sterilization rooms, canteens, hotels, restaurants, central kitchens or hospital foodservice areas, send your required size, plate type, plate quantity, sterilization room condition and order quantity. SENFON can review the structure and recommend a practical factory-direct solution.

Learn more about SENFON customization capability on the OEM/ODM Customization Services page.

FAQ

What is a dish sterilizing trolley used for?

It is used to load stainless steel plates, melamine plates, dish trays or dinnerware in batches and move them into a sterilization room or commercial sterilizing chamber for disinfection.

Why does this trolley need high-temperature-resistant castors?

Because the trolley may enter or work near a dish sterilization room or high-temperature sterilizing environment. High-temperature-resistant castors are required for safer and more reliable use.

Can the trolley be used for melamine plates?

Yes. It can be used for melamine plates, stainless steel plates and dish trays. The actual loading quantity depends on plate size and thickness.

Can the layer spacing be customized?

Yes. Layer spacing, shelf size, trolley height and width can be customized according to plate size, tray size and sterilization room requirements.

Are plates included in the quotation?

Normally, plates are not included in the standard quotation. If the buyer needs matching plates or trays, SENFON can provide them as additional matched items.

Is the trolley KD assembled or welded?

The mainstream option is KD assembled structure for export and lower shipping volume. Welded structure can also be made if required, but it may take more shipping space.

What material is recommended?

SUS304 stainless steel is usually recommended for dish sterilizing trolley applications because the product is used in humid dishroom and sterilization environments. SUS201 can also be discussed for selected market needs.

Is this product suitable for B2B project orders?

Yes. It is suitable for hotels, restaurants, school canteens, hospital canteens, central kitchens, catering facilities and commercial dishwashing equipment distributors.
