Commercial Double-Section Stainless Steel Sheet Pan Rack

A commercial double sheet pan rack is designed for bakery, central kitchen and food-production operations that need two tray sections within one mobile rack structure. Compared with a conventional single-column sheet pan rack, the double-section configuration increases tray positions by arranging two tray bays side by side while keeping them within one coordinated frame.

For B2B buyers, however, selecting a double-section sheet pan rack requires more than choosing a tier quantity. Actual tray dimensions, tray insertion direction, runner spacing, usable vertical clearance, overall rack width, working load, caster configuration and transport route should all be confirmed before production.

SENFON supplies custom stainless steel bakery and tray-handling equipment for overseas importers, distributors, wholesalers and commercial kitchen project buyers. Double-section racks can be developed according to the buyer's actual tray specification, required number of levels, material, thickness, caster requirements and export packing method.

For other commercial mobile rack and trolley structures, explore our Commercial Stainless Steel Carts & Utility Trolleys.

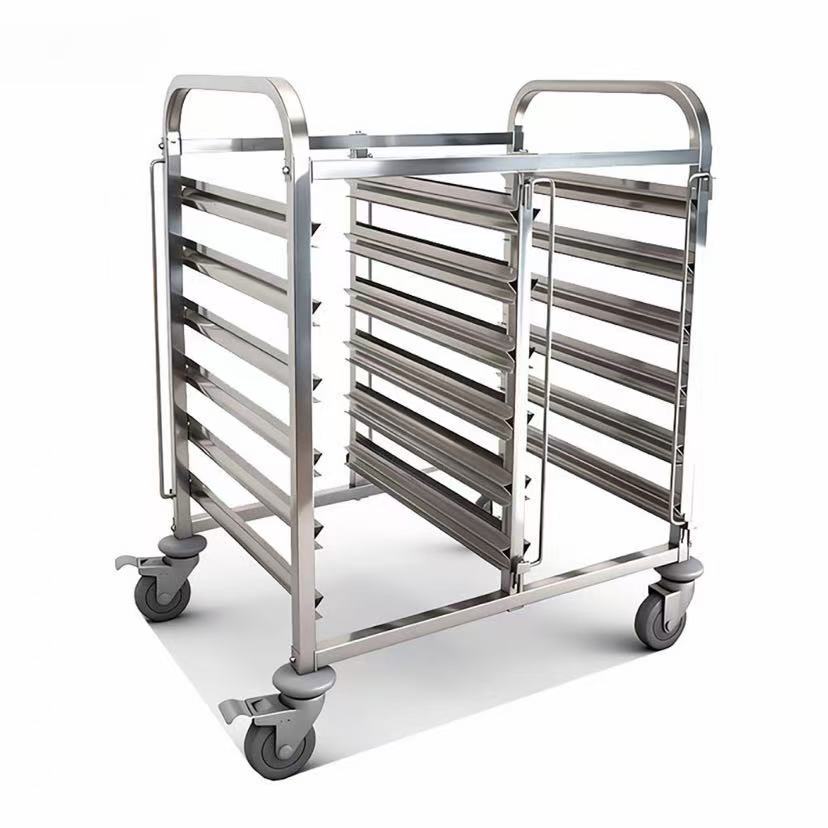

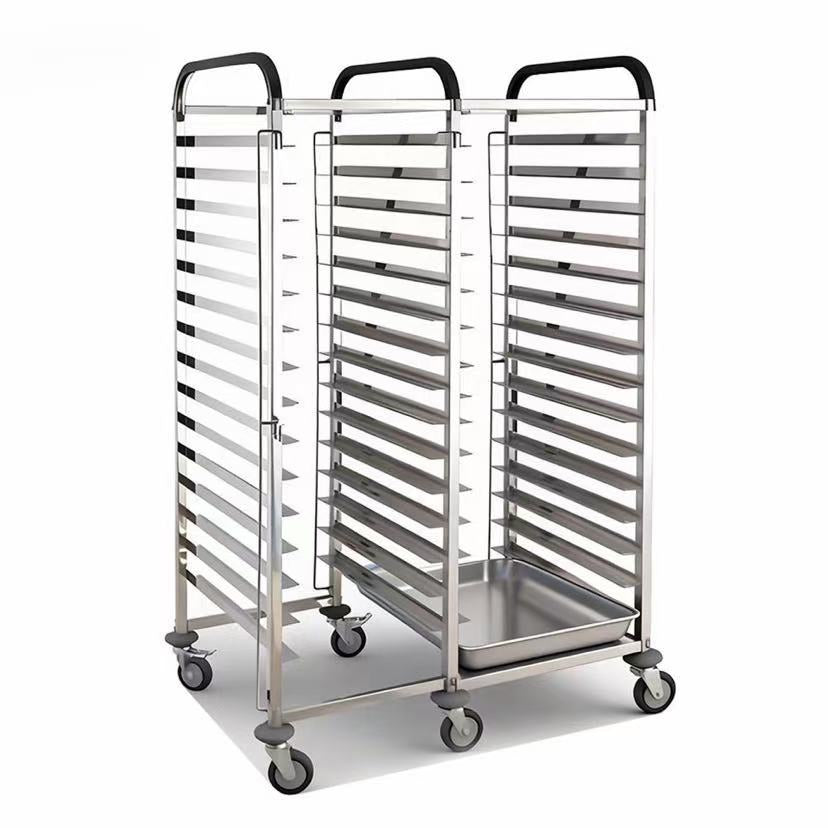

What Is a Double-Section Sheet Pan Rack?

A double sheet pan rack, also described as a double-section, double-bay or two-section bakery rack, uses two vertical tray-storage sections inside one mobile frame. Each section contains multiple tray runners, allowing trays to be loaded into the left and right sections separately.

The purpose of this structure is not simply to make a wider version of a standard rack. The two tray sections must work together as one frame, which means the overall width, centre-frame structure, runner alignment, caster positions and loaded weight distribution should be considered as one complete system.

This makes the product suitable for buyers who require higher tray density than a conventional single-column rack but prefer one integrated mobile unit instead of moving two completely separate racks.

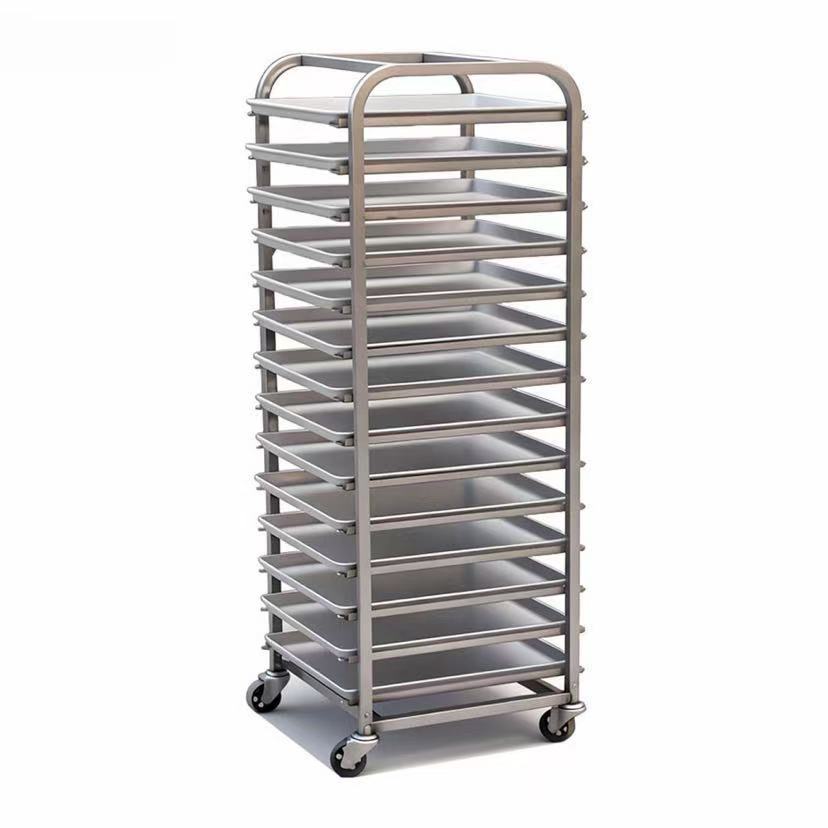

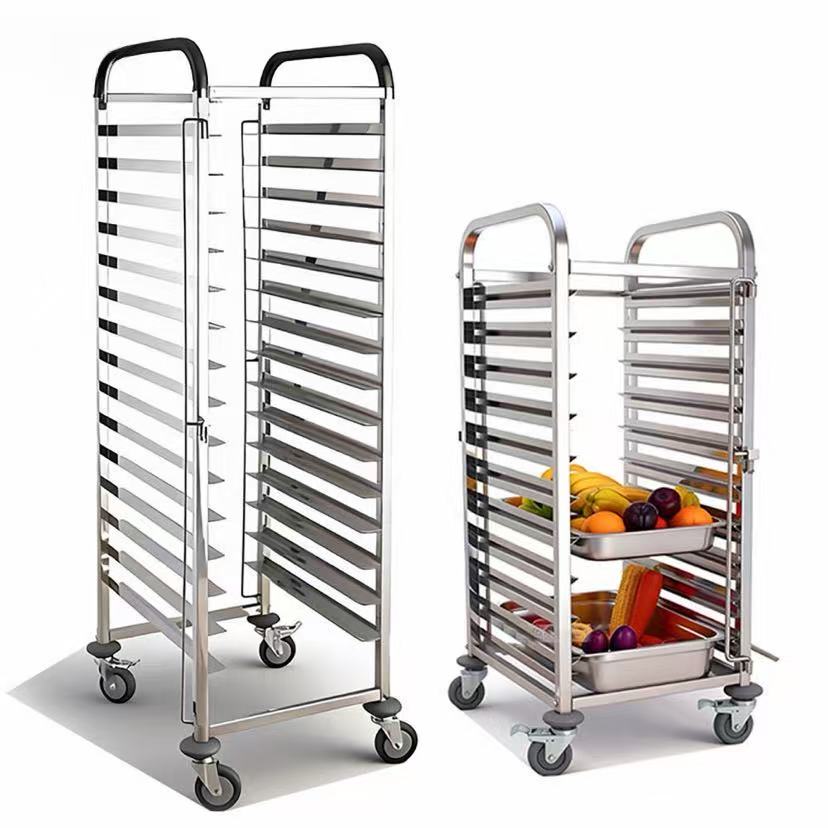

Double-Section Rack vs Standard Single-Column Sheet Pan Rack

The most important difference is the way tray capacity is distributed.

Buyers looking for a conventional single-column model can review the Commercial Stainless Steel Sheet Pan Rack Trolley.

Tray Dimensions Must Be Confirmed Before Production

A sheet pan rack should not be specified only by using terms such as “standard bakery tray” or “standard sheet pan.” Tray sizes and edge profiles vary between countries, manufacturers and bakery systems.

External tray length and width are especially important because the runners must support the tray correctly while still providing sufficient insertion and removal clearance.

Tray flange design, rim shape and insertion direction can also affect the usable runner geometry. Two trays that have similar nominal dimensions may not necessarily require exactly the same supporting structure.

For this reason, B2B buyers should provide the actual external tray dimensions before production. A tray drawing, technical specification or clear reference photo is especially useful when the tray edge design affects the runner.

Common bakery formats may include metric or inch-based trays, but SENFON does not recommend assuming universal compatibility without confirming the actual pan dimensions.

Two Tray Bays Must Be Designed as One Structure

The defining feature of this product is the two-section layout. The left and right tray bays are integrated into one stainless steel rack, so the design should account for the complete frame rather than treating each side independently.

Important structural points include:

• usable width of each tray section;
• centre-frame or centre-support arrangement;
• runner alignment between levels;
• overall rack width;
• frame rigidity when both sections are loaded;
• caster position under the combined rack structure;
• clearance required for maneuvering the wider rack.

For project buyers, overall dimensions should therefore be checked against doorways, bakery aisles, preparation areas, oven zones and other transport routes where the rack will actually be used.

Runner Spacing and Vertical Clearance

The number of tray positions alone does not determine whether a bakery rack is suitable for the intended process.

Runner spacing controls the usable vertical clearance between loaded trays. If trays carry shallow bakery products, closer spacing may be practical. If trays hold taller products, proofing items, containers or other products requiring greater air space, additional clearance may be required.

The correct specification should therefore include both:

• required number of tray positions in each section; and
• minimum usable vertical clearance required between tray levels.

These two requirements should be coordinated together instead of simply maximizing the number of runners.

High Capacity Does Not Mean Maximum Tier Count

A double-section rack is often selected because the two-column structure provides more total tray positions. However, the best configuration is not automatically the version with the greatest possible number of runners.

Higher tray density can reduce the vertical clearance available for each loaded tray. The appropriate balance depends on tray dimensions, product height, bakery workflow and loading frequency.

This page is therefore focused on the double-section structure, while buyers whose primary requirement is a conventional 15-tier or 20-tier rack can review our Custom Stainless Steel 15/20-Tier Sheet Pan Rack.

Key Double Sheet Pan Rack Specifications

Working Load and Tray Weight

There should not be one universal load-capacity figure applied to every double sheet pan rack.

Actual working performance depends on several connected factors, including tray weight, number of loaded trays, runner structure, material, thickness, frame dimensions, connection method, caster capacity and how the load is distributed between the two tray sections.

For example, a rack carrying many lightweight bakery trays creates a different operating condition from a rack carrying fewer trays with significantly heavier products.

B2B buyers should therefore provide either the expected weight per loaded tray or the expected total working load. The proposed rack structure and caster configuration can then be reviewed against that requirement.

Balanced Loading Across Two Sections

Because the rack contains two tray bays, the loaded condition of both sections should be considered during specification.

When practical, operators should distribute loaded trays across the rack rather than repeatedly concentrating all heavy trays on one side. The actual operating procedure depends on the application, but expected load distribution should be communicated when the rack is being specified for demanding transport work.

This is another reason why a double-section model should not be described simply as “twice the capacity” of a single rack. Tray spacing, overall dimensions, structural design and load requirements must still be considered.

Caster Diameter, Wheel Material and Brakes

Casters are a critical part of a mobile bakery rack because the complete loaded unit must be moved safely through the intended operating route.

Caster selection should consider the expected working load together with floor condition, floor joints, thresholds, ramps, maneuvering space and the frequency of movement.

Depending on the approved requirement, the caster configuration can include suitable swivel arrangements and braking positions. Wheel material and diameter should also be selected according to the actual operating environment rather than specified from appearance alone.

Overall Rack Width and Aisle Clearance

A double-section rack is naturally wider than a conventional single tray column, so buyers should pay particular attention to the available operating space.

The overall rack width should be checked against:

• door openings;
• bakery aisle width;
• oven and preparation-area access;
• turning radius;
• storage positions;
• elevator or service-lift dimensions where applicable.

For project orders, providing a layout drawing or maximum allowable rack width can reduce the risk of receiving a rack that fits the tray specification but does not suit the actual site workflow.

SUS201 and SUS304 Material Options

SUS201 and SUS304 stainless steel options can be reviewed according to the approved application and purchasing specification.

Material selection should be considered together with target market requirements, operating environment, cleaning routine, budget and the buyer's project specification.

Thickness should also be evaluated by component. A tray runner, upright, cross member and other structural part do not necessarily need to use exactly the same thickness simply because they belong to the same rack.

For OEM or project orders, buyers can provide their required material and component thickness specification for review before quotation.

Welded and Connection Details

For mobile commercial racks, overall stability depends on more than stainless steel grade. Runner attachment, frame connections, cross-support arrangement and caster mounting points all contribute to the finished structure.

The proposed construction should therefore be reviewed as a complete rack system according to tray dimensions, number of levels, expected load and whether the rack will be supplied assembled or in a knock-down configuration.

KD Structure for Export Orders

For international B2B purchasing, a knock-down (KD) sheet pan rack can be considered where the approved rack design is suitable for disassembly.

KD construction can reduce shipment volume compared with transporting a large fully assembled rack. However, the connection structure must also maintain correct alignment after assembly, particularly around tray runners, frame joints and caster components.

The final decision between assembled and KD shipment should be based on the approved rack structure, order quantity, destination, packing method and buyer's assembly requirements.

Export Packing Considerations

Double-section bakery racks contain long frame members, tray runners, caster components and connecting parts that should be protected during international transport.

For KD orders, individual components can be separated and protected before carton packing. Packing configuration should be confirmed according to rack dimensions and quantity rather than applying one standard carton size to every model.

Buyers planning container quantities can also request packing dimensions when evaluating shipment volume and loading efficiency.

Applications for Double Sheet Pan Racks

Double-section sheet pan racks can be used in commercial environments where multiple trays need to be organized, stored or transferred as part of the working process.

Typical applications include bakeries, pastry production, central kitchens, catering preparation, institutional kitchens, food-production facilities and other commercial operations using repeated tray handling.

The rack should still be specified from the actual tray and workflow requirements rather than assuming one structure is automatically suitable for every bakery application.

For Importers and Bakery Equipment Distributors

For importers, distributors and wholesalers, a double-section rack can complement a broader sheet pan rack range by providing a separate high-capacity structure alongside conventional single-column models.

When developing a market-specific product range, buyers should distinguish between:

• standard single-column sheet pan rack trolleys;
• 15-tier or 20-tier capacity-focused racks;
• double-section / double sheet pan racks;
• custom tray racks designed around local bakery pan sizes.

Keeping these structures clearly separated helps buyers offer different tray-capacity and footprint options without treating every bakery rack as the same product.

OEM/ODM Double Sheet Pan Rack Manufacturing

SENFON supports OEM/ODM development for overseas B2B buyers requiring custom sheet pan rack configurations.

Customization can include tray compatibility, rack dimensions, two-section layout, number of tray positions, runner spacing, stainless steel material, thickness, caster configuration, braking arrangement and KD structure according to the approved project specification.

For drawing-based projects, review our OEM/ODM Commercial Kitchen Equipment Customization Services.

Buyers evaluating manufacturing and export capability can also review SENFON Factory & Certifications.

What B2B Buyers Should Confirm Before Quotation

To prepare an accurate quotation for a custom double sheet pan rack, please provide:

1. Actual external tray length and width
2. Tray height and rim or flange details where relevant
3. Tray insertion direction
4. Required number of tray positions per section
5. Required runner spacing or minimum usable clearance
6. Expected loaded weight per tray or total working load
7. Maximum overall rack width if limited by the project
8. Required stainless steel grade
9. Required component thickness if already specified
10. Caster diameter, wheel or brake requirements
11. KD or assembled shipment preference
12. Order quantity
13. Destination market
14. Tray drawing, rack drawing or reference photo if available

Double Sheet Pan Rack FAQ

What is the difference between a double sheet pan rack and a standard sheet pan rack?

A standard rack normally uses one vertical tray section. A double sheet pan rack uses two tray sections arranged side by side within one mobile frame, providing a different capacity and footprint configuration.

Is a double sheet pan rack the same as a 20-tier sheet pan rack?

Not necessarily. “Double-section” describes the two-bay layout, while “20-tier” describes the number of tray positions. A rack can therefore have a different number of levels depending on tray spacing and project requirements.

Can both tray sections use custom runner spacing?

Yes. Runner spacing and the number of tray positions can be coordinated according to the approved tray dimensions and required vertical clearance.

Will the rack fit standard 400 × 600 mm or 18 × 26 inch trays?

These are common tray formats in some markets, but universal compatibility should not be assumed. Buyers should provide the actual external tray dimensions and edge profile so the runner and clearance can be confirmed before production.

Can the double rack use SUS304 stainless steel?

Yes. SUS201 and SUS304 options can be reviewed according to the approved purchasing specification and application.

How is the load capacity determined?

Load performance depends on tray weight, number of loaded trays, load distribution, runners, frame dimensions, stainless steel thickness, connections and caster capacity. SENFON does not recommend applying one generic load figure to every double-section rack.

Can the rack be supplied with brakes?

Caster and braking arrangements can be coordinated according to the approved operating route, rack dimensions and working-load requirements.

Can a double sheet pan rack be packed in KD form?

KD / flat-pack construction can be coordinated where suitable for the approved rack design and export shipment requirements.

Can the overall width be customized?

Yes. Overall width can be developed around the actual tray size, two-section layout and available project space, subject to the approved structural requirements.

What information should an importer send before requesting a quote?

The most useful information includes actual tray dimensions, required tray positions, runner spacing, expected working load, material, rack dimensions, caster requirements, packing preference, order quantity and destination.

Request a Double Sheet Pan Rack Quotation

If you are sourcing a double sheet pan rack manufacturer for a bakery equipment range, commercial kitchen project or wholesale order, send SENFON your tray dimensions, required tray capacity, runner spacing, working load, caster requirements and order quantity.

We can review the specification and coordinate a suitable two-section rack configuration before quotation.
