Commercial 15/20-Tier Stainless Steel Bakery Tray Rack

The Commercial 15/20-Tier Stainless Steel Bakery Tray Rack is designed for bakeries, pastry kitchens, hotel bakeries, central kitchens, food-production facilities, catering operations and bakery-equipment distributors that need organized vertical storage and movement of sheet pans and baking trays.

This product is specifically positioned around 15-tier and 20-tier tray capacity. Instead of selecting a rack only by total height, buyers should match the number of levels, rail spacing and usable tray clearance to the actual pans, baked products and production sequence used in their facility.

SENFON can coordinate tray dimensions, 15- or 20-level capacity, rail spacing, overall rack size, stainless steel material, frame structure, castors and export packing according to the buyer's approved B2B specification.

15-Tier or 20-Tier Bakery Rack: Which Capacity Fits Your Workflow?

The difference between a 15-tier and 20-tier bakery rack is not simply five additional tray positions. Increasing the number of levels changes the vertical clearance available between trays when the overall rack height remains similar.

15-Tier Configuration

A 15-tier rack can provide greater spacing between tray levels. It may be more suitable when the bakery handles taller products, deeper pans, covered trays or production batches that require additional clearance between levels.

20-Tier Configuration

A 20-tier rack provides higher tray density within the available vertical height. It is suitable when the selected baking trays and products can operate with closer rail spacing and the buyer wants to maximize the number of pans stored or moved per rack.

The correct choice should therefore be made from the actual tray and product dimensions rather than from tier quantity alone.

Capacity Planning by Baking Batch

For bakery production, rack capacity can be planned around the number of trays produced in one batch.

Before selecting a rack, consider:

• How many trays are loaded during one production cycle
• Whether trays are empty, proofed, baked or cooling when placed on the rack
• Whether several products with different heights share the same rack
• How frequently the rack moves between preparation, oven and cooling areas
• Whether the bakery prefers one high-capacity rack or several smaller mobile racks

A rack selected around the production batch can reduce unnecessary tray handling and make it easier to organize repeated bakery workflows.

Tray Dimensions Must Be Confirmed Before Rail Production

Terms such as sheet pan, baking tray, bakery tray and food pan can describe different dimensions in different markets. For that reason, rail spacing should not be manufactured only from a product name.

Before quotation, buyers should provide the actual tray dimensions:

• Tray length
• Tray width
• Tray overall height
• Edge or rim profile
• Loading direction
• Approximate loaded weight per tray

Common bakery tray formats can be reviewed, but the buyer's own tray dimensions or drawing should be treated as the final production reference.

Rail Pitch and Usable Vertical Clearance

Rail pitch directly affects what can be stored between two tray levels.

A rack used for flat cookie trays may allow closer spacing than a rack used for taller bread products, deep pans or trays carrying items that rise above the tray rim.

For a customized 15- or 20-tier rack, buyers should confirm:

• Center-to-center rail pitch
• Usable clear height between loaded trays
• Tray edge thickness
• Required loading tolerance
• Whether every tier uses equal spacing

If different tray clearances are needed within one rack, a customized rail layout can be reviewed before production.

Designed for Tray Staging, Cooling and Internal Bakery Movement

A mobile bakery tray rack can support several stages of production without becoming a general-purpose service trolley.

Typical uses include:

• Holding prepared baking trays before loading
• Organizing trays between production steps
• Staging baked products after oven removal
• Supporting open-air cooling where suitable for the product
• Moving trays between preparation and baking areas
• Organizing empty trays after cleaning

This is an open tray rack and should not be confused with an enclosed proofing cabinet, heated holding cabinet or refrigerated rack. Temperature- or humidity-controlled processes require suitable dedicated equipment.

Loading Direction and Tray Retention

The loading direction should be determined before the rail frame is finalized. The selected tray should slide into the rack smoothly while remaining adequately supported along its edges.

Depending on the approved design, the rack can incorporate:

• Side-mounted tray runners
• Rear stopping details
• Front retaining features where required
• Custom rail width matched to the tray edge
• Clear loading access from the operator side

For mobile racks, tray retention becomes especially important when the trolley crosses floor joints, thresholds or changes direction.

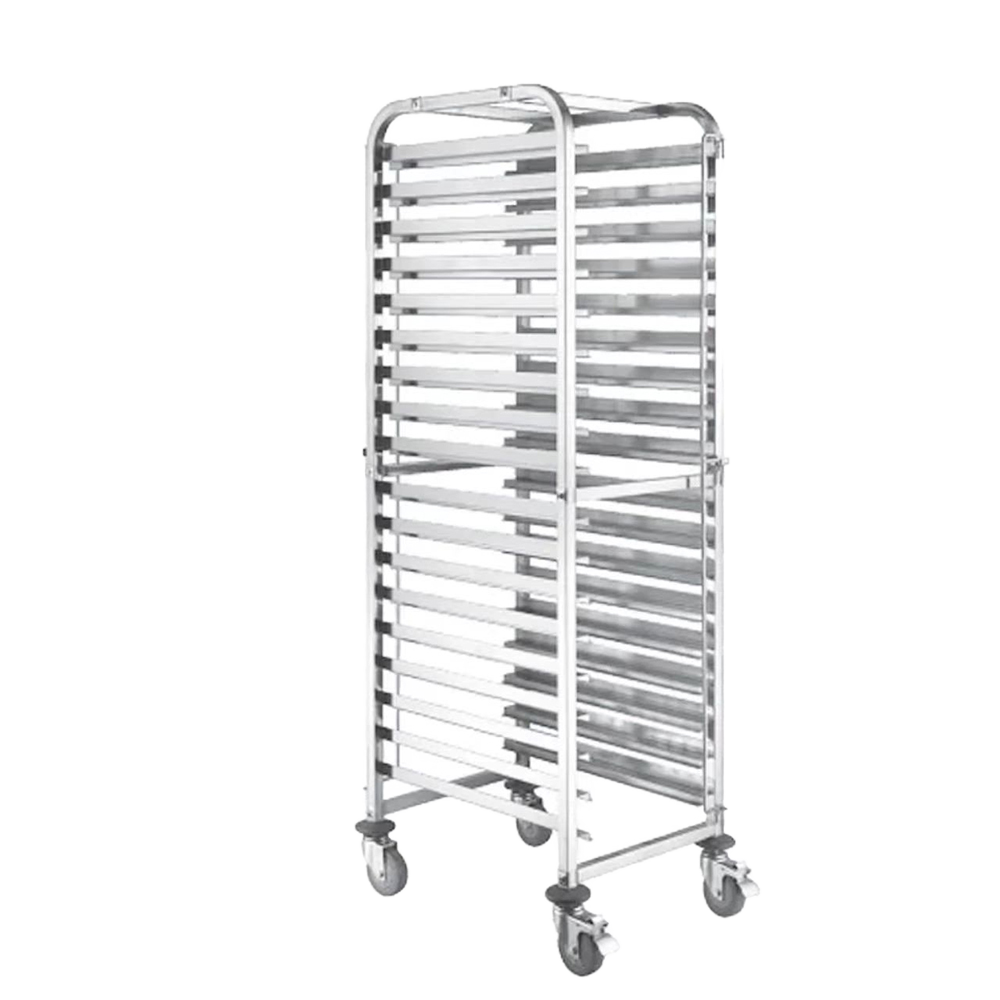

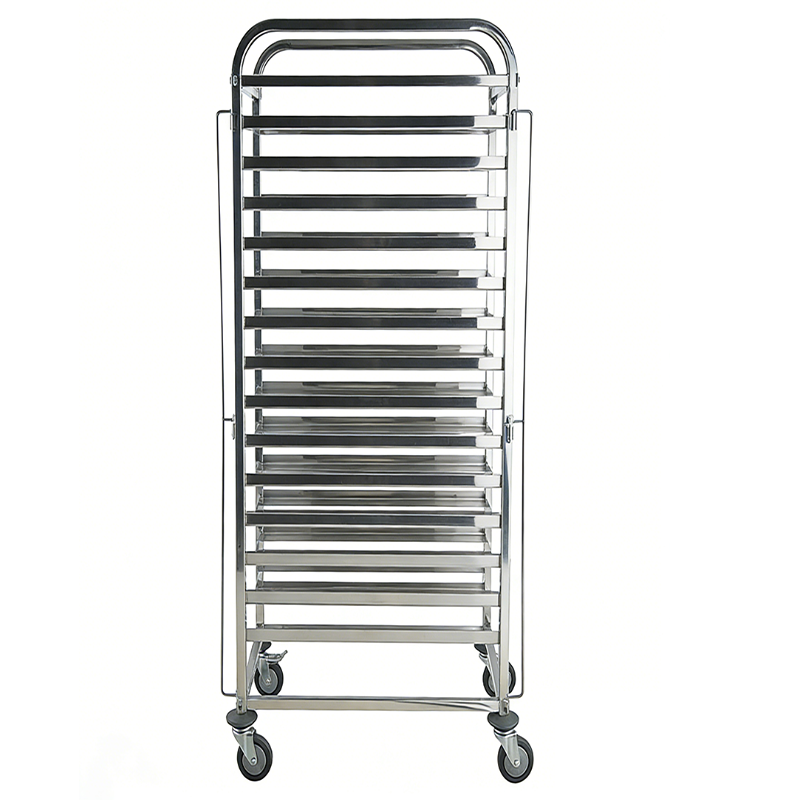

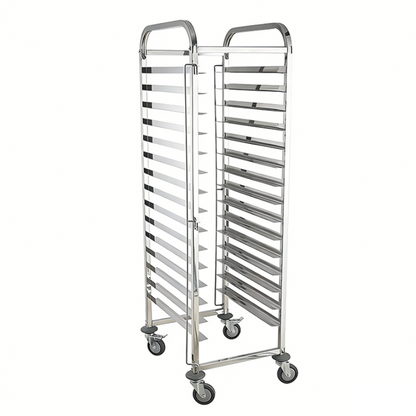

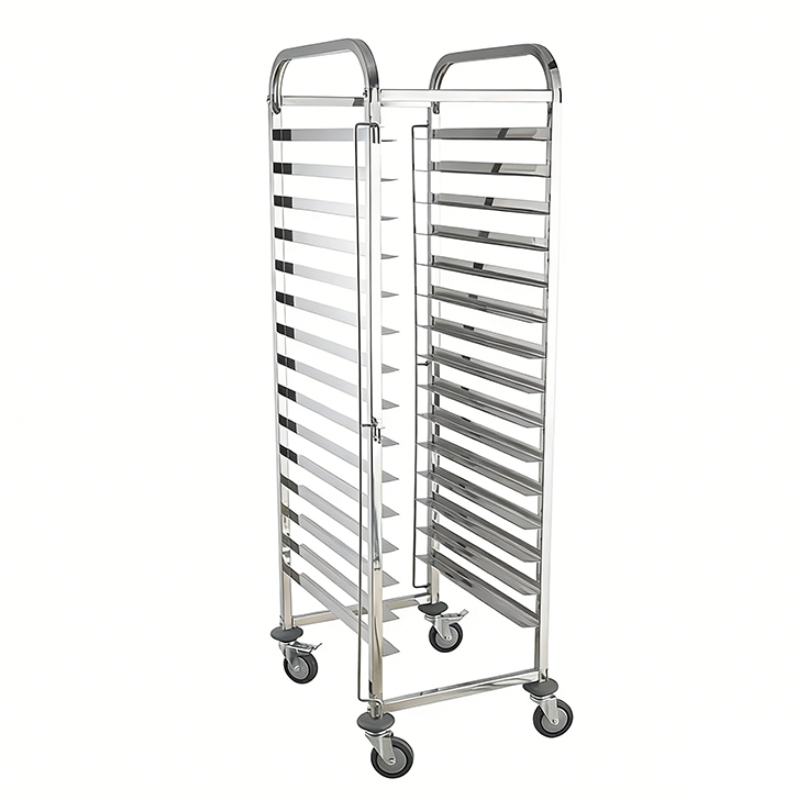

Single-Column 15/20-Tier Layout

This page is focused on a compact single-column bakery tray rack using 15 or 20 vertical tray levels.

A single-column structure is useful when the buyer needs:

• A narrower rack footprint
• Easy movement through bakery work areas
• One tray column that can be accessed directly
• 15- or 20-level capacity without moving to a wider double-section frame

For buyers requiring substantially higher capacity through two side-by-side tray sections, SENFON also supplies a dedicated Double Section Sheet Pan Rack.

When to Choose the Main Sheet Pan Rack Trolley Series

This 15/20-tier page is intended for buyers whose primary decision is the number of vertical tray levels and bakery batch capacity.

If your project is still comparing single-row versus double-row structures, multiple custom trolley dimensions, broader food-pan applications or different tray-rack formats, review the Commercial Stainless Steel Sheet Pan Rack Trolley main product page.

This separation allows buyers to choose between a capacity-focused 15/20-tier bakery rack and the wider sheet-pan trolley product family.

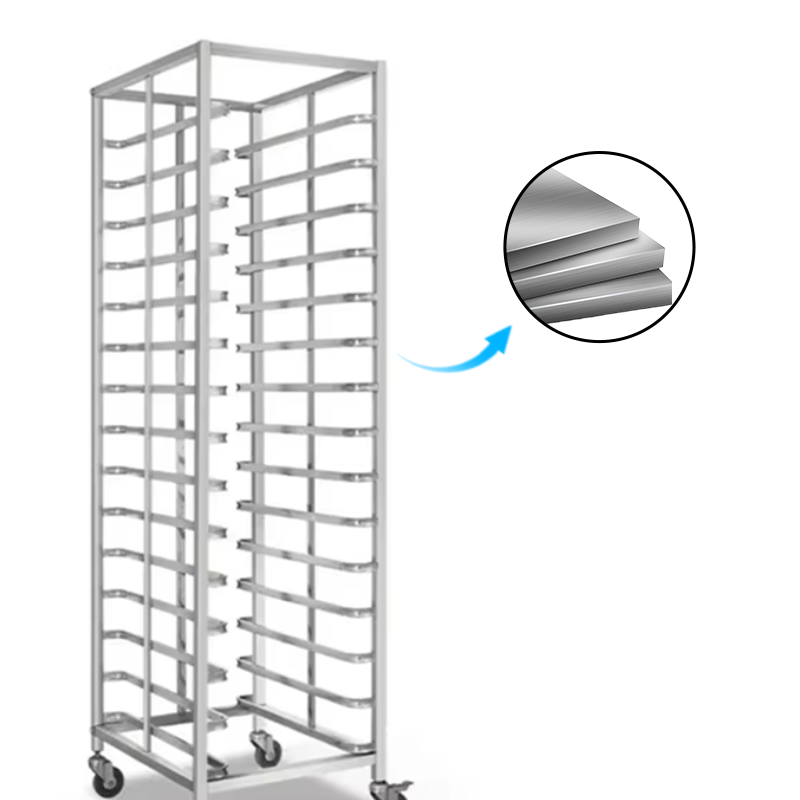

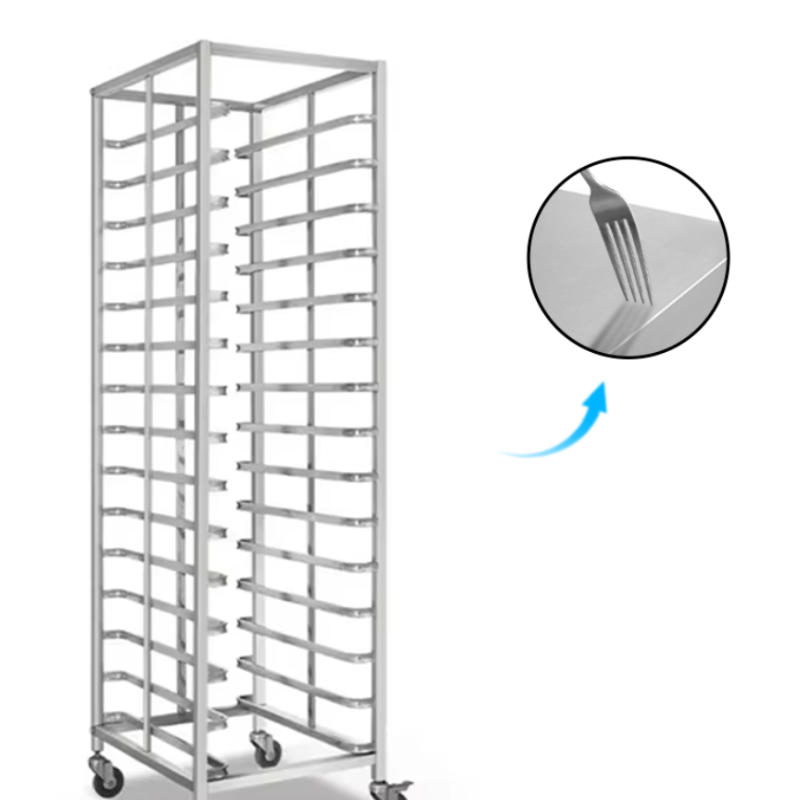

Stainless Steel Frame and Rail Construction

The frame and tray runners should be specified according to rack height, tray dimensions, number of levels, expected loading and movement frequency.

Available production requirements can include:

• SUS201 or SUS304 stainless steel
• Custom frame tube dimensions
• Specified tube and rail thickness
• Welded tray-support rails
• Reinforced frame connections where required
• Custom top and base structure

Material thickness should be confirmed by component rather than describing every part of the rack with one general thickness value.

15/20-Tier Rack Specification Checklist

Castors Should Match the Bakery Route

A tray rack that remains in one preparation area has different wheel requirements from a rack that repeatedly moves between production zones.

Castor selection should consider:

• Total loaded rack weight
• Floor surface
• Thresholds and floor joints
• Required turning radius
• Noise requirements
• Brake arrangement
• Ambient and nearby process temperature

Silent, heavier-duty and selected heat-resistant castor configurations can be reviewed according to the actual application. The required operating temperature should be provided when heat resistance is important.

Rack Height, Doorways and Aisle Clearance

A high-capacity tray rack must fit not only the trays but also the building route.

Before approving the overall dimensions, check:

• Kitchen doorway width
• Elevator or goods-lift dimensions
• Bakery aisle width
• Turning space near ovens and worktables
• Maximum acceptable rack height
• Ceiling fixtures or low obstacles
• Storage position when the rack is not in use

This is particularly important for 20-tier racks because buyers often try to maximize capacity while still needing practical movement through the bakery.

Choosing Tier Count by Product Height

A higher tier count is not automatically the better specification.

For low-profile products and shallow trays, closer rail spacing may allow a 20-tier layout to use the vertical space efficiently.

For bread, deeper pans, tall pastries or products that require more clearance, a 15-tier configuration or customized spacing may provide a more useful operating arrangement.

The target product height should therefore be included when a distributor or bakery specifies its rack range.

Bakery Rack for Distributors and Equipment Dealers

For bakery-equipment distributors, 15-tier and 20-tier versions can serve different customer segments without requiring completely different product families.

A distributor can define separate models by:

• Tier quantity
• Tray format
• Overall rack height
• Rail spacing
• SUS201 or SUS304 material
• Castor grade
• Brake configuration
• Finished or compact export structure

This provides a clearer specification than marketing every tray rack only as “heavy duty” or “professional.”

Export-Oriented KD and Packing Considerations

For B2B export orders, rack geometry affects shipping volume because a tall assembled frame can occupy considerable container space.

Where the selected construction permits, an export-oriented detachable or knock-down structure can be reviewed to reduce occupied packing volume.

The packing design should protect:

• Tray rails from bending
• Frame corners and connection points
• Brushed stainless steel surfaces
• Castors and brake mechanisms
• Loose assembly hardware

The final packing method depends on rack construction, quantity, destination and shipping method.

Information Needed Before Quotation

For a 15- or 20-tier bakery rack quotation, send:

1. 15-tier or 20-tier requirement
2. Tray length × width × height
3. Tray edge or rim detail if available
4. Required clear spacing between trays
5. Expected loaded weight per tray
6. Required overall rack dimensions if fixed
7. SUS201 or SUS304 material requirement
8. Castor and brake requirements
9. Operating environment and temperature if relevant
10. Finished or export-oriented detachable structure preference
11. Order quantity
12. Destination country or market

A tray drawing or physical tray specification is especially useful because it allows the rail geometry to be checked before production.

15/20-Tier Bakery Tray Rack FAQ

1. Should I choose a 15-tier or 20-tier sheet pan rack?

Choose according to tray height, product height and required vertical clearance. A 20-tier rack provides more tray positions, while a 15-tier rack can provide greater clearance when taller products or deeper pans are used.

2. Can the rail spacing be customized?

Yes. Rail pitch can be adjusted according to the buyer's tray dimensions and required usable clearance.

3. Do I need to provide my baking tray dimensions?

Yes. Providing the actual tray length, width, height and edge profile is the safest way to ensure that the rails match the buyer's pans.

4. Can the rack fit different international tray sizes?

SENFON can manufacture racks for different tray dimensions, but one rack should not be assumed to fit every tray standard automatically. Confirm the actual pan size before production.

5. Is this a proofing rack?

It can hold trays during bakery staging, but the open rack itself does not control temperature or humidity. Controlled proofing requires appropriate proofing equipment.

6. Can hot baking trays be loaded onto the rack?

The required operating temperature, tray temperature and castor environment should be provided before production so suitable materials and wheel options can be reviewed.

7. Can the rack be used for cooling baked products?

It can provide organized open tray staging and cooling where that process is appropriate for the food product and facility workflow.

8. Are baking trays included?

Trays should only be considered included when they are specifically listed in the quotation. The standard product scope should be confirmed before ordering.

9. Can I order both 15-tier and 20-tier models?

Yes. B2B buyers can discuss multiple rack specifications in one purchasing program, provided each model's tray size, rail spacing and configuration are clearly defined.

10. Can the overall rack height be customized?

Yes. Overall dimensions can be reviewed together with tier quantity, tray clearance, doorway height, operator use and structural requirements.

11. What is the difference between this product and the main Sheet Pan Rack Trolley page?

This page focuses specifically on 15- and 20-tier bakery capacity planning. The main Sheet Pan Rack Trolley page covers the broader single-row and double-row product family and more general tray-rack configurations.

12. What if we need two tray columns side by side?

For higher-capacity side-by-side tray storage, review SENFON's dedicated Double Section Sheet Pan Rack and provide the required tray size and total capacity.

Related Bakery Racks & B2B Resources

• Commercial Stainless Steel Sheet Pan Rack Trolley – the main product family for custom single-row and double-row tray rack configurations.
• Double Section Stainless Steel Sheet Pan Rack – higher-capacity side-by-side tray storage for bakeries and production kitchens.
• Commercial Stainless Steel Carts & Utility Trolleys – compare tray racks, utility carts, service trolleys, platform trucks and specialized transport equipment.
• Stainless Steel Trolley Buying Guide – compare tray racks, service trolleys, platform trucks, castors, load requirements and export structures.
• OEM/ODM Customization Services – submit tray dimensions, rack capacity, drawings and distributor specifications for custom production.

Request a 15/20-Tier Bakery Rack Quote

If you are sourcing a 15-tier or 20-tier stainless steel bakery tray rack, send SENFON your tray dimensions, required tier quantity, rail clearance, expected load, stainless steel material, castor requirement, quantity and destination.

Send Your Bakery Tray Rack Requirements →
