Commercial Multi-Tier Stainless Steel Wall Shelf System
This multi-tier stainless steel wall shelf system uses separate solid shelf panels installed at approved heights. SENFON manufactures custom shelf length, projection, rear upstand, vertical spacing, brackets, material, actual thickness and fixing details for commercial projects.
- Separate solid shelf panels
- One- or multi-tier wall layout
- Rear upstand on each shelf
- Custom vertical spacing
- Site-specific bracket and fixing plan
PRODUCT DETAILS
Specifications, Options & Buying Information
Commercial Multi-Tier Stainless Steel Wall Shelf System: This commercial multi-tier stainless steel wall shelf system uses separate solid shelf panels to create one, two or more wall-storage levels. Each shelf can include a rear upstand and folded front edge, while the vertical spacing is set around stored items and operator reach.
The final tier count is a site layout, not an assumed standard. Buyers should provide wall width, services, mounting heights, stored-item dimensions and required access between tiers. SENFON supplies this model for importers, distributors, wholesalers and project buyers; it is not presented as a household retail or ready-stock product.
Product Highlights
- Separate solid shelf panels
- One- or multi-tier wall layout
- Rear upstand on each shelf
- Custom vertical spacing
- Site-specific bracket and fixing plan
Configurations and Order-Specific Options
| Specification | Configuration and confirmation basis |
|---|---|
| Tier arrangement | Separate shelves installed as one- or multi-tier system |
| Shelf surface | Solid stainless steel panels |
| Rear edge | Upstand/backsplash according to drawing |
| Vertical spacing | Specified for stored items and reach |
| Mounting | Independent brackets and fixing points per shelf |
| Site coordination | Check wall services, corners and adjacent equipment |
| Material options | SUS201 or SUS304 are standard quotation options; SUS316 or SUS430 only when explicitly requested and reviewed for the application |
| Actual thickness | Specified separately for the sheet, panel, tube, bracket, frame or other components used in the selected structure |
How to Select and Specify This Product
Choose this system when several independent solid wall shelves form a vertical layout. Choose a track-mounted system when adjustable rails and repositionable brackets are required. Choose a worktable over-shelf when posts are fixed to a table rather than a wall.
When comparing quotations, make sure every supplier describes the same product entity, usable dimensions, component-level material and actual thickness, structural interfaces, included accessories, quantity and packing. General labels such as heavy duty, premium or custom should not replace measurable order specifications.
Material, Thickness and Construction
For this shelving product, SENFON can review SUS201, SUS304, SUS316 or SUS430 by component and operating environment. SUS304 is commonly considered for wet or frequently cleaned foodservice areas; other grades should be selected only against the buyer's approved specification. Actual sheet and tube thickness must be stated by component. Load performance depends on span, shelf form, brackets or posts, reinforcement, fixings and load distribution together, so no fixed load value should be published without an approved structure and test basis.

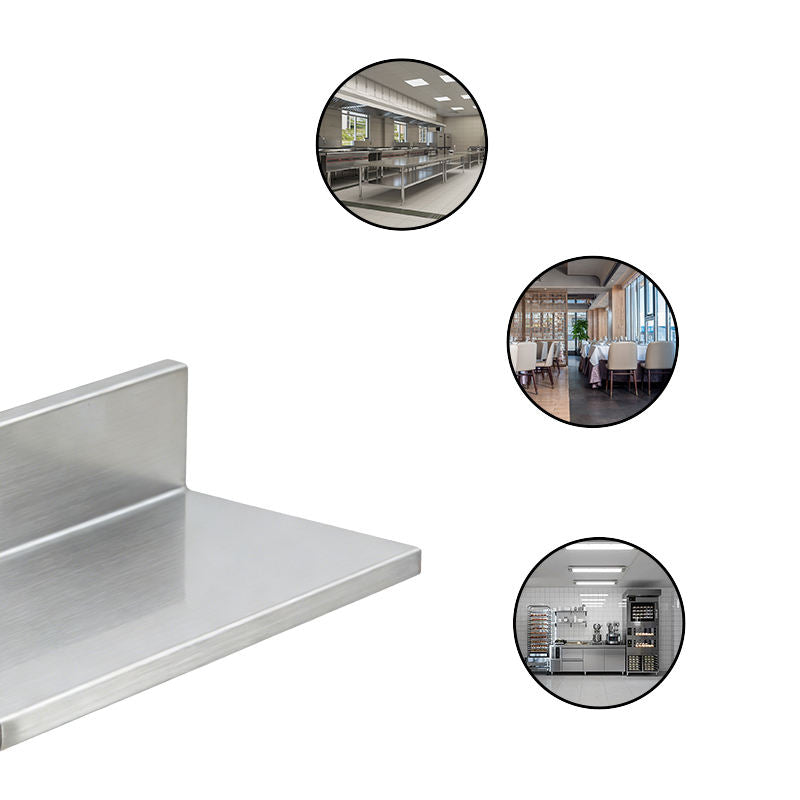

Recommended Applications
- Ingredient and container storage above prep areas
- Hotel and restaurant wall storage
- Canteen and bakery work zones
- Custom multi-level project layouts
OEM, Packing and B2B Supply
SENFON manufactures this product at its commercial stainless steel equipment factory in Shandong, China. Dimensions, interfaces and component specifications are developed from the buyer's confirmed requirements and approved drawing. Welded, modular or knock-down supply is selected only when it is suitable for the product's structure and intended use.
Packing is planned after the finished dimensions, quantity, fragile components, assembly format, container loading and handling risk are known. Carton, internal protection, wooden frame or crate requirements must be stated in the quotation rather than assumed from a generic product page.
Frequently Asked Questions
Are all tiers connected?

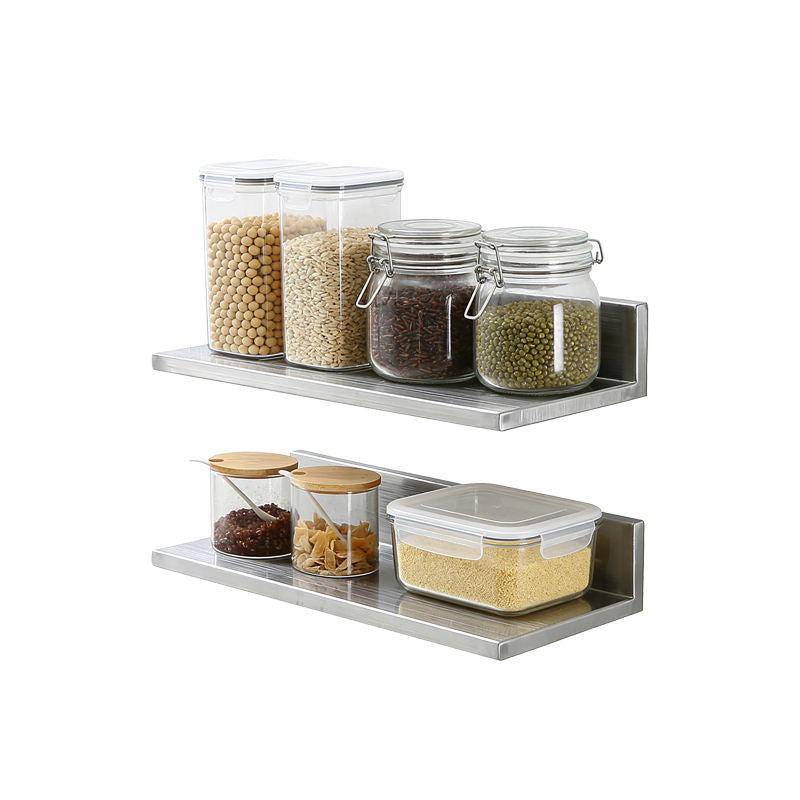

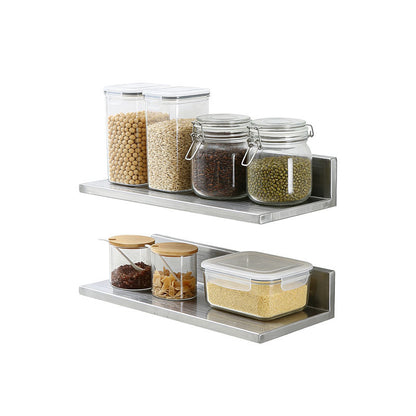

The pictured concept uses separate wall shelves; the approved drawing determines whether any rails or shared supports are used.
Can different shelf depths be used?
Yes, if reach, clearance, wall load and surrounding equipment are reviewed.
How many tiers can be installed?
Tier count depends on wall height, access, stored items and the approved fixing design.
Related Products and Buyer Guides
- Double-Tier Wall Shelf with Track System
- Single-Tier Wall Shelf Assembly Guide
- Commercial Stainless Steel Shelving & Storage Racks
- Stainless Steel Shelving Guide
- OEM/ODM Customization Services
Request a B2B Quote
To quote this commercial multi-tier stainless steel wall shelf system, send SENFON the number of shelves, wall width and condition, each shelf length and projection, rear upstand, vertical spacing, stored items, distributed load, bracket and fixing scope, material and actual thickness, quantity, packing and destination. SENFON will review the product identity, manufacturing scope and missing inputs before issuing a model-specific B2B quotation.
