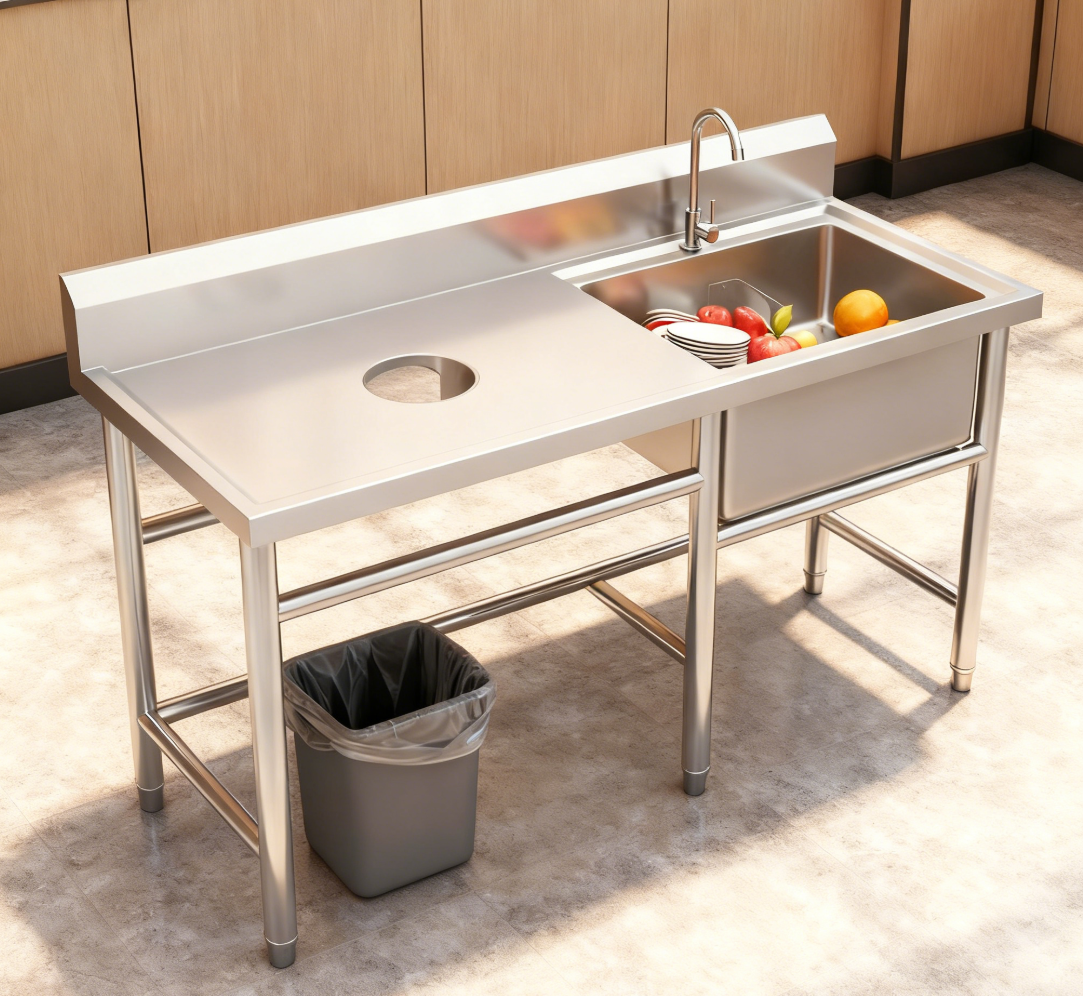

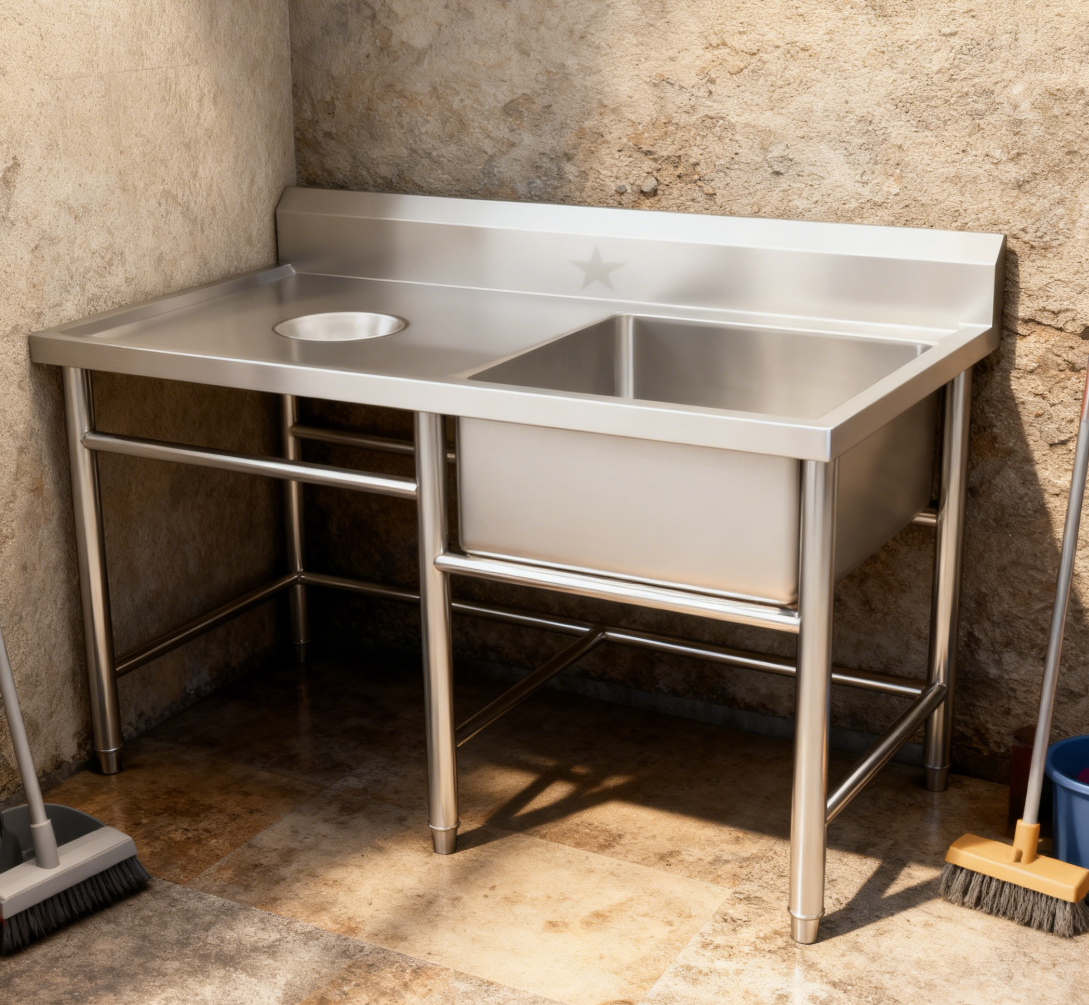

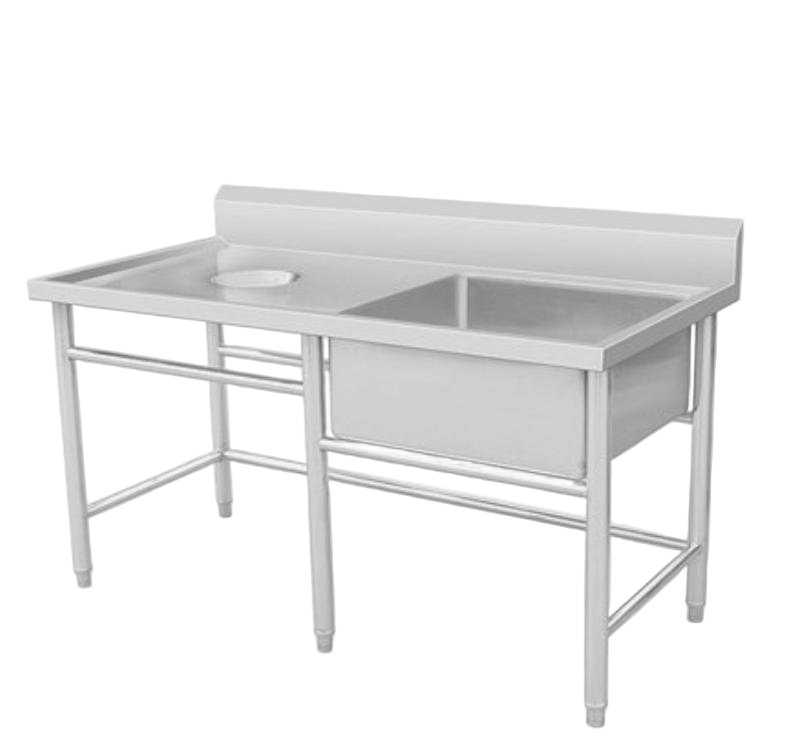

Commercial Soiled Dish Table with Scrap Chute & Sink Bowl (KD)

A commercial soiled dish table is not simply a stainless steel sink table placed beside a dishwasher. Its main purpose is to organize the dirty-dish side of a commercial warewashing line: receiving used dishes, removing food waste, supporting pre-rinse or sink work, preparing dish racks and transferring them toward the dishwasher inlet.

This soiled dish table with scrap chute and sink bowl combines a waste-scraping position, sink area and mobile-bin clearance within one stainless steel workstation. SENFON can coordinate table dimensions, left-to-right or right-to-left workflow, scrap chute position, sink configuration, lower-frame clearance, material and KD export structure according to the approved dishroom layout.

For other commercial washing and sink structures, view our Commercial Stainless Steel Sinks & Sink Tables.

Designed Around the Soiled-Dish Workflow

A practical dishroom normally has a clear sequence before dishes enter the washing machine. The exact equipment arrangement varies by project, but the soiled side commonly follows this logic:

The purpose of this table is to support the first stages of that workflow rather than function as a generic preparation worktable.

For B2B projects, the table should therefore be specified according to the dish-return direction, operator position, waste-bin location, sink requirement and dishwasher-side handoff instead of selecting dimensions from appearance alone.

Scrap Chute for Food-Waste Removal

The scrap chute provides a dedicated point where operators can clear food residue before dishes move to the sink, pre-rinse zone or dishwasher.

The opening should be coordinated with the actual waste path. Important project inputs include:

• scrap chute size and position;
• operator working side;
• waste-bin dimensions;
• bin rim and overall height;
• bin wheels or handles where they affect clearance;
• bin insertion and removal direction;
• clear space below the chute;
• required cleaning access around the opening.

The current product structure uses a formed scrap-chute arrangement integrated into the stainless steel top. Final geometry should still be confirmed according to the approved drawing and selected waste container.

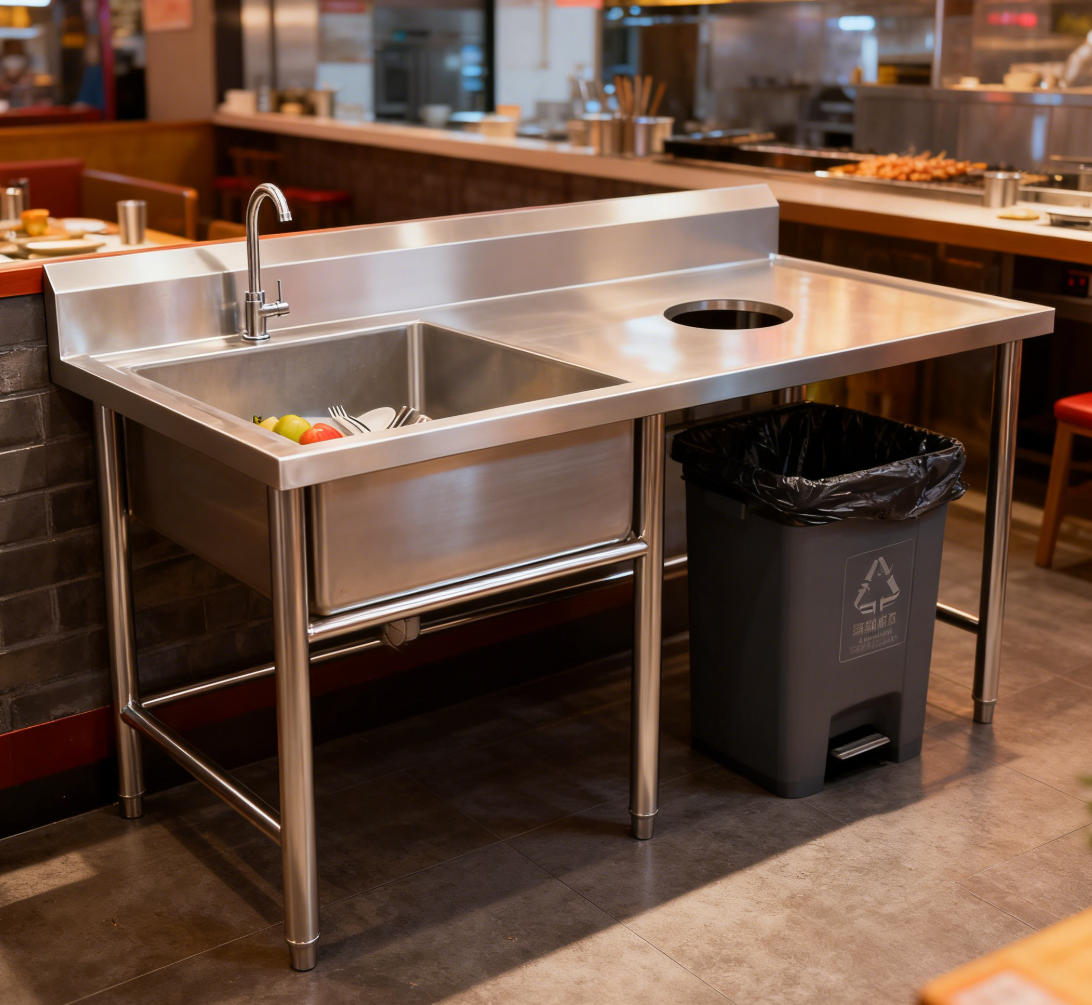

High-Clearance Frame for Waste-Bin Access

A key structural feature of this model is the raised front support arrangement below the scrap-chute area. This provides additional clearance for moving a commercial waste bin beneath the opening.

The lower frame should be designed around the actual container instead of assuming that every commercial bin has the same dimensions.

Before production, buyers should provide the bin width, depth, height, wheel height and pull-out direction where available. This allows the lower supports and braces to be reviewed against the required removal path.

Sink Bowl and Pre-Rinse Working Zone

The sink section supports the wet side of the soiled-dish workflow. Depending on the approved project configuration, it may be used for rinsing, soaking, residue removal or preparation before dishes are placed into racks for machine washing.

The bowl should be selected according to the actual ware handled. Useful information includes:

• sink bowl length, width and depth;
• largest plates, trays, containers or utensils handled;
• required working clearance inside the bowl;
• drain position and outlet requirement;
• faucet or pre-rinse spray mounting requirement;
• backsplash or side-splash requirements.

A faucet, pre-rinse spray assembly or other water fitting should only be included when it appears in the approved quotation or drawing.

Left-to-Right or Right-to-Left Dishroom Flow

The table can be coordinated for either left-to-right or right-to-left operating flow according to the kitchen layout.

This is more important than simply mirroring the appearance of the product. Changing the workflow direction can affect:

• scrap chute position;
• sink bowl position;
• operator standing position;
• waste-bin access;
• dish rack travel direction;
• dishwasher inlet position;
• water and drainage connection locations.

For project orders, SENFON recommends confirming the complete working direction before the final drawing is approved.

Dishwasher Inlet Interface

A soiled dish table may operate immediately before a commercial dishwasher, but buyers should not assume that every table automatically connects to every dishwasher model.

If the table will connect directly to the machine, provide the dishwasher model or technical drawing where possible. Important interface information may include:

• machine-side working height;
• dish rack travel direction;
• distance between the table and machine opening;
• required table edge or interface detail;
• rack-support or track requirement;
• water-return or splash-control requirements;
• any project-specific connection hardware.

For projects requiring a complete matching inlet and outlet table system around the dishwasher, see our Custom Stainless Steel Dishwasher Inlet & Outlet Tables.

Soiled Dish Table vs Complete Dishwasher Tabling System

Soiled Dish Table vs Waste Collection Table

This product should also be separated from a standard stainless steel waste collection table.

A waste collection table mainly uses a scrap opening above a bin to support food-waste sorting or disposal. This soiled dish table adds a sink bowl and dishroom workflow, making it suitable for the dirty-dish side of a warewashing area.

Buyers requiring only a waste opening without the integrated sink and dishroom function can review the Commercial Stainless Steel Waste Collection Table with Scrap Hole.

Water Supply and Drainage Planning

Water and drainage requirements should be confirmed as part of the project specification rather than left until installation.

Relevant information can include:

• faucet or pre-rinse spray requirement;
• mounting-hole position;
• water-supply entry direction;
• sink drain position;
• drain outlet size or fitting requirement;
• local plumbing arrangement;
• backsplash or side-splash requirements;
• required clearance for traps and plumbing below the table.

The sink, plumbing and dishwasher interface should be checked together when the project uses a compact dishroom layout.

Dish Rack Loading and Machine-Side Handoff

After scraping and pre-rinse work, dishes are commonly arranged in racks before entering the dishwasher. The table should therefore provide enough usable space for the intended rack-handling process.

If the project uses a specific commercial dish rack size, buyers should provide its external dimensions together with the dishwasher information.

The final tabletop layout should provide practical clearance for dirty dishes, the sink, scrap chute and rack preparation without forcing these operations into the same small working zone.

Key Specification Checklist

Why Overall Dimensions Depend on the Dishroom Layout

There is no single ideal length for every soiled dish table. The required footprint depends on how much space must be allocated to dish landing, the scrap opening, sink bowl and dish-rack preparation area.

Before selecting the overall table length and depth, buyers should consider:

• expected dish-return volume;
• available wall or line length;
• sink dimensions;
• scrap chute location;
• dish rack size;
• operator working position;
• dishwasher location;
• required aisle clearance.

For custom kitchen projects, a simple layout drawing can provide more useful information than selecting dimensions from a generic product photograph.

Backsplash and Splash-Control Details

The dirty-dish and pre-rinse area can generate water and food residue, so backsplash and edge details should follow the actual installation.

Rear splash protection, side splashes or project-specific edge details can be considered according to wall position, adjacent equipment, sink location and cleaning workflow.

These features should be confirmed on the final drawing instead of being assumed to be identical on left-hand and right-hand configurations.

SUS201 and SUS304 Material Options

The current product can be specified in SUS201 or SUS304 stainless steel according to the approved order requirement.

Material selection should be considered together with the destination market, operating environment, cleaning routine, project specification and purchasing target.

Actual thickness should be confirmed by component and approved specification rather than described only with a generic “heavy-duty” claim.

KD Structure for Export Projects

This product can use a knock-down (KD) structure for overseas B2B orders. The final KD arrangement should preserve the required relationship between the worktop, scrap chute, sink, legs, braces and waste-bin clearance after assembly.

Packing should protect the stainless steel top, formed opening, sink area, frame components and hardware from contact damage during transport.

For large project quantities, the final packing method should be confirmed from the actual dimensions and order configuration rather than assuming one carton format for every table.

What B2B Buyers Should Confirm Before Quotation

For a more accurate soiled dish table quotation, provide:

1. Required overall table length, depth and working height
2. Left-to-right or right-to-left dish flow
3. Scrap chute dimensions and preferred position
4. Waste-bin dimensions and removal direction
5. Sink bowl length, width and depth
6. Largest dishes, trays or utensils handled
7. Faucet or pre-rinse spray requirement
8. Drain position and outlet requirement
9. Backsplash and side-splash requirements
10. Commercial dish rack dimensions if relevant
11. Dishwasher brand, model or machine drawing if direct connection is required
12. Machine-side table or rack-track height if available
13. SUS201 or SUS304 material requirement
14. Required actual thickness by component if already specified
15. KD or other structural requirement
16. Quantity and destination market
17. Dishroom layout or reference drawing if available

For drawing-based development, review our OEM/ODM Commercial Kitchen Equipment Customization Services.

Commercial Soiled Dish Table FAQ

What is a soiled dish table?

A soiled dish table is installed on the dirty-dish side of a commercial warewashing area. It provides space for receiving used dishes, removing food waste, rinsing or sink work, preparing dish racks and transferring them toward the dishwasher.

Is a soiled dish table also called a dirty dish table?

Yes. “Soiled dish table” and “dirty dish table” are both used in the commercial foodservice equipment market for the table located before the washing machine on the dirty-dish side.

What is the purpose of the scrap chute?

The scrap chute allows food waste to be directed toward a container below the worktop before dishes continue through the pre-rinse and washing process. The opening and lower clearance should be matched to the selected waste bin.

Can the scrap chute and sink positions be reversed?

The table can be coordinated for left-to-right or right-to-left workflows. Final chute, sink and working-zone positions should follow the approved dishroom layout.

Is the waste bin included?

It should only be treated as included when it appears in the approved quotation. If the buyer sources the bin locally, its dimensions should still be provided so the chute and lower-frame clearance can be matched correctly.

Can a pre-rinse spray be installed?

Pre-rinse spray or faucet requirements can be incorporated into the project specification. Mounting position, water connection and required holes should be confirmed before production.

Can this table connect directly to a commercial dishwasher?

A direct interface can be reviewed when the dishwasher information is available. Buyers should provide the machine model or drawing so working height, rack direction and connection details can be checked.

What is the difference between this product and a dishwasher inlet table?

This product is specifically centered on dirty-dish receiving, food-waste scraping and sink/pre-rinse work. A full dishwasher inlet table may additionally require machine-specific rack tracks, hooks and other direct connection details. Complete inlet and outlet table systems should be specified around the dishwasher drawing.

Can the working direction be customized?

Yes. Left-to-right and right-to-left configurations can be developed according to the dish-return point, operator position and dishwasher location.

Can the product be supplied in KD structure?

Yes. A KD configuration can be coordinated for export orders according to the approved dimensions and structural design.

What information should I send for a quotation?

Send the table dimensions, workflow direction, scrap chute and bin dimensions, sink size, water and drain requirements, dishwasher information if applicable, material, thickness requirement, quantity, destination and any available dishroom drawing.

Request a Soiled Dish Table Quotation

If you are sourcing a commercial soiled dish table or scrap chute dish table for a restaurant dishroom, commercial dishwasher project or equipment distribution program, send SENFON your dishroom workflow, table dimensions, sink requirement, waste-bin dimensions and dishwasher information.

We can review the dirty-dish workflow and coordinate the table configuration before quotation.
