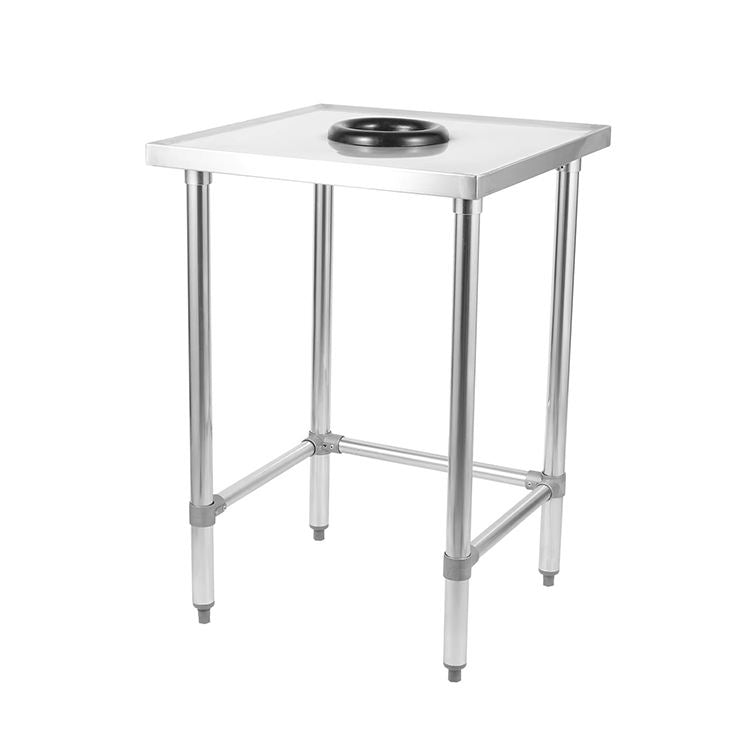

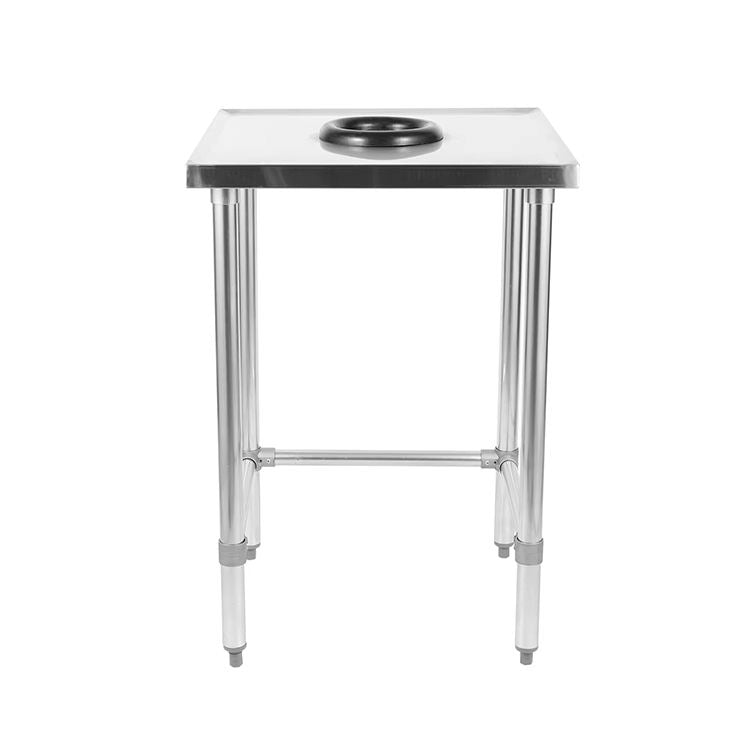

Commercial Stainless Steel Waste Collection Table with Scrap Hole

Scrap-Hole Table Specification

Available Waste-Table Layout and Size Families

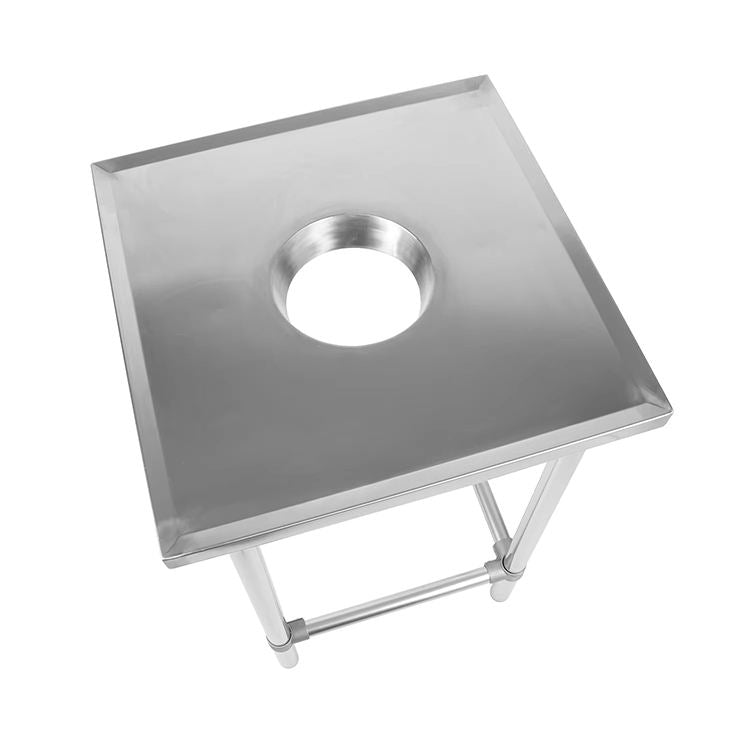

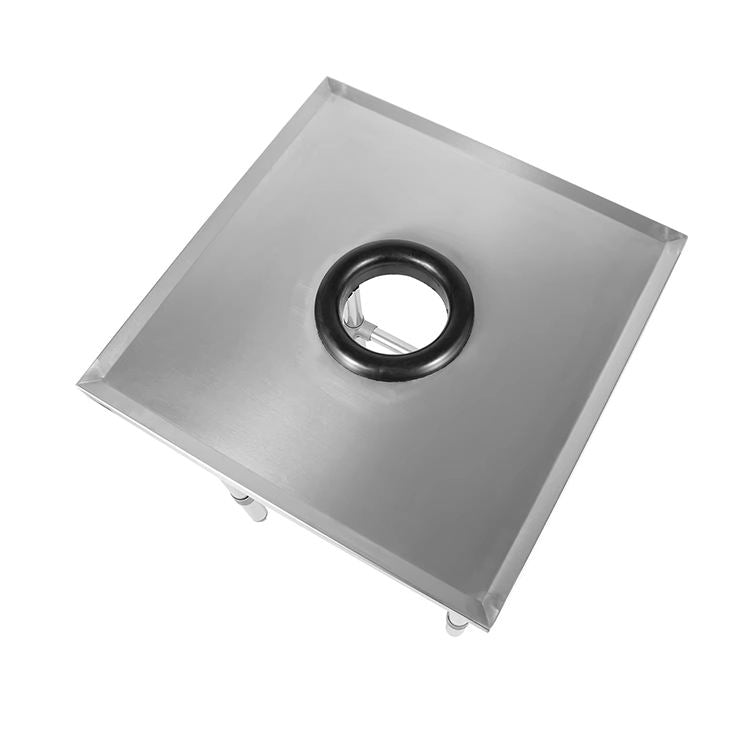

The current reference uses a deep-drawn round scrap opening above a waste container and explicitly separates this product from a sink table.

Match the Scrap Opening to the Waste Path

Match the Container

Provide the exact bin size, rim height, wheels and pull-out direction. A generic opening can interfere with removal or leave gaps.

Control the Waste Path

Confirm whether scraps are dry, wet, sharp or bulky so the opening edge, splash protection and cleaning access can be reviewed.

Engineer the Opening Around the Waste Stream

Dry packaging scraps, wet food waste and bulky offcuts behave differently as they pass through an opening. The buyer should state the material handled, typical piece size and whether a removable collar, chute or edge treatment is required. The opening must remain far enough from folded edges and reinforcement to preserve the intended top structure. Its location should be dimensioned from fixed table edges, not marked approximately on a photograph.

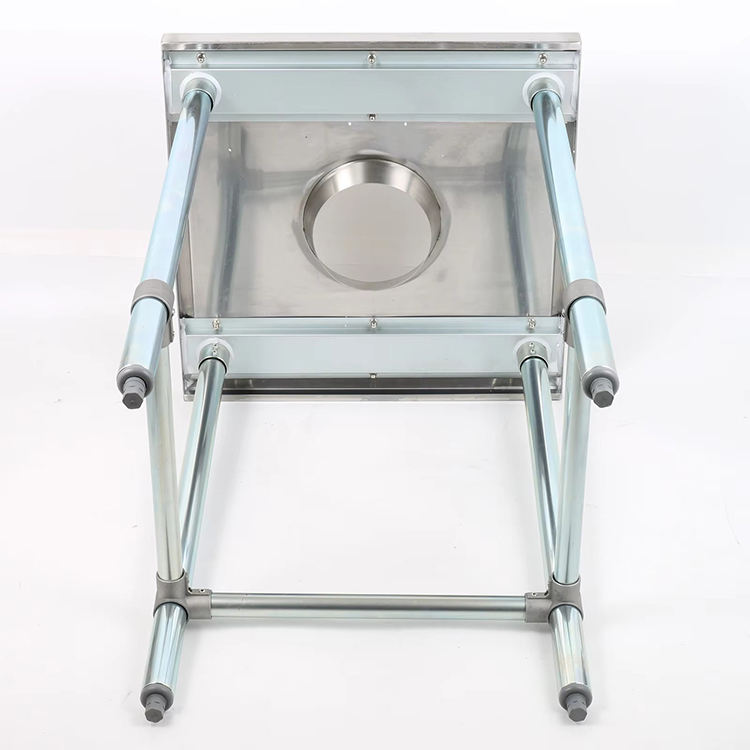

The bin must clear legs, braces, undershelves and the floor during removal. Provide rim height, wheel height and handle projection as well as overall bin dimensions. If the bin is sourced locally, the quotation should clearly exclude it while the drawing uses the approved interface dimensions. Wet waste may also require additional splash and cleaning decisions; drainage is not assumed unless shown.

Review Cleaning and Operator Safety

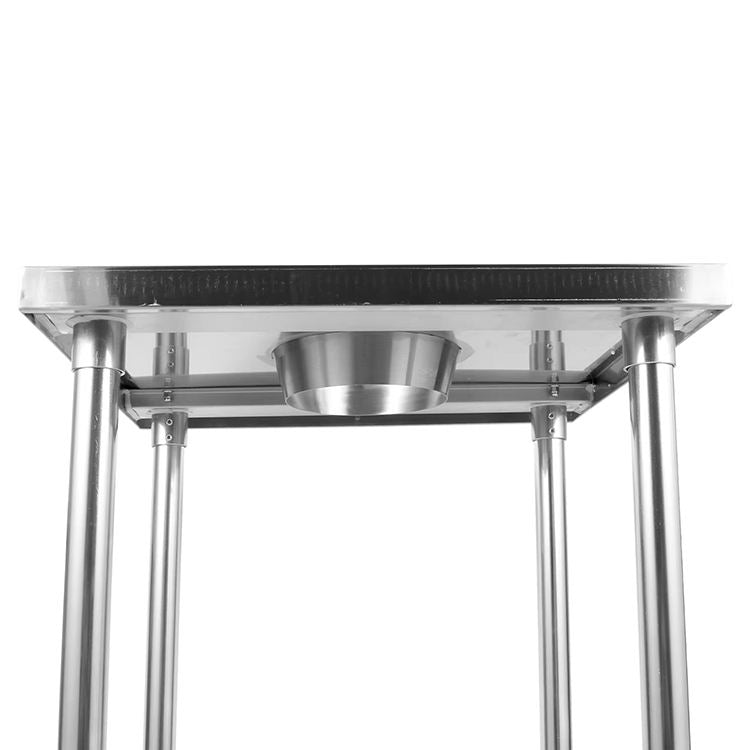

The cut edge, underside of the opening and surrounding worktop should be accessible for cleaning. State whether the operator pushes waste from one direction or works from multiple sides, because this affects guards and opening position. Actual stainless steel grade and thickness are confirmed by component. No universal hygiene, load or corrosion claim should replace the approved application and cleaning process.

Drawing Inputs for a Waste Collection Table

• Table and bin dimensions
• Opening size, shape and center position
• Operator side and bin removal direction
• Top profile, splash guards and lower structure
• Material, thickness, quantity, packing and destination

Use the OEM/ODM drawing review for a non-standard opening, collar, chute or locally sourced bin interface.

Verify the Opening Against the Selected Bin

The opening and container must be inspected as one interface even when the bin is sourced locally.

• Measure opening diameter and center from fixed edges.
• Check bin rim, wheels, handles and pull-out clearance.
• Inspect the underside and drawn edge for cleaning access.
• Confirm that no sink bowl or drain is implied unless shown on the drawing.

Separating the Opening and Frame During Packing

The formed opening and worktop edges need impact protection, while legs and hardware are restrained away from polished faces. KD or welded packing is selected from the final dimensions and route.

Scrap-Opening Fabrication and Order Scope

The scrap opening, collar, bin interface, reinforcement and cleaning access are manufactured from the approved drawing. Material grade, actual thickness, leg structure, backsplash and welded or KD construction are confirmed per order. Any bin or accessory is included only when it appears in the quotation.

Compare Waste-Handling Table Structures

• Stainless Steel Prep Station With Drawers And Waste Bins — combine waste handling with drawers and splash protection.
• Enclosed Stainless Steel Prep Cabinet With Waste Bins — conceal bins inside an enclosed cabinet.
• 2-Tier Stainless Steel Worktable — retain an uninterrupted worktop and full undershelf.
