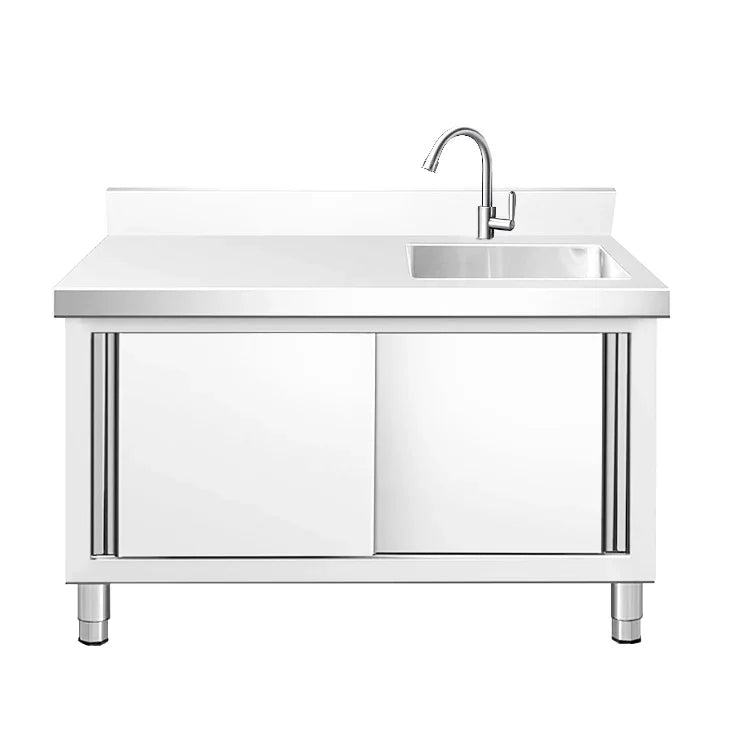

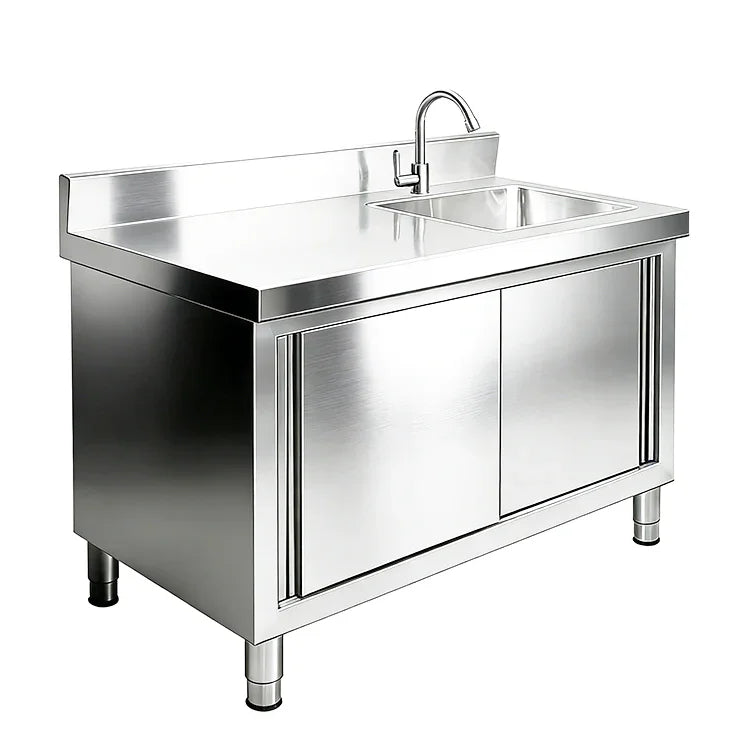

Commercial Stainless Steel Sink Cabinet with Sliding Doors

The Commercial Stainless Steel Sink Cabinet with Sliding Doors combines a stainless steel washing area with an enclosed lower cabinet designed for commercial kitchens where storage, plumbing concealment and limited aisle clearance must be considered together.

Unlike hinged cabinet doors that swing outward into the operator aisle, sliding doors move horizontally across the front of the cabinet. This makes the structure particularly useful for restaurant kitchens, hotel kitchens, central kitchens, canteens and commercial kitchen projects where the sink is installed along a narrow working line or opposite other equipment.

SENFON can coordinate the sink bowl, cabinet width and depth, sliding-door structure, internal storage arrangement, plumbing clearance, backsplash, faucet and drain openings, stainless steel specification, KD construction and export packing according to the buyer's approved drawing and project requirements.

Why Choose Sliding Doors for a Commercial Sink Cabinet?

The main purchasing advantage of this model is not simply that the cabinet has doors. The key difference is the way the doors use the available kitchen space.

A hinged door needs open floor area in front of the cabinet before it can swing fully. Sliding doors stay within the cabinet footprint, allowing staff to access the lower compartment without extending a door panel into the aisle.

This can be useful when:

• The sink is installed in a narrow commercial kitchen aisle
• Another worktable or equipment line is positioned opposite the cabinet
• Operators frequently pass in front of the sink
• Lower storage must remain accessible during kitchen operation
• The project prefers an enclosed cabinet appearance instead of an open-leg sink table

Sliding doors should therefore be selected from the actual aisle and operating layout rather than treated only as an appearance option.

Door Travel, Opening Width & Access

A sliding-door cabinet does not provide the same access opening as a pair of hinged doors. Because the door panels overlap as they move, the usable opening depends on the cabinet width, number of door panels and track arrangement.

Before finalizing the cabinet, buyers should consider:

• Total cabinet width
• Number of sliding door panels
• Maximum clear opening required for stored items
• Door overlap
• Handle or recessed-pull design
• Track position
• Required door removal access for maintenance

If the buyer needs full-width access to the entire lower compartment at one time, a hinged-door or custom cabinet structure may be more appropriate.

For projects requiring different door styles, multiple bowl arrangements or more complex cabinet layouts, see the Custom Stainless Steel Sink Cabinet Unit.

Sink Bowl Layout Above the Cabinet

The upper washing area and lower cabinet cannot be specified independently because the bowl depth, drain position and plumbing route directly affect the usable cabinet space below.

Depending on the project, the sink top can be developed around:

• Single-bowl washing layouts
• Double-bowl configurations where cabinet width permits
• Standard deep-drawn sink bowls
• Custom welded sink bowls for non-standard dimensions
• Rear backsplash
• Faucet openings
• Custom drain positions
• Project-specific countertop dimensions

The bowl should be selected before the internal cabinet layout is finalized because a deeper or wider bowl reduces the storage and service space available underneath.

Plan the Cabinet Around Plumbing, Not Only Storage

One of the most important differences between a normal stainless steel storage cabinet and a sink cabinet is the plumbing inside the lower compartment.

The cabinet may need to accommodate:

• Sink drain outlet
• Waste fitting
• P-trap or other destination plumbing components
• Hot and cold water supply pipes
• Flexible faucet hoses
• Shut-off valves
• Additional plumbing connections specified by the project

These components occupy real cabinet volume and must remain accessible after installation.

For this reason, the cabinet should not be filled with internal shelves before the plumbing route has been reviewed.

Internal Shelf or Open Plumbing Space?

An internal shelf can increase storage capacity, but it is not automatically the best configuration for every sink cabinet.

Where the sink bowl is deep or the drain and trap extend well into the cabinet, a full-width shelf can interfere with plumbing installation and maintenance.

Possible internal layouts include:

• Open cabinet interior without a shelf
• Partial shelf positioned away from plumbing
• Split shelf around drain components
• Removable shelf for easier service access
• Custom internal layout based on the buyer's plumbing drawing

For project orders, SENFON recommends confirming the drain and pipe position before deciding how much lower storage should be added.

Sliding Door Track Design & Daily Cleaning

The door track is a functional part of the cabinet and should be considered during both product selection and daily maintenance.

A commercial kitchen cabinet may be exposed to water, food particles and cleaning residues, so buyers should review:

• Upper and lower track arrangement
• Door-panel alignment
• Sliding clearance
• Track access for cleaning
• Door removal method where applicable
• Handle design
• Edge finishing around the opening

The objective is to maintain smooth door movement while allowing the front opening and track area to be cleaned during routine kitchen maintenance.

Enclosed Base vs. Open Sink Table

A sliding-door sink cabinet serves a different purchasing requirement from an open-leg sink table.

• Sliding-door sink cabinet: provides enclosed lower space, conceals part of the plumbing area and allows storage behind horizontal sliding doors.
• Open sink table: provides easier visual and physical access to plumbing and floor areas but does not enclose the lower section.

The cabinet version is suitable when the project values a finished equipment line and protected lower storage. An open structure may be more practical where unrestricted pipe access and floor cleaning are the highest priorities.

Buyers comparing other sink structures can browse the Commercial Stainless Steel Sinks & Sink Tables range.

Deep-Drawn or Custom Welded Bowl Selection

The cabinet can be paired with different sink bowl constructions according to the required dimensions and purchasing program.

Deep-Drawn Sink Bowl

A deep-drawn bowl is suitable when an existing mold matches the required internal dimensions and the buyer prefers a repeatable formed bowl structure.

See the Commercial Deep-Drawn Stainless Steel Sink Bowl for standard molded bowl sourcing.

Custom Welded Sink Bowl

A fabricated bowl can be considered when the required length, width, depth, drain position or other geometry falls outside the available mold range.

For non-standard bowl requirements, see the Custom Welded Stainless Steel Sink Bowl.

Backsplash, Faucet & Drain Position

The sink top should be coordinated with the installation wall and site plumbing before production.

Important project inputs include:

• Backsplash height
• Faucet-hole quantity
• Faucet center distance
• Drain outlet diameter
• Drain center position
• Hot and cold water inlet position
• Distance between the bowl and rear wall

Changing the drain or faucet position after cabinet fabrication can affect the plumbing route and usable storage space, so these interfaces should be included in the approved drawing.

KD Structure for Export-Oriented Sink Cabinets

This model can use a knock-down structure developed for international B2B shipping. Instead of shipping the complete cabinet only as one fully assembled volume, suitable cabinet components can be packed more compactly and assembled after delivery.

A KD sink cabinet requires more engineering attention than a simple KD open worktable because the finished unit must align several components at the same time:

• Sink top
• Side cabinet panels
• Front frame
• Sliding-door tracks
• Door panels
• Bottom panel
• Rear structure where specified
• Feet and adjustment points

Door alignment should be checked after the cabinet is assembled and leveled.

For the practical assembly sequence, buyers can reference SENFON's KD Sliding Door Worktable Cabinet Assembly Guide.

Cabinet Leveling Affects Sliding Door Performance

A sliding-door cabinet should be installed level. If the frame is twisted or the floor causes one side of the cabinet to sit significantly higher than the other, door movement and alignment can be affected.

Before final use:

1. Place the cabinet in its final installation position
2. Adjust the feet until the top is level
3. Confirm that the cabinet frame is square
4. Install and align both sliding doors
5. Slide the doors repeatedly to confirm smooth travel
6. Check plumbing connections without loading the cabinet excessively

This is particularly important for KD equipment because final alignment is completed during installation.

Typical Specification Checklist

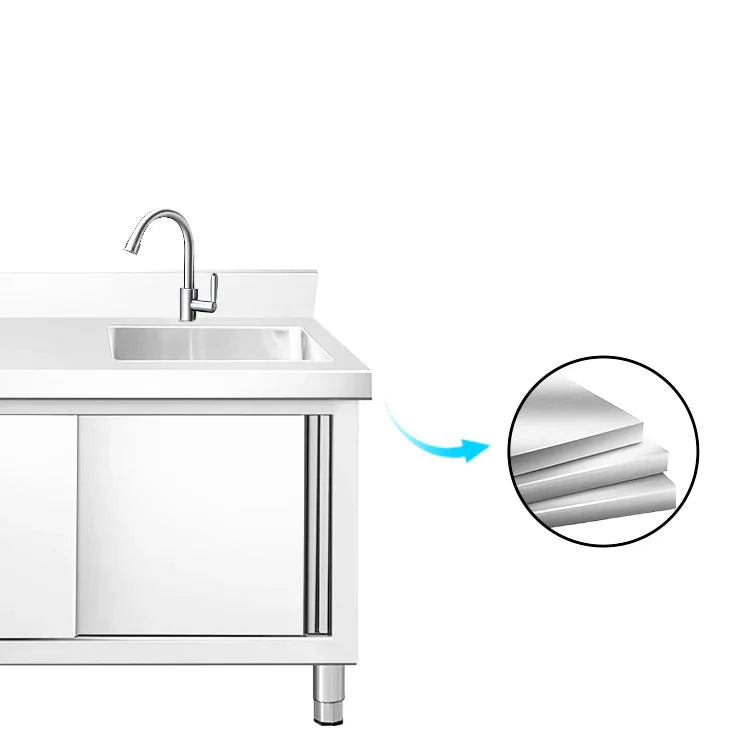

Material & Thickness Should Be Specified by Component

A complete sink cabinet contains several components with different structural functions. For this reason, one headline thickness should not automatically be assumed to apply to the entire product.

The specification can distinguish between:

• Sink top and bowl
• Backsplash
• Door panels
• Side panels
• Bottom panel
• Internal shelf where applicable
• Front frame and reinforcement

Material grade and thickness should be selected together with cabinet dimensions, bowl depth, panel spans, reinforcement and intended application.

Dimension Planning for an Equipment Line

A sink cabinet is often installed beside worktables, dishwasher tables or other stainless steel equipment. Matching the finished depth and working height can create a more practical continuous kitchen line.

Before confirming dimensions, review:

• Available wall length
• Required working height
• Cabinet depth
• Adjacent equipment depth
• Aisle width in front of the sliding doors
• Drain and water positions
• Doorway dimensions for equipment delivery

For broader project dimension planning, see the Commercial Stainless Steel Worktable Dimensions & Project Specification Guide.

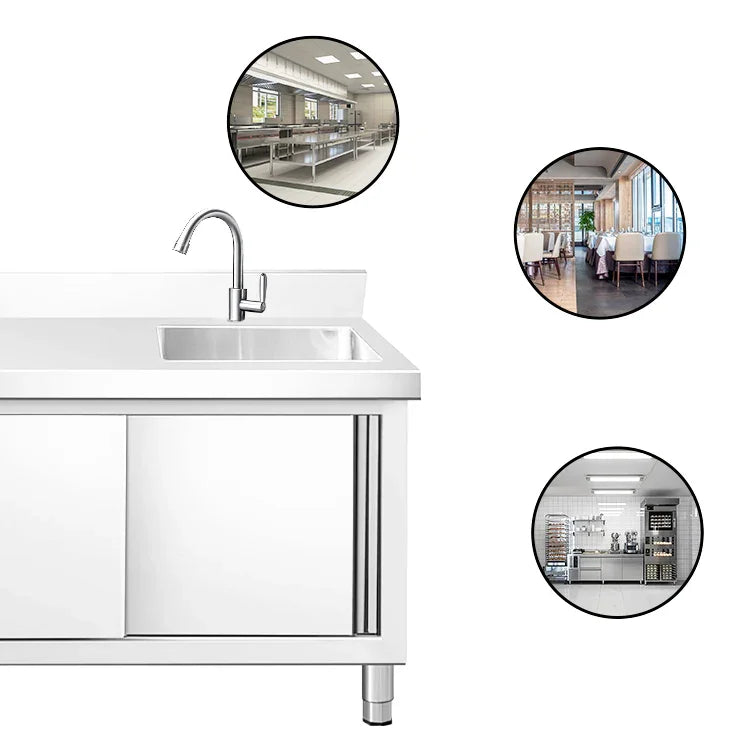

Commercial Applications

A sliding-door sink cabinet can be used where washing and enclosed lower storage are required in one stainless steel unit, including:

• Restaurant kitchens
• Hotel kitchens
• Central and commissary kitchens
• School and institutional kitchens
• Staff canteens
• Catering facilities
• Commercial preparation rooms
• Dishwashing and utility areas
• Commercial kitchen project installations
• Distributor commercial sink product ranges

OEM / ODM Sliding-Door Sink Cabinet Development

For distributor and project orders, the cabinet can be developed around the buyer's sink layout and installation conditions rather than copied from one catalog photograph.

Customization can include:

• Overall cabinet dimensions
• Sink bowl dimensions and depth
• Single- or multi-bowl layout according to feasible cabinet width
• Sliding-door panel width and quantity
• Internal shelf configuration
• Backsplash dimensions
• Faucet and drain openings
• Rear-panel and service-access arrangement
• Stainless steel grade
• Actual thickness by component
• KD connection structure
• Adjustable feet
• Selected packaging and private-label requirements

For drawing-based cabinet development and commercial kitchen equipment programs, visit SENFON OEM/ODM Customization Services.

Export Packing Considerations

Sliding-door cabinets require packing protection not only for the stainless steel surfaces but also for the door panels, tracks and KD connection components.

The packing plan should identify and protect:

• Sink top and backsplash
• Sliding doors
• Door tracks and front frame
• Side and bottom panels
• Internal shelf if supplied
• Feet and fittings
• Assembly hardware

For repeat distributor orders, component labeling and assembly identification can also be coordinated to make installation clearer after delivery.

Information Required for an Accurate Quote

1. Overall cabinet length × depth × finished height
2. Sink bowl quantity
3. Internal bowl length × width × depth
4. Deep-drawn or custom welded bowl preference if specified
5. Sliding-door quantity
6. Required clear cabinet opening
7. Internal shelf or open plumbing-space requirement
8. Backsplash height
9. Faucet-hole layout
10. Drain outlet size and position
11. Stainless steel grade
12. Thickness or project structural requirement
13. KD or other structural requirement
14. Order quantity
15. Destination country or project
16. Dimensioned drawing or reference photo if available

Sliding Door Sink Cabinet FAQ

1. Why use sliding doors on a commercial sink cabinet?

Sliding doors do not swing outward into the aisle, making them useful where the sink cabinet is installed in a relatively narrow commercial kitchen equipment line.

2. Is this the same as SENFON's custom sink cabinet page?

No. This page focuses specifically on a sliding-door cabinet and its aisle, door-track, plumbing and KD requirements. The Custom Stainless Steel Sink Cabinet Unit covers a wider range of hinged doors, sliding doors, multiple bowl configurations and project-specific cabinet structures.

3. Can the sink cabinet use a deep-drawn bowl?

Yes. Existing deep-drawn bowl sizes can be reviewed when they match the required cabinet and sink dimensions.

4. Can a custom welded bowl be used?

Yes. A custom welded bowl can be reviewed when the required dimensions or depth fall outside the available deep-drawn mold range.

5. Can an internal shelf be added?

Yes, but the shelf should be designed around the drain, trap and water-supply components. Partial, removable or customized shelving may be more practical than a full-width shelf.

6. Can the cabinet hide all plumbing?

The cabinet can conceal much of the lower plumbing area, but sufficient service access must remain available for drains, traps, valves and maintenance.

7. Can the door track be cleaned?

The track should remain accessible for routine cleaning. Exact access and door-removal details depend on the approved sliding-door structure.

8. Is a KD structure suitable for export orders?

A KD structure can reduce occupied shipping volume when the cabinet is designed for reliable assembly. The final construction and packing should be confirmed according to cabinet size and project requirements.

9. Does the cabinet need to be level after assembly?

Yes. Leveling and frame alignment are important for countertop installation, drainage and smooth sliding-door movement.

10. Can the backsplash and faucet holes be customized?

Yes. Backsplash height, faucet-hole diameter and faucet position can be manufactured according to the approved drawing.

11. Can SENFON manufacture this cabinet from our kitchen layout?

Yes. Buyers can provide cabinet dimensions, sink layout, plumbing positions, door requirements and adjacent-equipment dimensions for project review.

12. What information should we provide first?

Start with overall dimensions, bowl size, sliding-door quantity, plumbing arrangement, internal storage requirement, backsplash, material, quantity and destination.

Related Sink Cabinets, Components & Technical Guides

• Custom Stainless Steel Sink Cabinet Unit – broader sink cabinet platform for different bowl quantities, sliding or hinged doors and customized cabinet structures.
• Commercial Stainless Steel Sinks & Sink Tables – compare sink cabinets, open sink tables, sink tops, bowls and compartment configurations.
• Commercial Deep-Drawn Stainless Steel Sink Bowl – standard molded bowl options for repeat sink production.
• Custom Welded Stainless Steel Sink Bowl – non-standard bowl dimensions and deeper project-specific fabrication.
• KD Sliding Door Cabinet Assembly Guide – assembly and sliding-door alignment reference for KD stainless steel cabinets.
• Commercial Worktable Dimensions & Project Specification Guide – coordinate sink cabinet dimensions with adjacent stainless steel equipment.
• OEM/ODM Customization Services – send drawings, kitchen layouts and distributor specifications for custom production.

Request a Sliding Door Sink Cabinet Quote

If you are sourcing a commercial stainless steel sink cabinet with sliding doors, send SENFON the cabinet dimensions, sink bowl specification, door quantity, internal storage and plumbing requirements, backsplash, faucet and drain layout, material, quantity and destination.

A dimensioned drawing is particularly useful when the cabinet must align with surrounding worktables, dish tables or other commercial kitchen equipment.

Send Your Sink Cabinet Requirements →
