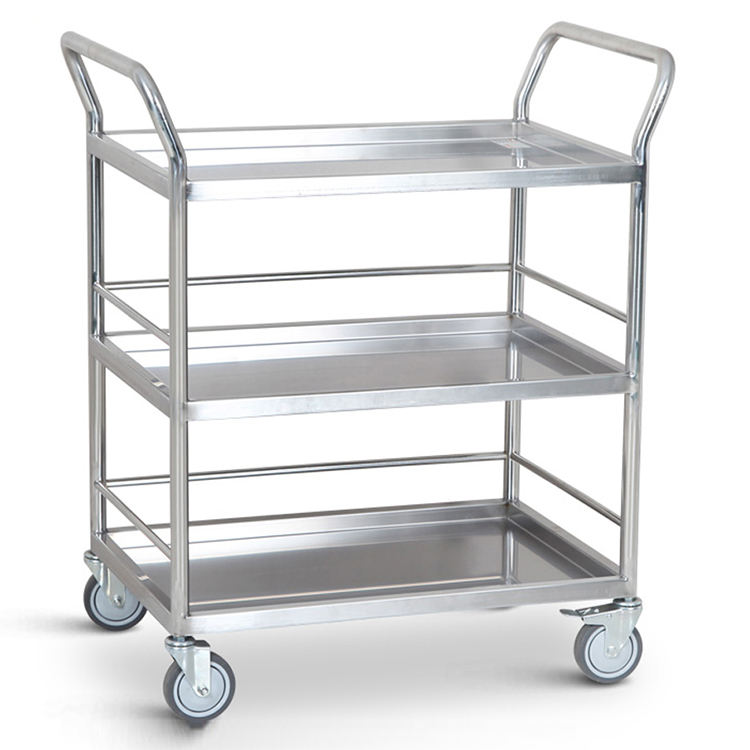

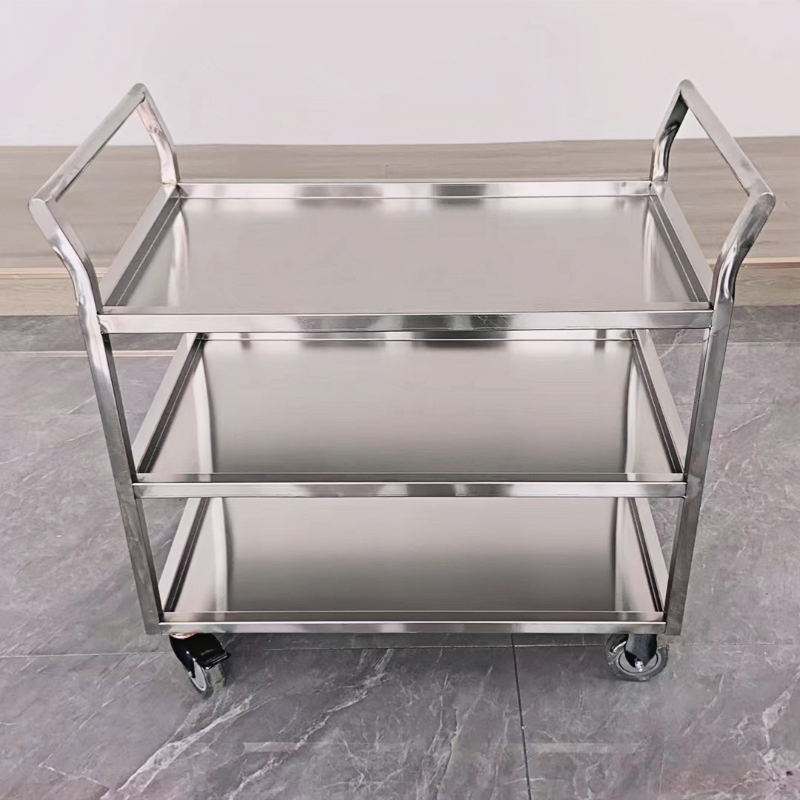

Commercial 3-Tier Stainless Steel Guardrail Trolley
This 3-tier stainless steel guardrail trolley uses recessed tray-style shelves, raised edges and end rails to provide more containment than an open flat-shelf cart. SENFON manufactures custom dimensions, shelf clearance, rail height, material, actual thickness and castor configuration for B2B projects.
- Three recessed tray-style shelves
- Raised edges for item containment
- Guardrails at both ends
- Dual-end handling frames
- Castor and brake options by route
PRODUCT DETAILS
Specifications, Options & Buying Information
The Commercial 3-Tier Stainless Steel Guardrail Trolley is designed for B2B buyers who need more shelf-level containment than a conventional open service trolley. Three recessed tray-style shelves use raised edges, while guardrails at the end frames provide additional containment around compatible tableware, containers, trays and service items.
Guardrails and raised edges can reduce open shelf exposure, but they do not guarantee that every item will remain contained under every operating condition. Buyers should confirm transported-item dimensions, centre of gravity, shelf clearances, rail height/openings, access direction, working load, route, floor condition and stopping requirements before quotation.
This trolley belongs to SENFON's Commercial Stainless Steel Carts & Utility Trolleys range.
Product Highlights
- Three recessed tray-style stainless steel shelves
- Raised shelf edges for additional item containment
- Guardrails integrated with both end frames
- Dual-end handling structure
- Custom shelf clearance and rail dimensions
- Castor diameter, wheel material, swivel and brake pattern reviewed by route
- Working load and distribution confirmed by shelf and complete trolley structure
- B2B dimensions, material, thickness and packing customized by approved specification
Configurations and Order-Specific Options
| Specification | Configuration and Confirmation Basis |
|---|---|
| Shelf count | Three recessed tray-style shelves |
| Containment | Raised shelf edges plus end guardrails; dimensions reviewed for the transported items |
| Handling | Dual-end frame / handle arrangement |
| Clear spacing | Specified according to trays, tableware, containers or other transported items |
| Castors | Diameter, wheel material, swivel and brake pattern selected for route and working load |
| Load input | Working load and distribution for each shelf plus complete trolley conditions |
| Material | SUS201 or SUS304 are common quotation options; SUS316 or SUS430 can be reviewed when specifically requested and suitable for the application |
| Actual thickness | Specified separately for sheet, tray, tube, frame, bracket or other relevant components |
Guardrail Trolley vs. Standard Service Trolley vs. Side-Rail Platform Cart
These products can all move items through commercial kitchens, but their loading structures are different.
| Trolley Type | Best Starting Point | Containment Logic |
|---|---|---|
| 3-Tier Guardrail Trolley | Tableware, containers and service items that benefit from raised shelf edges and end rails | Containment is provided at each shelf level |
| 3-Tier Catering & Service Trolley | Routine tray, dish and foodservice transport with more open access | Tray-style shelves and raised edges without the same guardrail emphasis |
| Stock Pot / Side-Rail Platform Trolley | Large vessel or single-platform transport | Containment is concentrated around one lower platform or vessel support structure |
For a detailed comparison of trolleys with side rails and stock-pot structures, read the Stainless Steel Trolleys with Sides & Stock Pot Trolleys Guide. For broader service and catering trolley selection, use the Commercial Stainless Steel Trolley Buying Guide.
Recessed Tray-Style Shelves and Raised Edges
The three tray-style shelves provide separate loading levels for tableware, trays, containers and service items. Raised shelf edges can help limit sideways movement of compatible items during normal trolley operation while keeping the shelves relatively accessible for loading and unloading.
Edge depth should be selected according to the stored items and cleaning requirements. Deeper edges are not automatically better because they can affect loading access. The approved drawing should define shelf dimensions, edge depth and usable clearances.
Guardrail Height, Openings and Access Direction
Guardrails should be evaluated against the actual item dimensions. Rail height and spacing that work for large containers may not retain smaller items, and denser rails may reduce access or cleaning convenience.
Buyers should confirm whether loading and unloading are required from one side, both sides or from the trolley ends. The access requirement affects the rail arrangement and should be resolved before production.
Shelf Clearance and Usable Dimensions
Overall trolley height does not define usable shelf clearance. Buyers should provide the dimensions of trays, plates, containers or other items to be transported and confirm the clear vertical space required between each shelf.
For repeat distributor programs, the approved usable dimensions should be recorded in the quotation or drawing so later orders do not rely on general product photographs.
Working Load and Structural Review
Working load cannot be inferred from labels such as commercial, heavy duty or welded. Shelf span, tray structure, reinforcement, frame connections, handle structure, castor capacity and load distribution need to be reviewed as one system.
Buyers should state the expected load per shelf and identify any concentrated load. A single dense container placed near the middle of one tray creates a different condition from multiple lighter items distributed across the shelf area.
Castors, Brakes and Route Conditions
Castor selection should follow the floor, load, route and operating environment. Confirm castor diameter, wheel material, swivel pattern, brake arrangement, doorway thresholds, turning space and noise requirement.
More brakes are not automatically better for every workflow. The final pattern should support safe parking and practical steering for the intended route.
Material and Actual Thickness
SENFON can review SUS201, SUS304, SUS316 or SUS430 by component and application. SUS201 and SUS304 are common quotation options for commercial trolley projects, while other grades should be specified when the environment or buyer standard requires them.
Actual thickness should be quoted by relevant component. Tray panels, tubes, frames, brackets and other parts can require different specifications. The complete trolley should not be represented by one generic thickness unless that is genuinely the approved construction.
Construction, Assembly and Export Packing
Welded, modular or knock-down construction can be reviewed according to trolley dimensions, required rigidity, assembly preference and shipping strategy. A KD structure should only be used when the joint design remains suitable for the intended commercial use.
Packing is confirmed after finished size, quantity, castor protection, assembly format and shipment method are known. Suitable products can use cartons with internal protection, while wooden frames or crates can be reviewed for larger units, LCL shipments or higher transport risk.
Recommended Applications
- restaurant and hotel service areas
- catering and banquet operations
- central kitchens and institutional foodservice
- tableware and container transport
- back-of-house foodservice handling
- projects requiring additional shelf-edge containment
B2B RFQ Checklist
- transported items and their dimensions
- overall trolley dimensions
- usable shelf length × width
- clear spacing between shelves
- raised-edge depth
- guardrail height, spacing and access direction
- working load per shelf and load distribution
- material grade and actual thickness by relevant component
- castor diameter, wheel material, swivel and brake requirement
- welded, modular or KD preference where applicable
- quantity, packing and destination
For project-specific dimensions, rail layouts or repeat distributor specifications, SENFON can review the design through OEM/ODM Customization Services.
Frequently Asked Questions
Do guardrails prevent every item from falling?
No. Rail height, openings, item dimensions, centre of gravity, trolley movement and loading practice must still be evaluated.
Can shelf edge depth be customized?
Yes. Edge depth can be reviewed according to the transported items, loading access and cleaning requirements.
Can guardrail height and spacing be customized?
Yes. The rail layout can be developed around the item dimensions and required access side.
Can shelf clearance be customized?
Yes. Provide the height of the trays, tableware or containers so usable vertical clearance can be defined before production.
Can brakes be fitted according to the buyer's preferred pattern?
Yes. The final swivel and brake arrangement should be reviewed against the floor, route and working load.
How should trolley load capacity be specified?
State the required working load per shelf and whether the load is distributed or concentrated. SENFON can then review the shelf structure, frame, connections and castors against the requirement.
Related Trolley Products and Buyer Resources
- Commercial Stainless Steel Carts & Utility Trolleys
- Stainless Steel Trolleys with Sides & Stock Pot Trolleys Guide
- Commercial Stainless Steel Trolley Buying Guide
- 3-Tier Stainless Steel Catering & Service Trolley
- Stainless Steel Stock Pot Trolley & Platform Cart with Side Rails
- 2-Tier Stainless Steel Utility Cart
- OEM/ODM Customization Services
- Factory & Certifications
- Request a B2B Quotation
Request a B2B Guardrail Trolley Quote
Send SENFON the transported items, usable shelf dimensions, shelf clearance, raised-edge depth, guardrail height/openings, access direction, working load and distribution, route/floor conditions, castors, material, actual thickness, quantity, packing and destination.
