Commercial Stainless Steel Wall Cabinet with Custom Doors (KD Design)
This wall-mounted stainless steel cabinet adds overhead storage without using floor area. SENFON supports importers and project buyers with custom dimensions, shelf spacing, sliding or hinged doors, solid or vision panels, mounting details, SUS201 or SUS304, actual thickness and export-oriented KD construction.
- Wall-mounted overhead storage
- Sliding or hinged door options
- Solid or vision-panel doors
- Configurable internal shelves
- Custom mounting details
- KD export design available
PRODUCT DETAILS
Specifications, Options & Buying Information
SENFON manufactures commercial stainless steel wall cabinets with sliding, hinged, solid or approved vision-panel door configurations. Cabinet size and shelf layout are customized from the available wall zone, stored items and safe reach, while the project installer verifies the actual wall substrate and anchors. Buyers should include mounting height, fixing centres, door motion, internal clearances, material, actual thickness and KD or assembled delivery in the RFQ.
Wall-Cabinet Specification and Site Inputs
| Item | What to Confirm |
|---|---|
| Installation | Wall-mounted; final mounting method coordinated with the project |
| Door options | Sliding, hinged, solid or transparent vision-panel configurations |
| Internal storage | Custom shelf quantity, spacing and access |
| Dimensions | Width, depth and height matched to wall space and reach |
| Material | Stainless steel grade and finish confirmed by component |
| Mounting points | Bracket or fixing positions shown on the approved drawing |
| Construction | Assembled or knock-down design according to project needs |
| Packing | Protected corners, doors, panels and hardware for export |
Door and Access Matrix for the Core Wall Cabinet
This core page owns the general commercial wall-cabinet intent. Transparent-panel and lighting details remain narrower options and are developed on the dedicated vision-panel cabinet page.
| Configuration point | Available reference configuration | Confirm before production |
|---|---|---|

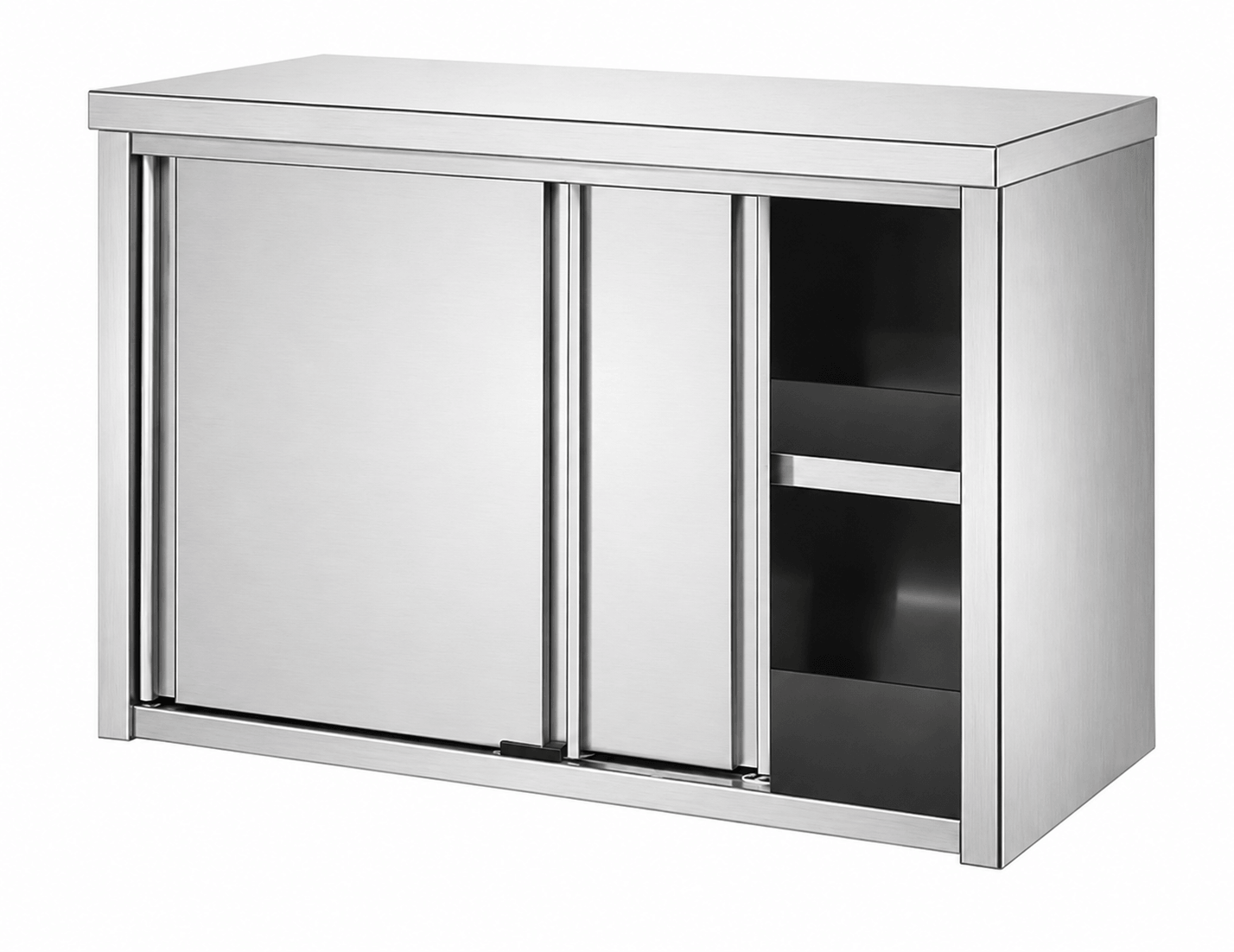

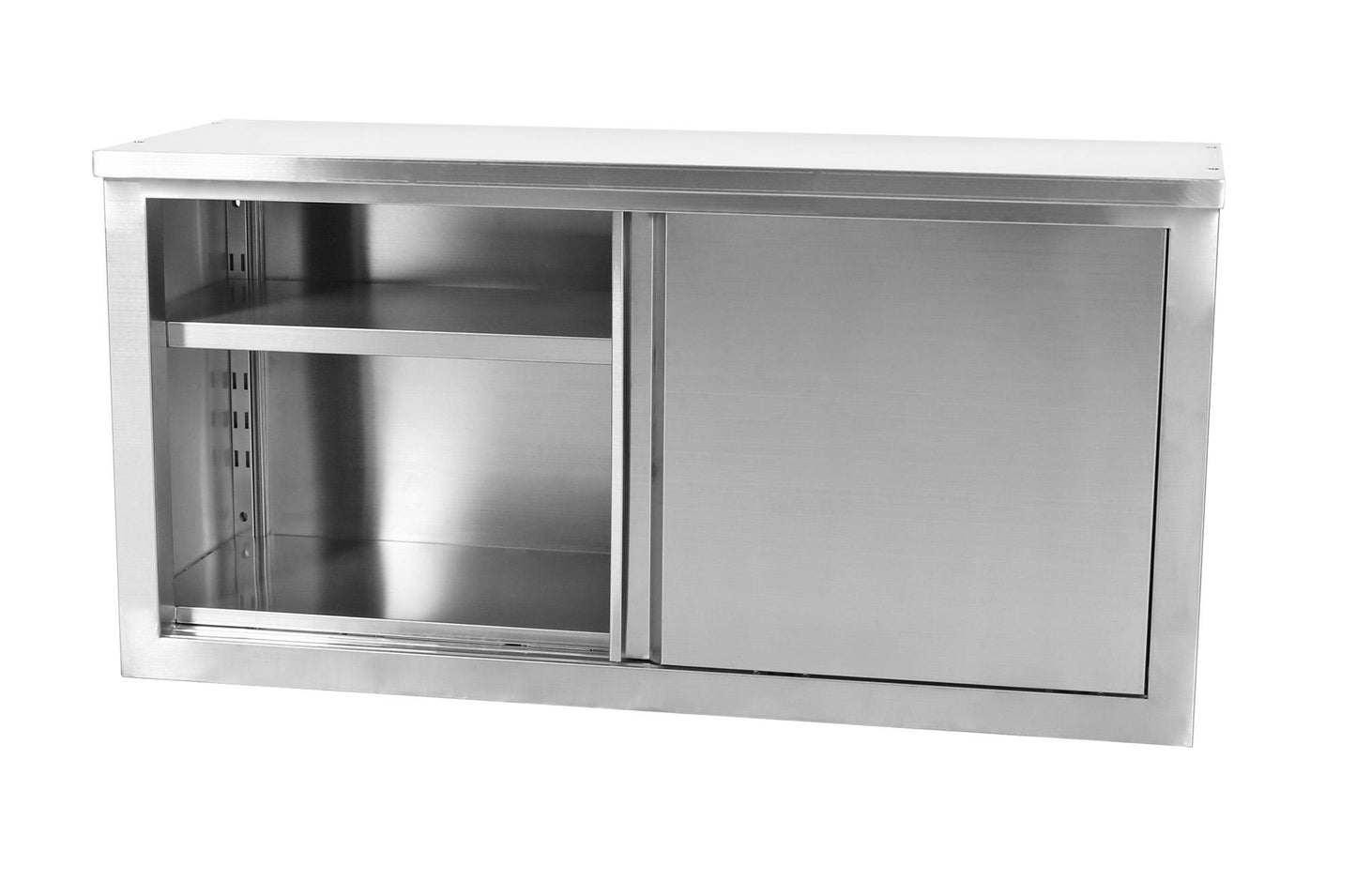

| Stainless sliding doors | Stay within the cabinet footprint | Track access, usable opening and mounting height |

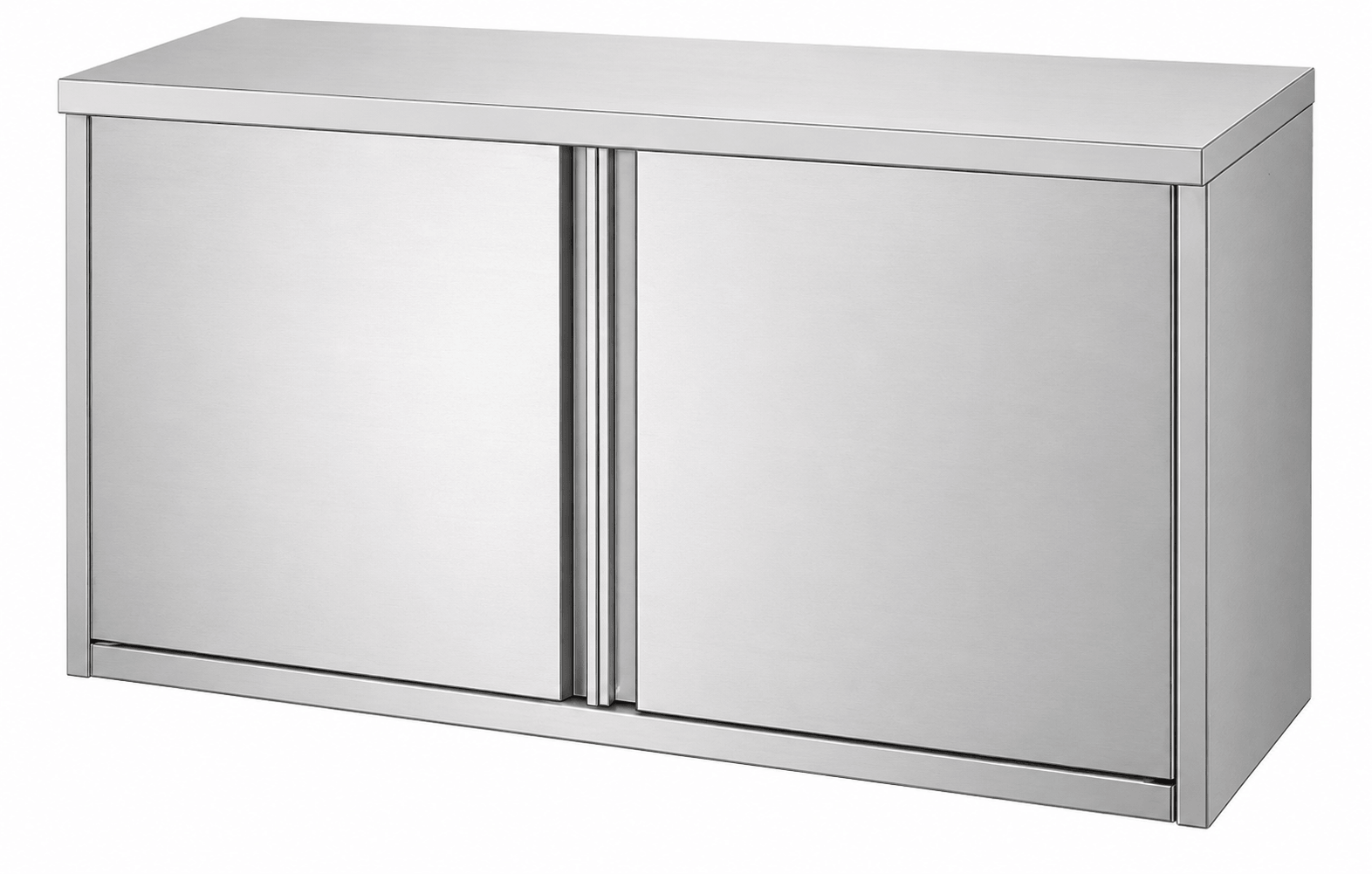

| Stainless hinged doors | Provide a wider opening but require a protected swing zone | Hinge side, opening angle and aisle conflict |

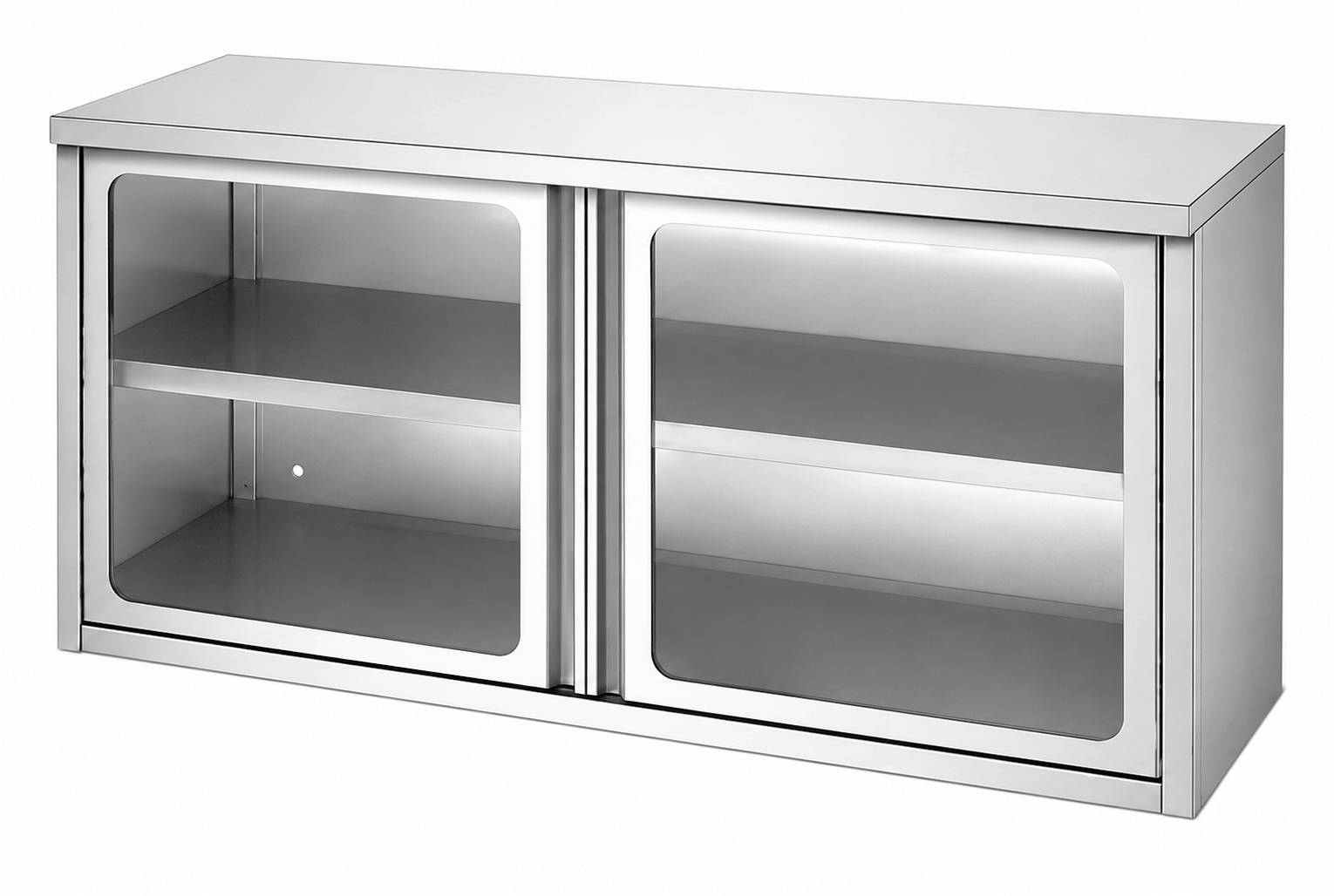

| Transparent-panel doors | Sliding or hinged references are publicly shown | Actual panel material, thickness, edge support and replacement method |

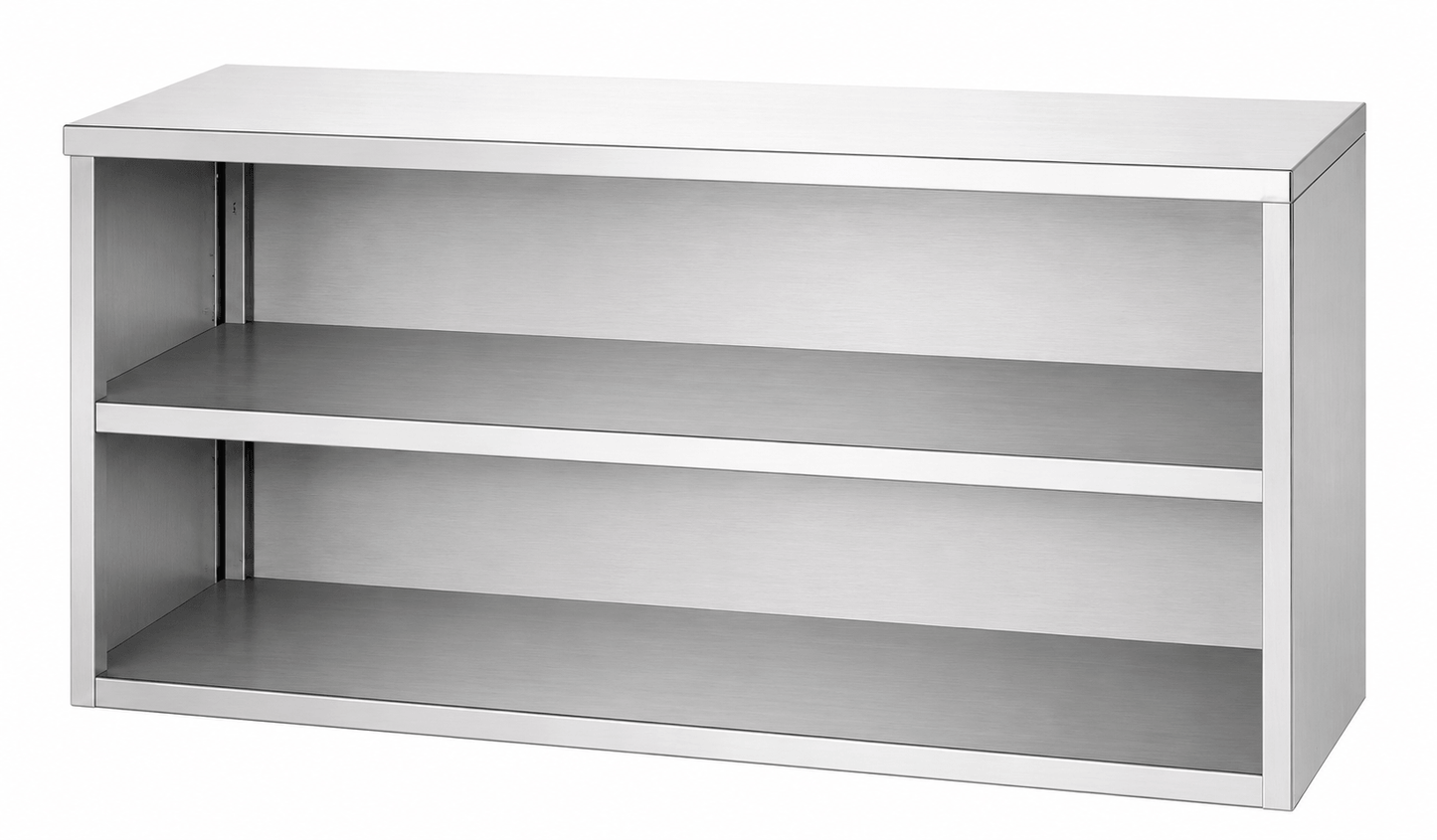

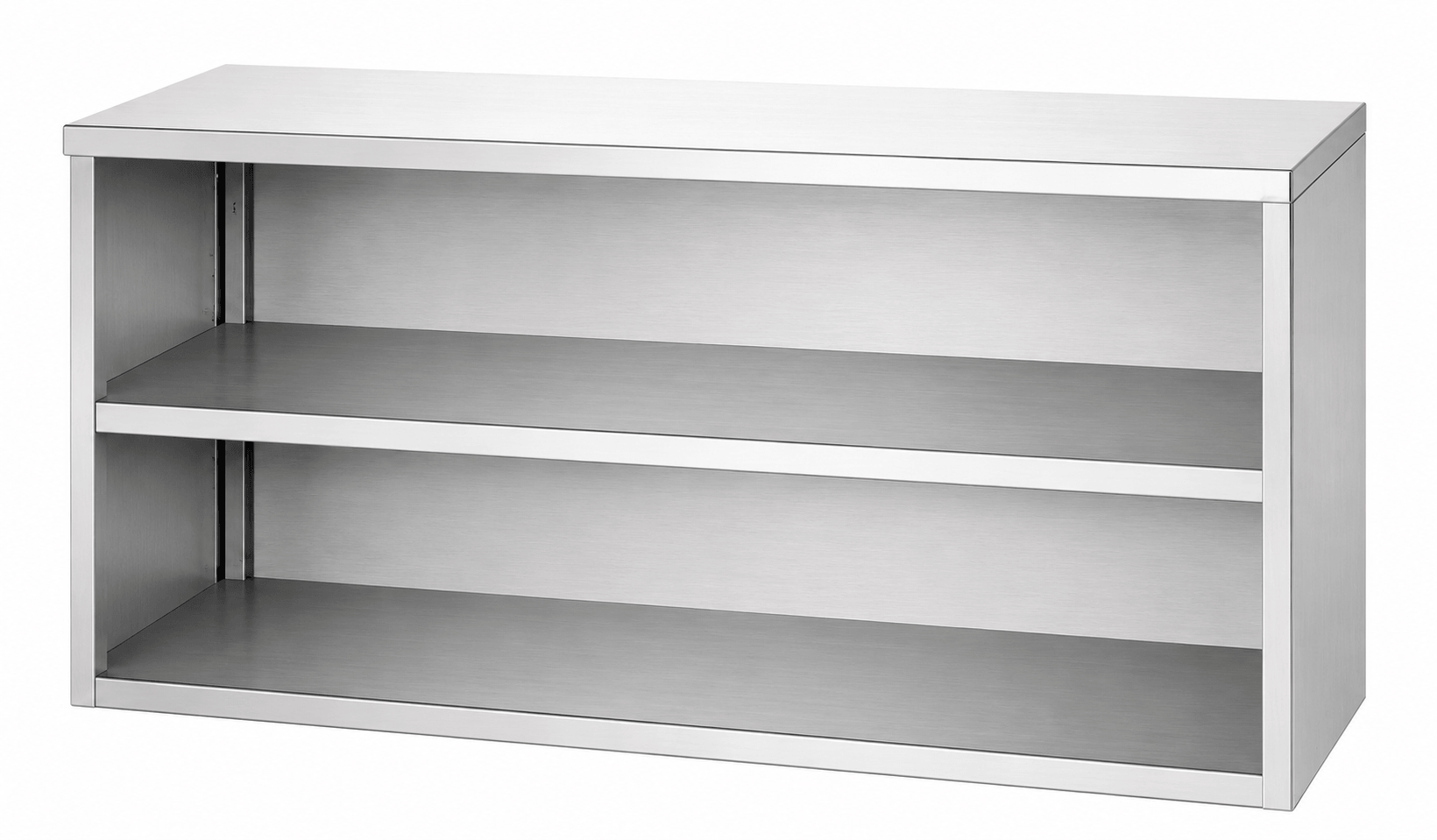

| Open or perforated front | Fast access or ventilation-led variants | Stored items, dust exposure and cleaning requirement |
How to Plan a Commercial Wall Cabinet
Wall Condition and Fixings
Provide wall type, substrate, internal services and installation responsibility. Anchors and load capacity must be confirmed by the project installer for the actual wall.
Sliding or Hinged Doors
Sliding doors preserve aisle clearance but expose part of the cabinet at a time. Hinged doors can provide wider access but require swing space.
Reach and Clearance
Confirm finished mounting height, cabinet depth and the equipment below so staff can reach contents without obstructing work.
KD Export Design
A knock-down cabinet can reduce packing volume, but panel joints, squareness, door alignment and installation instructions must be approved before production.
Installation Geometry Comes Before Cabinet Capacity
A wall cabinet is selected from the available wall zone, not simply from the amount of storage requested. The project drawing should show the finished floor, worktop or equipment below, the mounting height, cabinet depth and any ceiling, duct, pipe, socket or service conflict. A cabinet that is too deep or too high may reduce visibility of the work surface and make the upper shelf impractical even if it fits the wall dimension.
The fixing system cannot be finalized from a product photo. Solid masonry, concrete, stud partitions and insulated panels require different site decisions. SENFON can provide cabinet fixing positions and product-side brackets in the approved drawing, while the project installer must verify the actual substrate, suitable anchors and allowable load. If backing plates or structural supports are required inside the wall, they should be resolved before installation rather than after the cabinet arrives.
Select Doors by Reach, Opening Width and Aisle Conditions
Sliding doors preserve forward clearance but only reveal part of the interior at once. Hinged doors can expose a larger opening but need a safe swing zone. Solid panels conceal contents; an approved glass or alternative vision panel allows visual stock checks but changes door weight, edge protection and cleaning requirements. The purchase specification should name the actual panel material instead of using “glass door” as a generic description.
Shelf spacing should be based on the tallest stored item plus hand clearance. The upper shelf may need a shallower usable zone because of reach limitations. Buyers should provide the planned contents, shelf quantity and expected load rather than request equal shelf spacing by default. The wall-mounted stainless steel cabinet assembly guide is the relevant installation-support resource for this structure.
KD Panel Control and Packing
When a wall cabinet is supplied knock-down, panel identification, diagonal squareness, door-track alignment and fixing-hole positions need to be controlled as one system. The packed set should separate panels from hardware, protect visible finishes and keep doors from rubbing during transit. Material grade and actual thickness remain component-level quotation items; no universal load or anchor capacity is claimed without the wall and complete installation being reviewed.
Compare Wall-Cabinet Offers on Installable Details
A meaningful quotation should distinguish the cabinet supplied by SENFON from the site work supplied by the installer. Check whether brackets, rails, loose anchors, shelves, doors and assembly hardware are included, and ensure the drawing shows fixing centres. Compare internal clear dimensions and usable door opening, not only the external width. If vision panels or lighting are requested, identify them as separate systems with approved materials.
For a repeat project range, keep one controlled installation drawing for each wall substrate or fixing arrangement. Do not reuse an anchor schedule from another building without site verification. Product images can demonstrate appearance, but only the approved wall and cabinet drawings establish a safe installation scope.
What the Wall-Cabinet RFQ Must Include
- Cabinet width × depth × height
- Finished mounting height and wall substrate
- Door type, panel type and opening direction
- Shelf quantity, spacing and expected stored load
- Material grade, finish and actual thickness
- Assembled or KD preference, quantity and destination
Review the wall-mounted cabinet assembly guide with the site installer. The guide does not replace verification of the actual wall substrate and anchors.
Wall-Side Verification Before Cabinet Approval
Product drawings can define the cabinet and fixing zones, but the actual wall substrate and anchors remain a site responsibility unless the contract explicitly includes them.
- Confirm wall construction, service locations, mounting height and the required fixing zone.
- Check reach to each shelf and door without assuming the external height is usable storage.
- Verify door travel, shelf retention and cabinet level after installation.
- Identify the supplied mounting parts separately from site-selected anchors.
Flat-Pack Protection for a Wall Cabinet
When a KD structure is approved, flat panels, door faces and long tracks need separated surface protection and clear part labels. Glass or other vision panels require their own edge and impact protection. Packed dimensions must follow the approved panel division rather than a generic cabinet estimate.
Wall-Cabinet Installation Questions
Are wall anchors included?
The quotation must state this clearly. Anchor selection depends on the actual wall substrate and local installation requirements.
Can the cabinet use sliding or hinged doors?
Yes. The correct option depends on access needs, aisle clearance and the required opening width.
Can the wall cabinet be shipped knock-down?
A KD design can be reviewed for export when panel joints, mounting details and door alignment are confirmed.
Wall-Cabinet Assembly and Installation Scope
SENFON can check supplied panels, shelves, doors, connections and cabinet squareness against the approved drawing. The local installer must select and verify anchors from the actual wall substrate, fixing positions and required site load. A wall cabinet is not released from product images alone.
