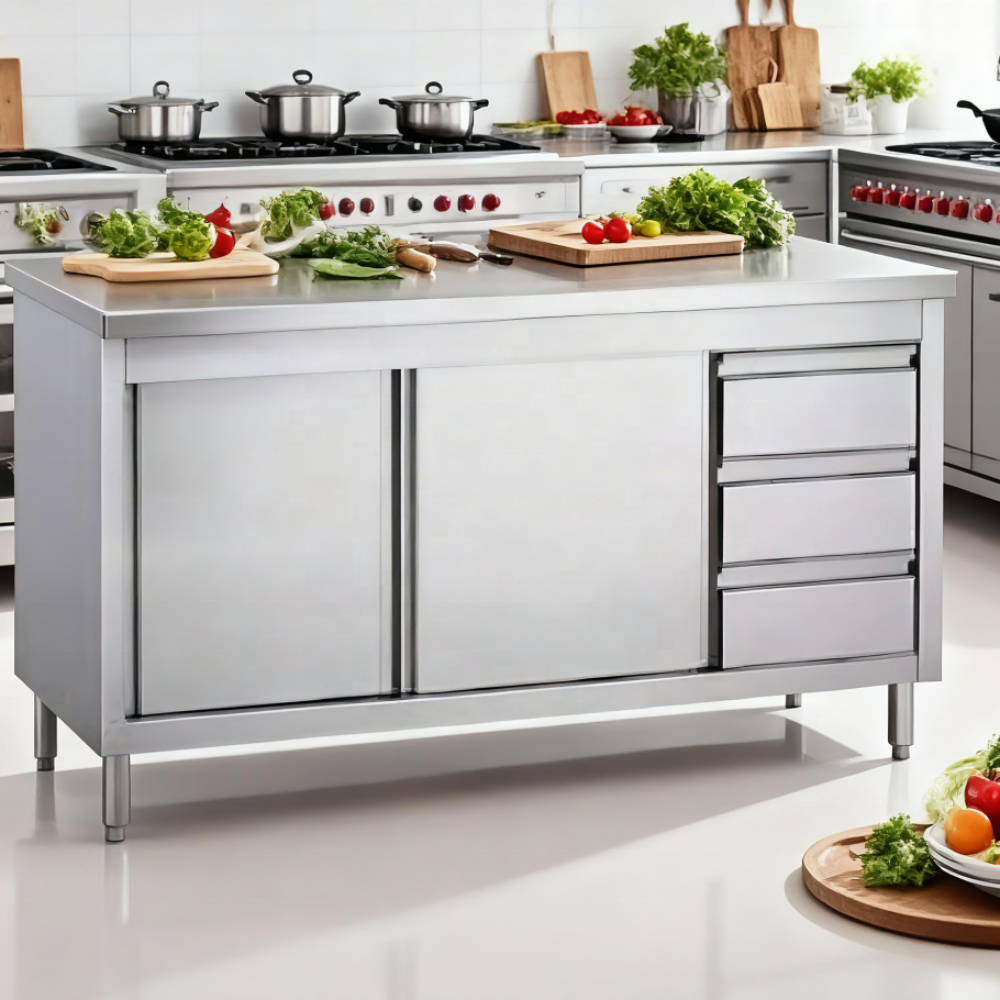

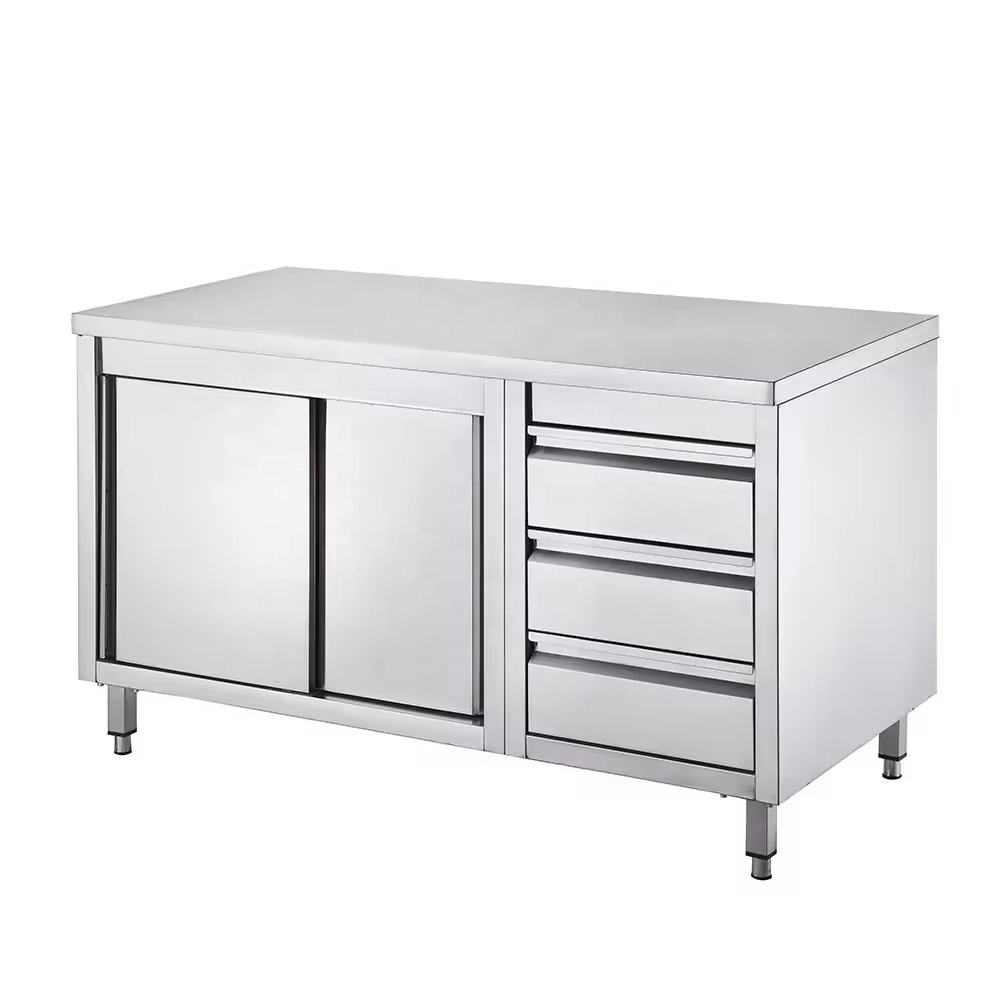

Commercial Stainless Steel Work Cabinet with Drawers & Sliding Doors

Drawer-and-Door Cabinet Specification

Drawer-Bank and Sliding-Door Layouts

The available reference commonly uses three vertical drawers beside a two-door storage zone. The drawer bank may be placed on the left or right, but each orientation requires a separate approved drawing.

Plan the Drawer and Cabinet Zones

Drawer Orientation

Place the drawer bank on the operator side that best supports the workflow and does not conflict with adjacent equipment.

Drawer Contents

Provide the utensil sizes and weights so drawer width, depth, height, slides and reinforcement can be selected realistically.

Cabinet Access

Confirm sliding-door opening width and internal shelf clearances for the larger stored items.

Worktop Use

State whether the top supports preparation only or countertop equipment, and provide expected loads for reinforcement review.

Divide the Cabinet into Fast- and Bulk-Access Zones

Drawers suit utensils, tools and smaller items that operators need repeatedly during a shift. The sliding-door compartment suits larger containers or reserve stock. The buyer should list representative contents for both zones and identify the main operator side. This allows the drawer bank to be placed left or right and prevents the most frequently used items from being separated from the working position.

External drawer-front size is not the same as internal usable size. Slides, box construction, stops and handle details reduce the clear opening. Provide the largest item for each drawer and whether dividers are required. For the cabinet zone, state shelf quantity, shelf spacing and the largest item that must pass through the sliding-door opening. These details should appear on the approved drawing rather than be inferred from the product name.

Prevent Interference Between Drawers and Sliding Doors

The drawer bank, door track, internal shelf and structural partitions must be coordinated. A wide drawer opened beside a sliding panel can conflict with an operator or adjacent equipment even when both mechanisms function individually. The design review should check simultaneous use, handle projection and the service path for removing a drawer or door panel.

If the cabinet will be installed against a wall, confirm the backsplash and any side return. If it joins another worktable or sink, coordinate finished height, top depth and front alignment. Countertop equipment must be shown with its footprint and defined load so the worktop support is reviewed around the cabinet openings rather than copied from a plain table.

Construction and Shipment of a Multi-Mechanism Cabinet

Material grade, finish and actual thickness should be listed for the worktop, cabinet body, shelves, doors and drawers. A welded body may simplify factory alignment, while a modular or KD version can support export packing goals but creates additional on-site checks for squareness, slide movement and door travel. Packing must restrain each moving component and protect the visible fronts. The final choice should follow the buyer's assembly capability and shipping method, not a generic space-saving claim.

Use a Component Schedule for Quotation Comparison

Ask each supplier to identify drawer count, internal usable sizes, slide type, handle detail, sliding-door opening, shelf quantity, top reinforcement and actual thickness by component. An overall grade and dimension do not reveal these differences. If a load requirement exists, define the contents and load location for the top, each drawer and the cabinet shelf separately; do not accept one unqualified capacity figure for the complete unit.

For repeat wholesale orders, freeze left/right drawer orientation and door direction under separate item codes. This avoids receiving mirrored products under one description and makes replacement parts, packing lists and installation instructions easier to control.

When samples are approved, record drawer movement, door overlap and visible finish with photographs linked to the drawing revision. This provides a practical quality reference without turning a subjective “smooth operation” phrase into an unsupported universal promise.

RFQ Inputs for Drawer and Sliding-Door Layouts

• Overall dimensions and backsplash requirements
• Drawer quantity, internal sizes and left/right location
• Handle and drawer-slide requirements
• Sliding-door opening and internal shelf layout
• Material grade, actual thickness and worktop load
• Quantity, construction, packing and destination

Use the worktable dimensions guide to align the top and backsplash with adjacent equipment; drawer internals still require a product drawing.

Inspect the Drawer and Door Zones Separately

Drawer operation and cabinet access can conflict even when both mechanisms work independently.

• Load the intended drawer inserts or tools and check usable internal dimensions, slide travel and handle clearance.
• Open drawers and sliding doors in the expected sequence to identify interference.
• Check the welded body for squareness before final door and drawer adjustment.
• Confirm any locks, runners and replacement hardware in the approved component schedule.

Protecting Drawers and Sliding Doors in Transit

For the currently available welded structure, drawers and doors must be restrained so their runners and tracks do not take impact loads. Packing choice depends on finished cabinet size and route; the quotation should state whether hardware remains installed or is packed separately.

Welded Cabinet, Drawer and Door Checks

Cabinet squareness, drawer travel, door-track alignment, internal shelf fit and worktop support are checked as one approved structure. Drawer-slide grade and required load must be named in the quotation; general terms such as heavy duty do not replace usable dimensions, hardware specifications or an agreed acceptance method.

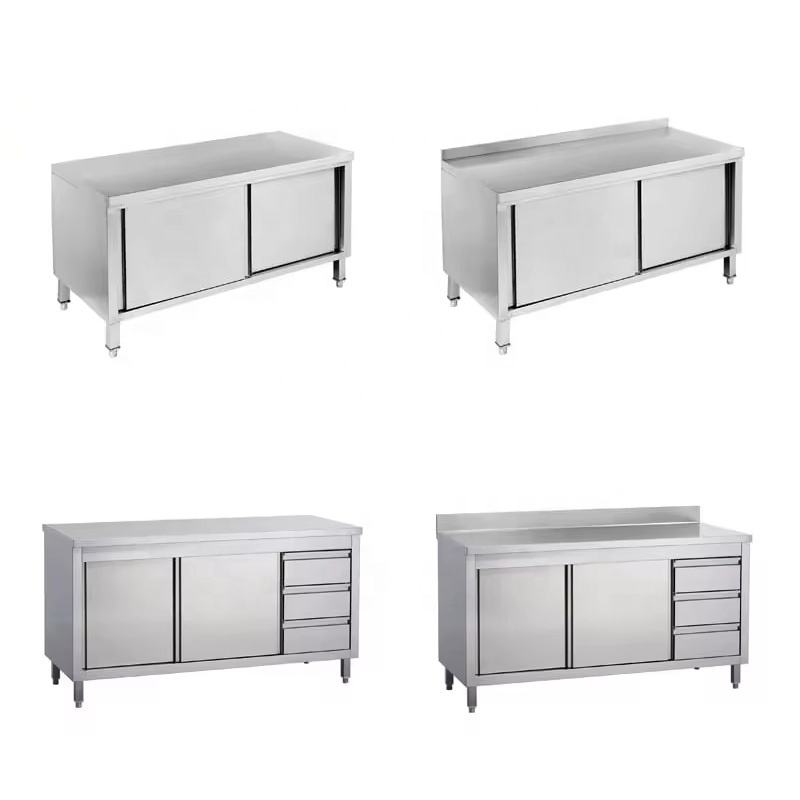

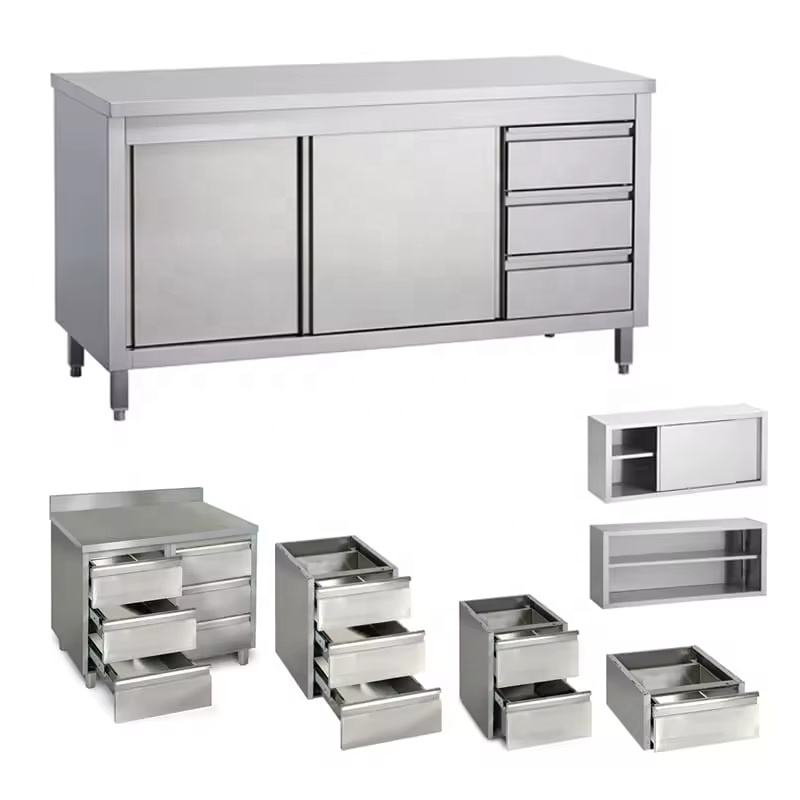

Compare Drawer and Cabinet Layouts

• Stainless Steel Work Cabinet With 3 Drawers And Sliding Doors — use the fixed three-drawer integrated-handle layout.
• Stainless Steel Worktable Cabinet With Sliding Doors — choose cabinet-only storage without drawers.
• Stainless Steel Worktable With 3 Drawers And Over-Shelf — combine three drawers with upper shelving.
