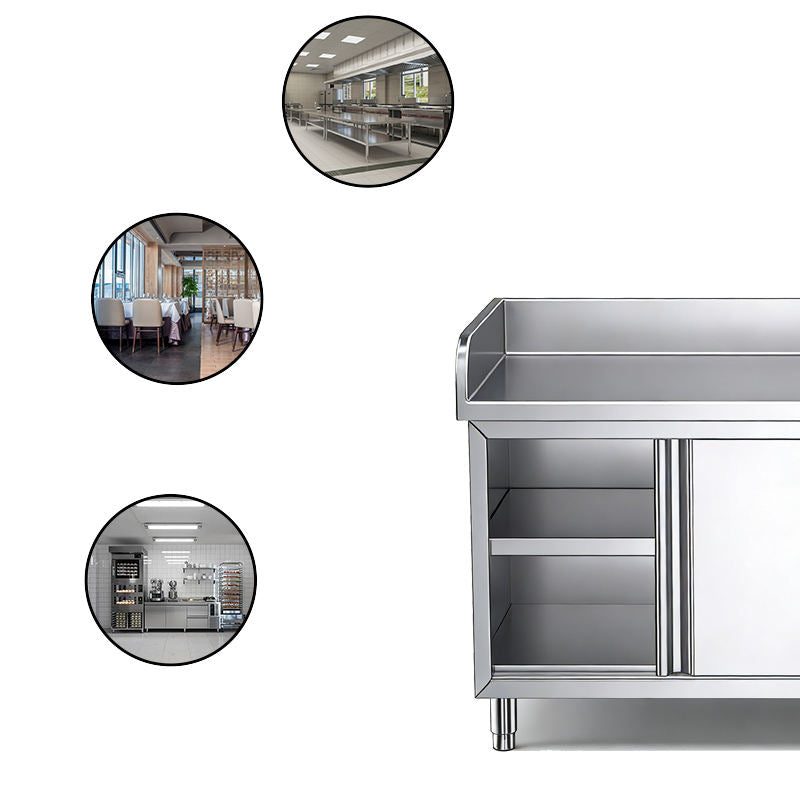

Knock-Down Stainless Steel Work Cabinet with 3-Sided Backsplash
This knock-down stainless steel work cabinet combines enclosed storage with a three-sided backsplash for wall-side or controlled preparation areas. SENFON engineers panel divisions, sliding doors, internal shelves, worktop support, splash corners, dimensions, material, actual thickness, assembly sequence and packing for B2B export projects.
- Three-sided backsplash
- Enclosed sliding-door storage
- Configurable internal shelf

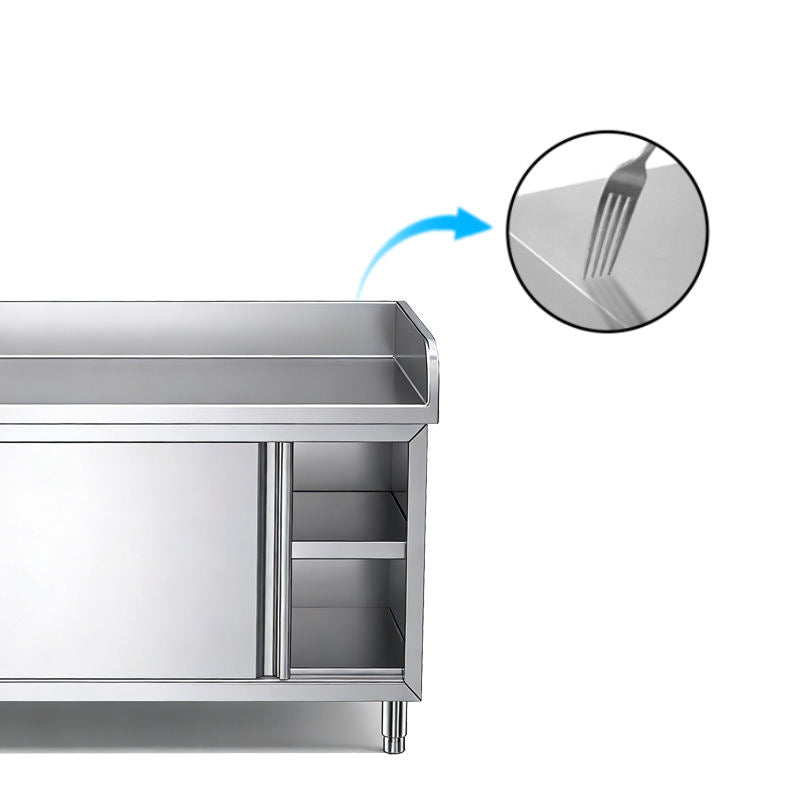

- Reinforced worktop
- Knock-down export construction
PRODUCT DETAILS
Specifications, Options & Buying Information
SENFON manufactures a knock-down stainless steel work cabinet with 3-sided backsplash, sliding doors and internal storage. The modular structure can reduce packed volume compared with the corresponding assembled cabinet; final freight and assembly requirements are calculated from the approved packing drawing. Panel divisions, worktop support, splash corners, cabinet squareness, door alignment, assembly sequence and packed dimensions are controlled on the project drawing.
Large KD Cabinet Specification
| Item | What to Confirm |
|---|---|
| Splash protection | Rear and two side backsplashes with confirmed heights |
| Base storage | Sliding doors and an approved internal shelf layout |
| Worktop | Reinforcement matched to size and intended load |
| KD connections | Panel, base and top joints shown on the drawing |
| Alignment | Door track and cabinet squareness controlled during assembly |
| Packing | Panels and hardware labeled for installation |
Large KD Cabinet with Three-Sided Splash Protection

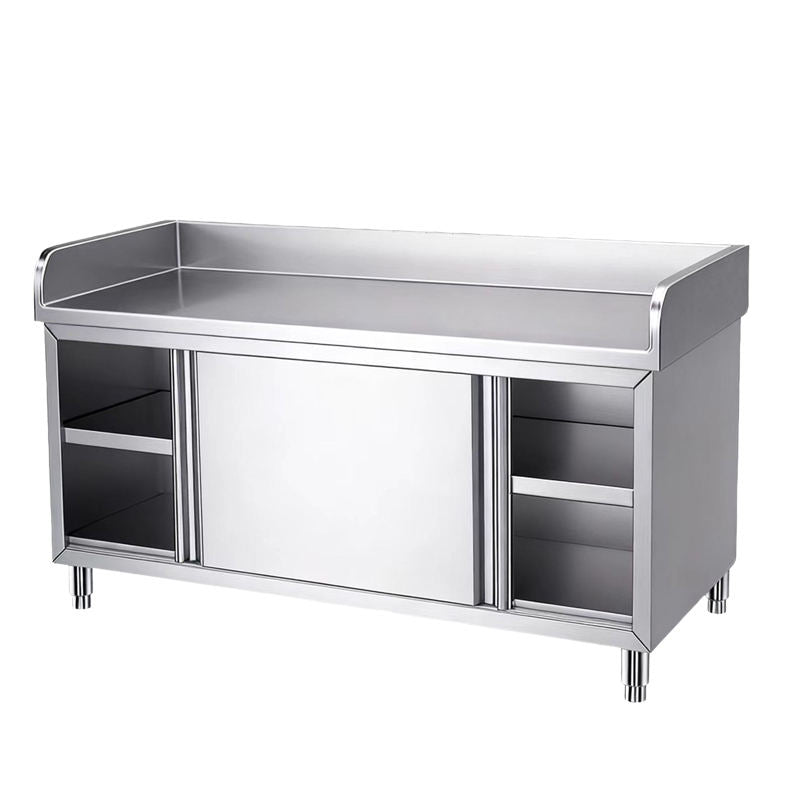

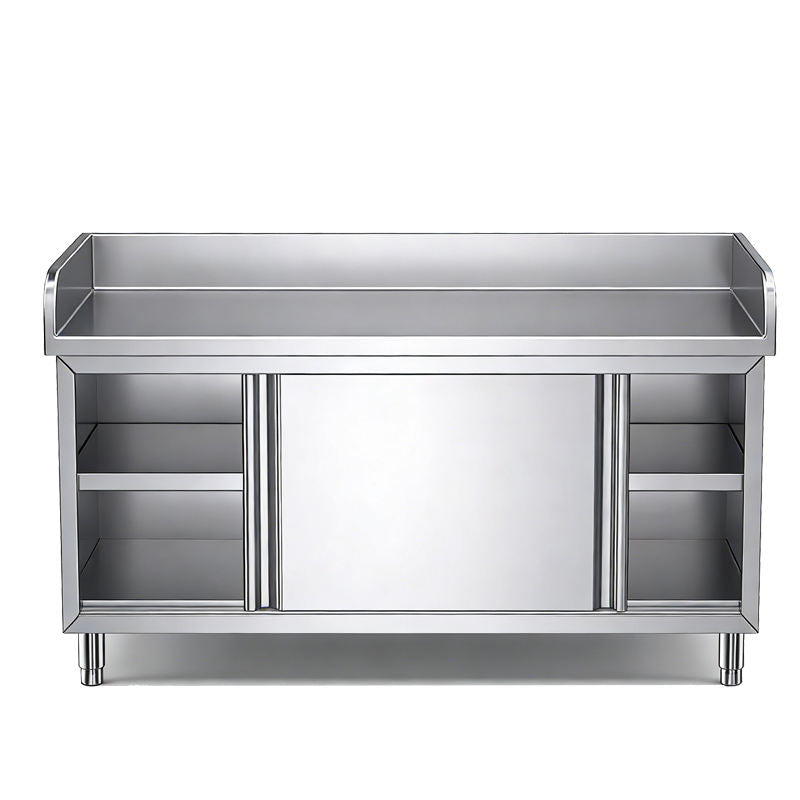

The current reference combines rear and side splashes, sliding doors, an internal middle shelf and a knock-down cabinet body.
| Configuration point | Available reference configuration | Confirm before production |
|---|---|---|
| Splash geometry | Rear plus two side guards | Wall conditions, heights, returns and service cut-outs |
| Front access | Sliding doors | Track length, usable opening and adjustment |
| Interior | Middle shelf | Clear spacing, removability and stored-item load |
| Delivery | Full KD reference | Panel size, site route, assembly sequence and squareness |
Plan the Assembly and Site Route Together
Check Site Access
Confirm doorways, elevators and installation clearances before deciding between larger assembled sections and a more complete KD structure.
Protect Door Alignment
The base must assemble square and level so sliding doors move correctly after installation.
Three-Sided Splash Geometry Must Match the Installation
A rear and two side splashes can protect surrounding surfaces, but they also define how the cabinet meets walls and adjacent equipment. The buyer should provide left and right wall conditions, finished backsplash heights, returns and any cut-outs for services. If only one side meets a wall, a three-sided design may be unnecessary or may obstruct pass-through use.
Large panels are more sensitive to handling, site access and diagonal alignment. Provide lift, doorway and corridor restrictions before choosing assembled or flat-pack delivery. The KD division should create manageable components without placing a joint where it disrupts the worktop, splash corner or door track.
Assemble the Cabinet Before Final Door Adjustment
The base must be level and square before sliding or hinged doors are adjusted. Numbered panels, hardware groups and an approved sequence reduce installation errors. Material grade and actual thickness are stated by panel and top; packing protects long splash edges and moving doors. The approved packing drawing records the actual KD dimensions so the buyer can compare them with the corresponding assembled cabinet shipment.
Drawing Set Needed Before Quotation
- Overall dimensions and site-access limits
- Rear and side backsplash heights
- Door opening and internal shelf layout
- Worktop load and reinforcement
- KD scope, assembly capability, quantity and destination
Use the KD cabinet assembly guide as a process reference, then approve the actual panel split and door-adjustment sequence for this larger model.
Large-Panel and Door-Alignment Checks
A larger cabinet amplifies small errors in panel squareness and floor level.
- Verify panel diagonals before door adjustment.
- Check splash corners and worktop joints against the approved plan.
- Confirm internal shelf support and service access.
- Complete a trial assembly or documented first-piece check for the approved KD revision.
Packing Long Splash Panels and Tracks
Long folded edges, tracks and door panels need dedicated supports and part labels. Packed dimensions for the actual order are recorded after design approval; any KD-versus-assembled comparison uses those documented packages.
Large KD Cabinet Questions
Why use three-sided splash protection?
It can help contain debris or splashes at the rear and side edges when the cabinet is installed against surrounding surfaces.
Can the cabinet arrive fully flat-packed?
The feasible KD scope depends on dimensions, rigidity, door alignment and local assembly capability.
Before production, compare the largest packed panel with container doors, building entrances and the installation team's lifting method so the proposed split is genuinely usable.
KD Cabinet Packing and Assembly Checks
Panel divisions, worktop reinforcement, splash corners, cabinet squareness, door tracks and hardware groups are controlled on the approved drawing. SENFON can trial-assemble the ordered cabinet and record its final packed dimensions. Any freight or rigidity comparison must use the documented KD and assembled configurations for that order.
